| Ref | Part Number | Description |
|---|
| 1 |
33115-090 |
SCREW-HH Price: $13.76 |
| 2 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 3 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 4 |
33028-00 |
NUT-LOCK, NI Price: $1.31 |
| 5 |
33098-00 |
WASHER-FLAT Price: $0.68 |
| 6 |
33115-045 |
SCREW-HH Price: $0.61 |
| 7 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 8 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
1481 |
FITTING-GREASE Price: $4.12 |
| 10 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 11 |
33115-040 |
SCREW-HH Price: $1.22 |
| 12 |
98-5830 |
NUT HEX M10 LH THREAD Price: $1.78 |
| 13 |
33114-040 |
SCREW-HH Price: $1.22 |
| 14 |
33014-00 |
NUT-HEX Price: $0.25 |
| 15 |
99-3313 |
SCREW-HSFH M8-1.25 X 40MM Price: $4.62 |
| 16 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 17 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 18 |
98-5449 |
BUSHING - FLANGE Price: Call Us |
| 19 |
111951 |
HUBCAP Price: $9.71 |
| 20 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 21 |
111952 |
WASHER WHEEL Price: $4.11 |
| 22 |
117127 |
TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL Price: $107.13 |
| 23 |
98-5563 |
PIVOT PLATE MOUNT Price: $304.24 |
| 24 |
98-5562 |
DISCONTINUED Price: Call Us |
| 25 |
98-5542 |
FLAT BAR Price: $30.18 |
| 26 |
98-5558 |
DISCONTINUED Price: Call Us |
| 27 |
98-5332 |
AXLE *B Price: $161.18 |
| 28 |
98-5546 |
SPINDLE, LH Price: $163.89 |
| 29 |
98-5551 |
TIE ROD Price: Call Us |
| 30 |
98-5547 |
SPINDLE, RH Price: Call Us |
| 31 |
98-5463 |
ROD - STEERING Price: $156.27 |
| 32 |
110513 |
BEARING-WHEEL Price: $20.99 |
| 33 |
98-5317 |
WHEEL Price: Call Us |
| 34 |
5108 |
VALVE Price: $6.29 |
| 35 |
1278 |
WASHER Price: $1.89 |
| 36 |
98-5442 |
BALL JOINT Price: $107.81 |
| 37 |
5210 |
WASHER-SHIM Price: $1.36 |
| 38 |
98-5443 |
BALL JOINT,LH THREAD Price: $96.11 |
| 39 |
1278 |
WASHER Price: $1.89 |
| 40 |
5210 |
WASHER-SHIM Price: $1.36 |
| 503200216 |
503200216 |
SCREW Price: $3.99 |
| 503200608 |
503200702 |
SCREW IHSCFM This part replaces 503200608. Price: $3.99 |

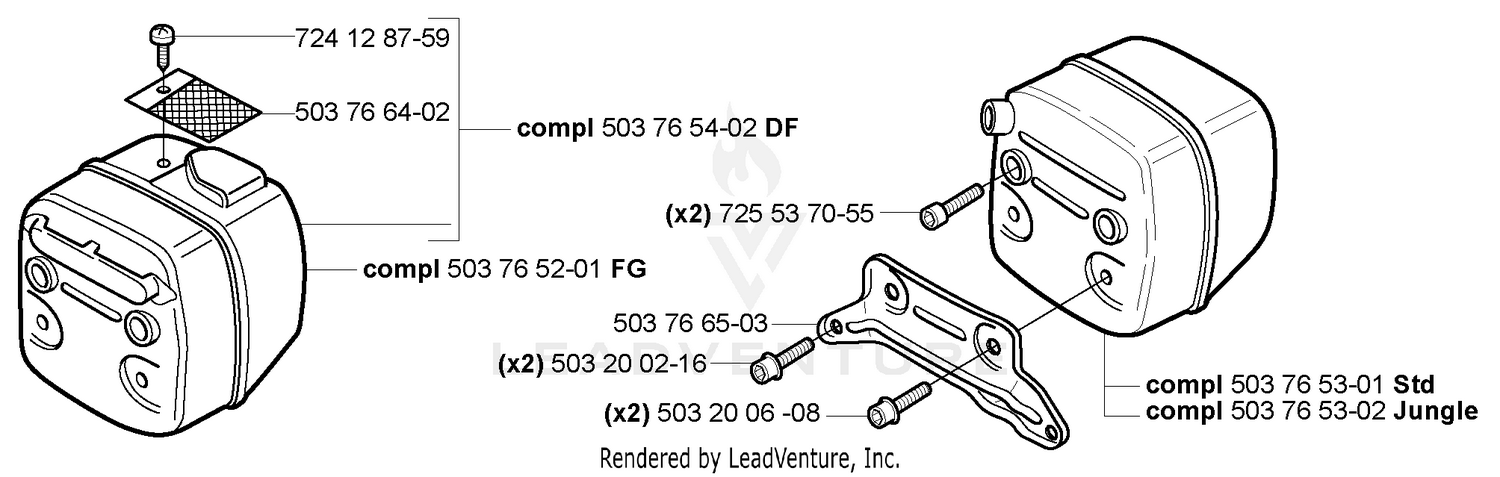

| 503765201 |
536600501 |
MUFFLER ASSEMBLY 70CC This part replaces 503765201. Price: $99.99 |
| 503765301 |
536599001 |
MUFFLER ASY 70CC This part replaces 503765301. Price: $99.99 |
| 503765302 |
503765302 |
Muffler Price: $57.58 |
| 503765402 |
536600501 |
MUFFLER ASSEMBLY 70CC This part replaces 503765402. Price: $99.99 |
| 503766402 |
536601201 |
SPARK ARRESTER 70CC This part replaces 503766402. Price: $8.99 |
| 503766503 |
579025901 |
SUPPORT This part replaces 503766503. Price: $9.99 |
| 724128759 |
724128759 |
SCREW Price: $2.99 |
