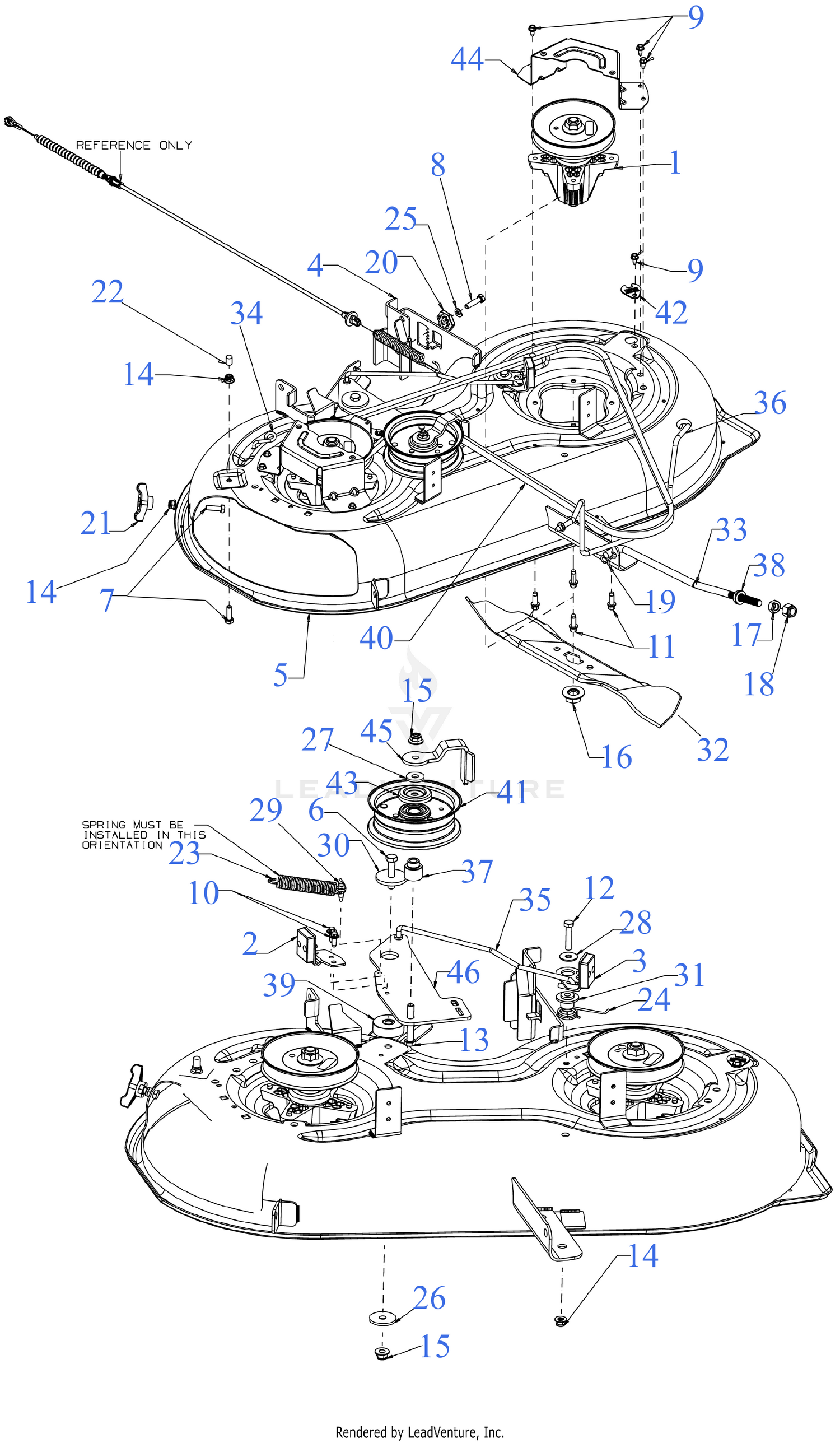

| Ref | Part Number | Description |
|---|
| 2 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) Price: $87.42 |
| 3 |
983-05396 |
DECK BRAKE ASSEMBLY Price: $88.32 |
| 6 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 7 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 8 |
710-0528 |
SCREW 5/16-18 x 1.25 GR5 Price: $3.90 |
| 9 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 10 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 11 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 12 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 13 |
710-3011 |
SCREW 3/8-16 x 2.25 GR5 Price: $6.49 |
| 14 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
712-05134 |
FLANGE NUT 5/8-18 Price: $5.52 |
| 17 |
712-3048 |
HEX NUT Price: $4.08 |
| 18 |
712-3083 |
HEX LOCK NUT NYLON Price: $4.05 |
| 19 |
714-04043 |
PIN:COTTER Price: $4.24 |
| 20 |
917-04074 |
DECK ADJUSTMENT GEAR Price: $11.45 |
| 21 |
720-04122 |
WING KNOB 5/16-18 Price: $5.87 |
| 22 |
720-05010 |
VINYL CAP Price: $3.70 |
| 23 |
732-04629 |
EXTENSION SPRING Price: $25.15 |
| 24 |
732-08321 |
TORSION SPRING Price: $6.11 |
| 25 |
936-0119 |
LOCK WASHER 5/16 Price: $4.29 |
| 26 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 27 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 28 |
736-3078 |
FLAT WASHER 344X1.00 Price: $3.95 |
| 29 |
738-04184A |
SHOULDER SCREW Price: $5.99 |
| 30 |
738-05082 |
SHOULDER SPACER Price: $7.32 |
| 31 |
738-05272 |
DOUBLE SHOULDER SPACER .750 x .135 Price: $6.24 |
| 33 |
747-05141B |
DECK FRONT LIFT ROD Price: $19.44 |
| 34 |
747-06506 |
ROD HOOK Price: $5.52 |
| 35 |
747-09330 |
DECK BRAKE ROD Price: $8.61 |
| 36 |
747-09750 |
DECK BRAKE ROD Price: $14.87 |
| 37 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 38 |
748-06584 |
DECK LIFT PIVOT CUP Price: $3.78 |
| 39 |
750-06184 |
SPACER .385ID x 1.75OD x .585THK Price: $10.02 |
| 40 |
754P06434 |
V-BELT (A SEC x 79.40) Price: $46.63 |
| 41 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 42 |
783-06464 |
DECK WASH PLUG Price: $3.70 |
| 43 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 45 |
783Z08619A |
BELT KEEPER This part replaces 783E08619A. Price: $21.88 |
