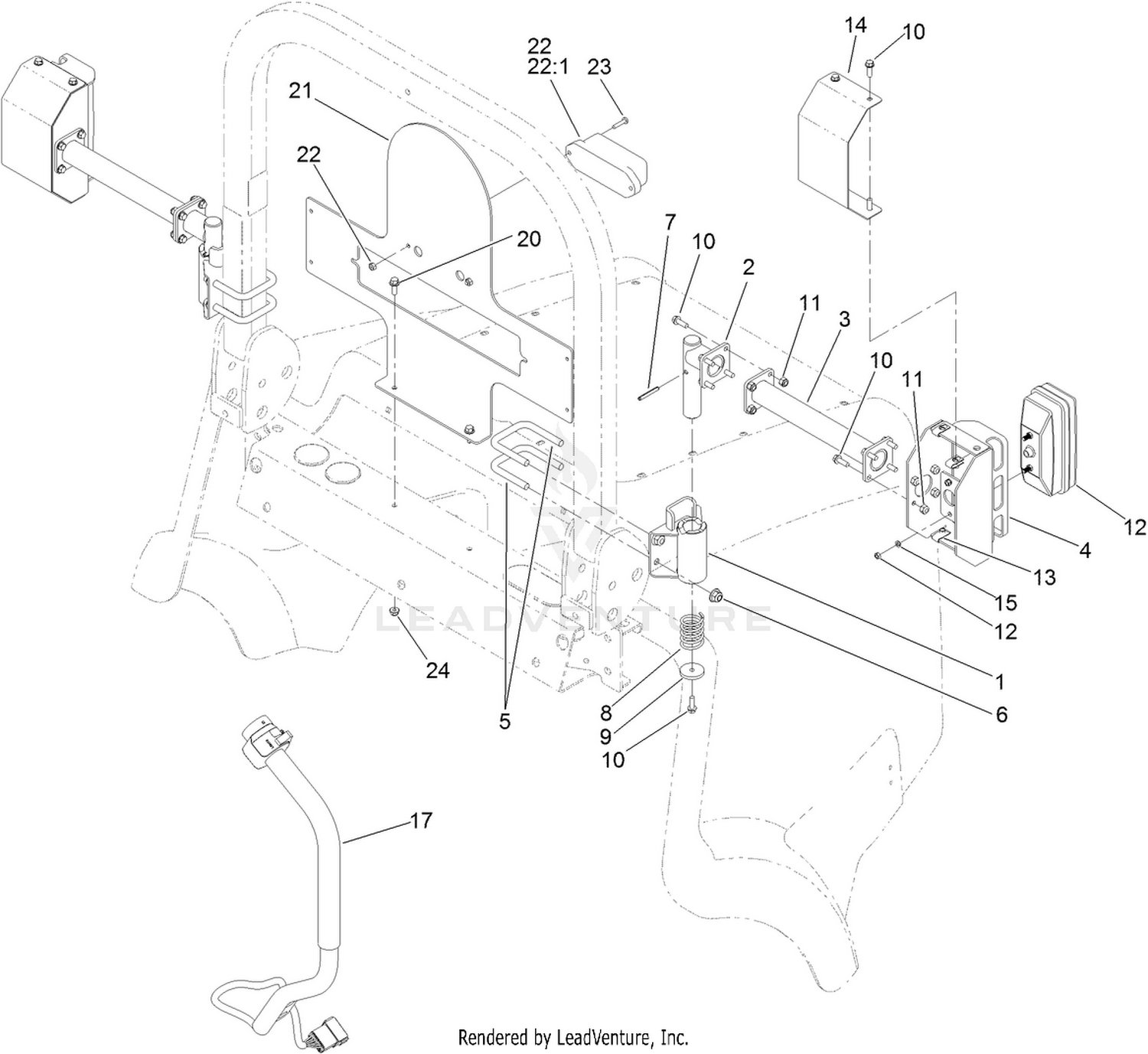

Tail Light Mount Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-1441-03 | PIVOT Price: $112.52 |
| 2 | 132-1446-03 | BRACKET-LAMP, REAR Price: $83.50 |
| 3 | 132-1475-03 | TAIL LIGHT EXTENSION ASM Price: $59.55 |
| 4 | 132-1445-03 | SHROUD-LAMP, REAR Price: $166.43 |
| 5 | 103-2469 | U-BOLT Price: $7.13 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 32121-34 | PIN-ROLL Price: $1.31 |
| 8 | 61-3270-03 | SPRING-COMPRESSION Price: $12.24 |
| 9 | 119-9875 | WASHER Price: $6.65 |
| 10 | 32105-15 | SCREW-HWH Price: $1.79 |
| 11 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 12 | 119-8093 | TAIL LIGHT ASM Price: $184.00 |
| 13 | 107069 | CLIP Price: $1.79 |
| 14 | 132-1478-03 | COVER-LAMP Price: $31.94 |
| 15 | 43-5920 | WASHER-LOCK, SPRING Price: $0.25 |
| 17 | 136-2131 | LH LEVER ASM Price: $1,076.72 |
| 20 | 3234-4 | SCREW-HHF Price: $0.50 |
| 21 | 136-0034-03 | BRACKET-LICENSE Price: $86.28 |
| 22 | 119-8091 | LIGHT-PLATE Price: $48.42 |
| 23 | 3250-27 | SCREW-PPH Price: $0.22 |
