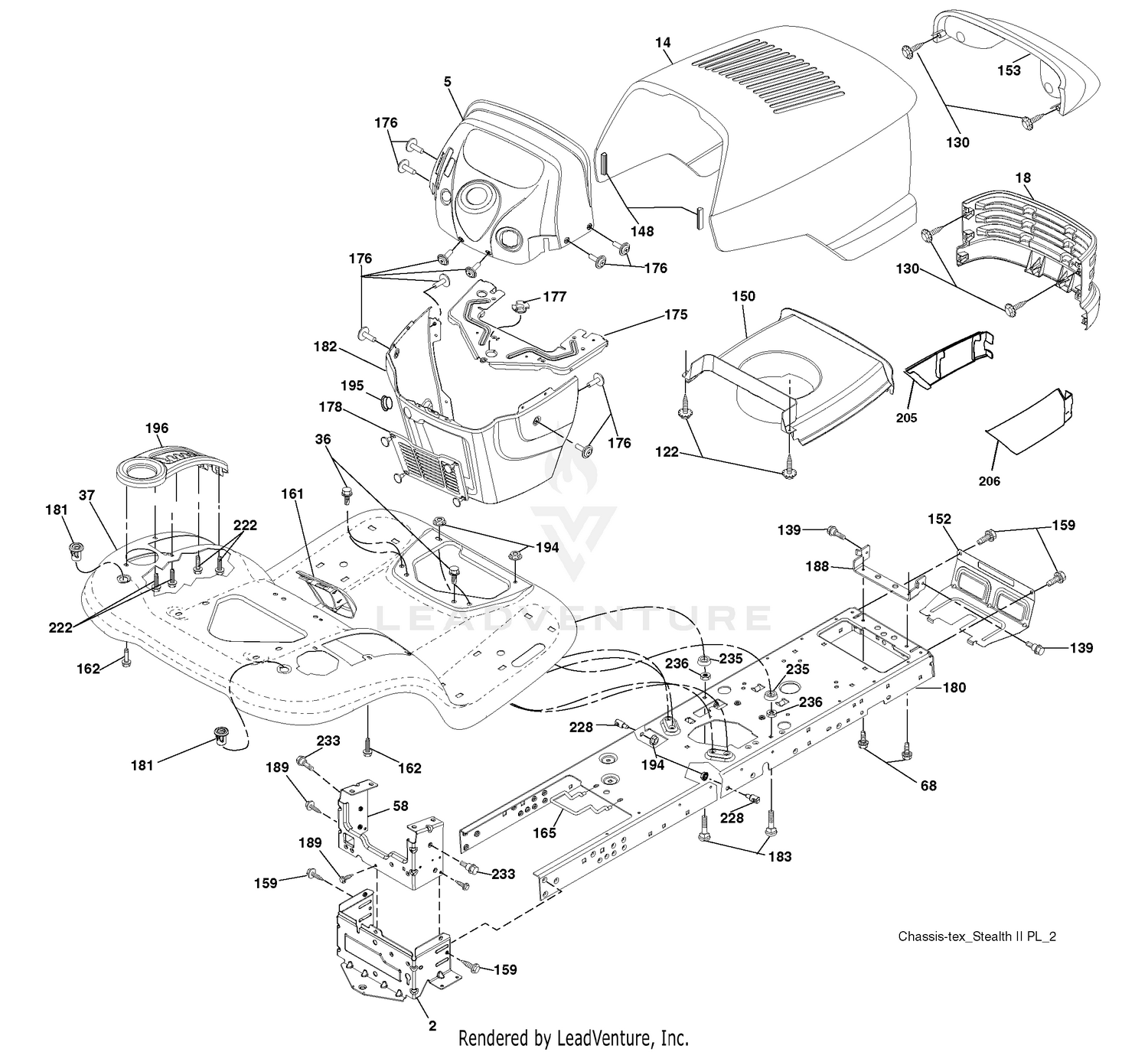

| Ref | Part Number | Description |
|---|
| 1 |
105-0750 |
FAN Price: $203.59 |
| 2 |
115-1562 |
FAN CLUTCH KIT This part replaces 104-2212. Price: $645.71 |
| 2 |
412282 |
Drawbar Lower Price: Call Us |
| 3 |
322-2 |
SCREW-HH Price: $0.69 |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
100-3066 |
ADAPTER-FAN Price: $120.14 |
| 5 |
195102X428 |
Dash Price: Call Us |
| 6 |
52-6290 |
SCREW-HSH Price: $1.09 |
| 7 |
98-3817 |
SOLENOID KIT Price: $522.93 |
| 8 |
100-5633 |
SPACER-COUPLING Price: $149.21 |
| 9 |
58-3590 |
DOWEL Price: $5.50 |
| 10 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 11 |
100-5634 |
BOLT-SHOULDER Price: $9.16 |
| 12 |
33114-020 |
SCREW-HH Price: $0.28 |
| 13 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 14 |
100-5635 |
PIN-PLATE Price: $7.87 |
| 14 |
175260X428 |
Hood Price: Call Us |
| 15 |
70-8470 |
SCREW-HH Price: $1.76 |
| 16 |
108-8011 |
ADAPTER PLATE KIT This part replaces 100-5632-03. Price: $495.79 |
| 17 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 18 |
175289X428 |
Grille Price: Call Us |
| 18 |
43-0090 |
SCREW-HH Price: $8.05 |
| 19 |
104-2291 |
CYLINDER ASM Price: $295.14 |
| 20 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 21 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 22 |
237-185 |
O-RING Price: $1.26 |
| 23 |
104-2295 |
PISTON-CYLINDER Price: $83.64 |
| 24 |
104-2296 |
RING-BACK UP Price: $2.67 |
| 25 |
32151-51 |
RING-RETAINING Price: $0.81 |
| 26 |
104-8304 |
SEAL-GREASE Price: $7.38 |
| 27 |
104-7540-03 |
SUPPORT-CABLE Price: $44.21 |
| 28 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 29 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 30 |
3296-21 |
NUT-HEX Price: $0.22 |
| 31 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 32 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 33 |
42-9250 |
BOLT Price: $1.63 |
| 34 |
100-5553 |
DISCONTINUED Price: Call Us |
| 35 |
100-5552 |
HARNESS-WIRE Price: $45.75 |
| 36 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 36 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 37 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 37 |
400009X428 |
Fender Price: Call Us |
| 38 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 39 |
105-3238 |
PLATE-SHIM This part replaces 105-3238-03. Price: $7.52 |
| 58 |
412281 |
Drawbar Upper Price: Call Us |
| 68 |
17490508 |
Screw 5/16-18 x 1/2 Price: Call Us |
| 122 |
192512 |
Screw WSHD Hex 10-32 x 5/8 Price: Call Us |
| 130 |
416358 |
Screw #10 x 0.750 BOS Thread Price: Call Us |
| 139 |
171873 |
Bolt Shoulder 5/16 - 18 Price: Call Us |
| 148 |
164655 |
Bumper Hood Price: Call Us |
| 150 |
175351 |
Duct Heat Price: Call Us |
| 152 |
194329 |
Shield Browning/Debris Price: Call Us |
| 153 |
161840 |
Lens Bar Price: Call Us |
| 159 |
17000612 |
Screw Hex Wsh. Thdrol. 3/8-16 x 3/4 Price: Call Us |
| 161 |
193097X428 |
Window Fuel Price: Call Us |
| 162 |
142432 |
Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc Price: Call Us |
| 165 |
194330 |
Bracket Support Tank Price: Call Us |
| 175 |
193236 |
Cross Member Price: Call Us |
| 176 |
400776 |
Screw 10-24 x 5/8 Wshd. Qdrx. Price: Call Us |
| 177 |
195227 |
Bushing Steering Price: Call Us |
| 178 |
195651 |
Cargo Asm. Net Price: Call Us |
| 180 |
194260 |
Chassis Price: Call Us |
| 181 |
193102X428 |
Bushing Mtg. Fender Crgo. Price: Call Us |
| 182 |
192551 |
Dash Lower Price: Call Us |
| 183 |
74780520 |
Bolt Fin. Hex 5/16-18 x 1-1/4 Price: Call Us |
| 188 |
194316 |
Bracket Pickoff Hood Price: Call Us |
| 189 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 194 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 195 |
401556X428 |
Plug Hole Dash Price: Call Us |
| 196 |
410585 |
Console Asm. Deck Lift Price: Call Us |
| 205 |
169847X428 |
Skirt Hood RH Price: Call Us |
| 206 |
169848X428 |
Skirt Hood LH Price: Call Us |
| 222 |
137729 |
Screw Thrdrol. 1/4-20 x 5/8 Price: Call Us |
| 228 |
195161 |
Stud Fastener Price: Call Us |
| 233 |
196539 |
Bolt Shoulder Price: Call Us |
| 235 |
406129 |
Spacer Fender Price: Call Us |
