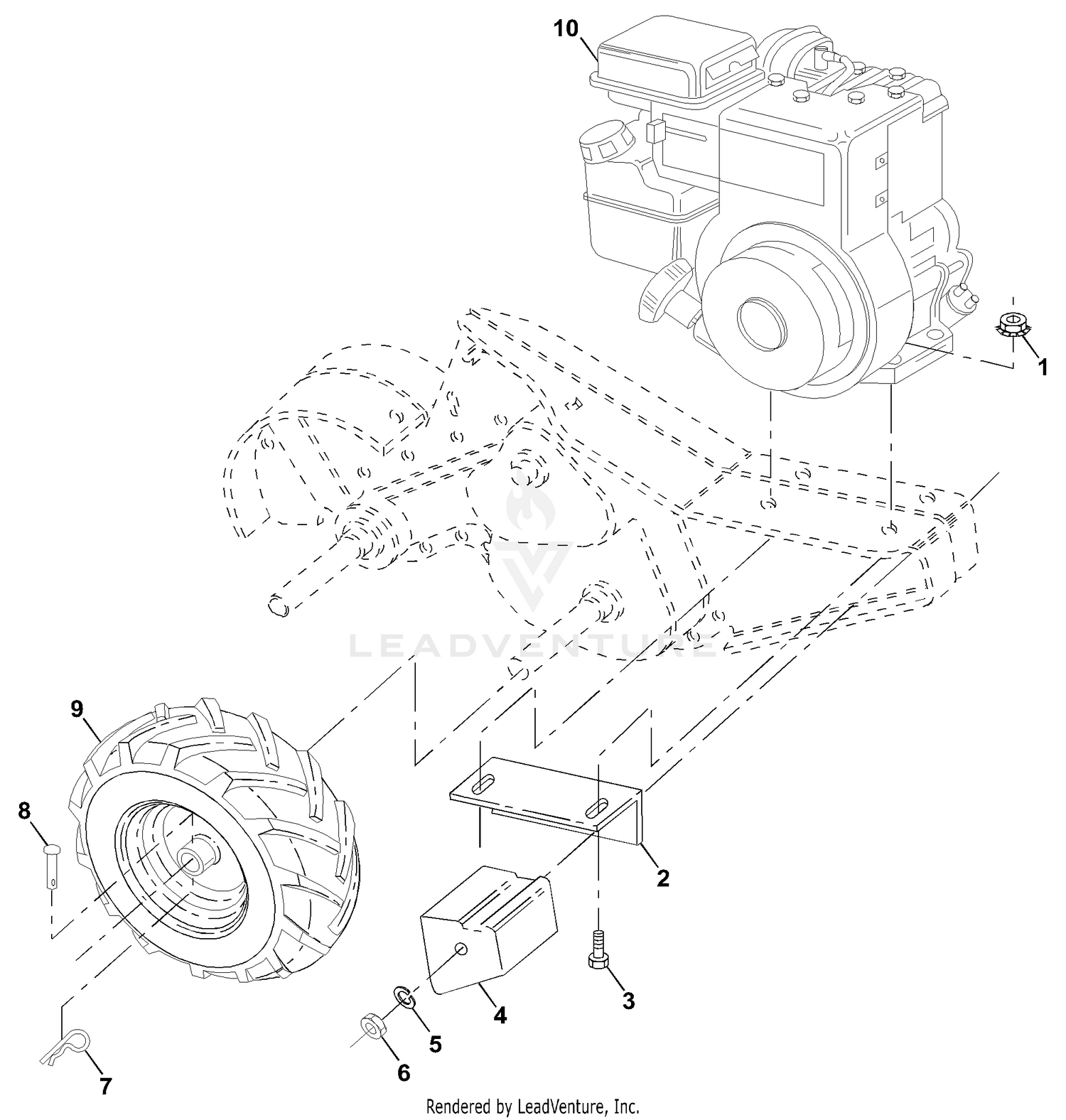

| Ref | Part Number | Description |
|---|
| 1 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
581864701 |
BRACKET.REINFORCEMENT.RH.BLACK This part replaces 532102332. Price: $8.99 |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
596582201 |
Bolts This part replaces 874760524. Price: $2.99 |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 4 |
532102173 |
COUNTERWEIGHT, RH Price: $42.99 |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 5 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 7 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 8 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 9 |
532102190 |
TIRE.13X5-6.CHEVRON.TILLER Price: $59.99 |
| 9 |
532124258 |
RIM ASM.6"WHITE.TILLER Price: $120.99 |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 21 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
