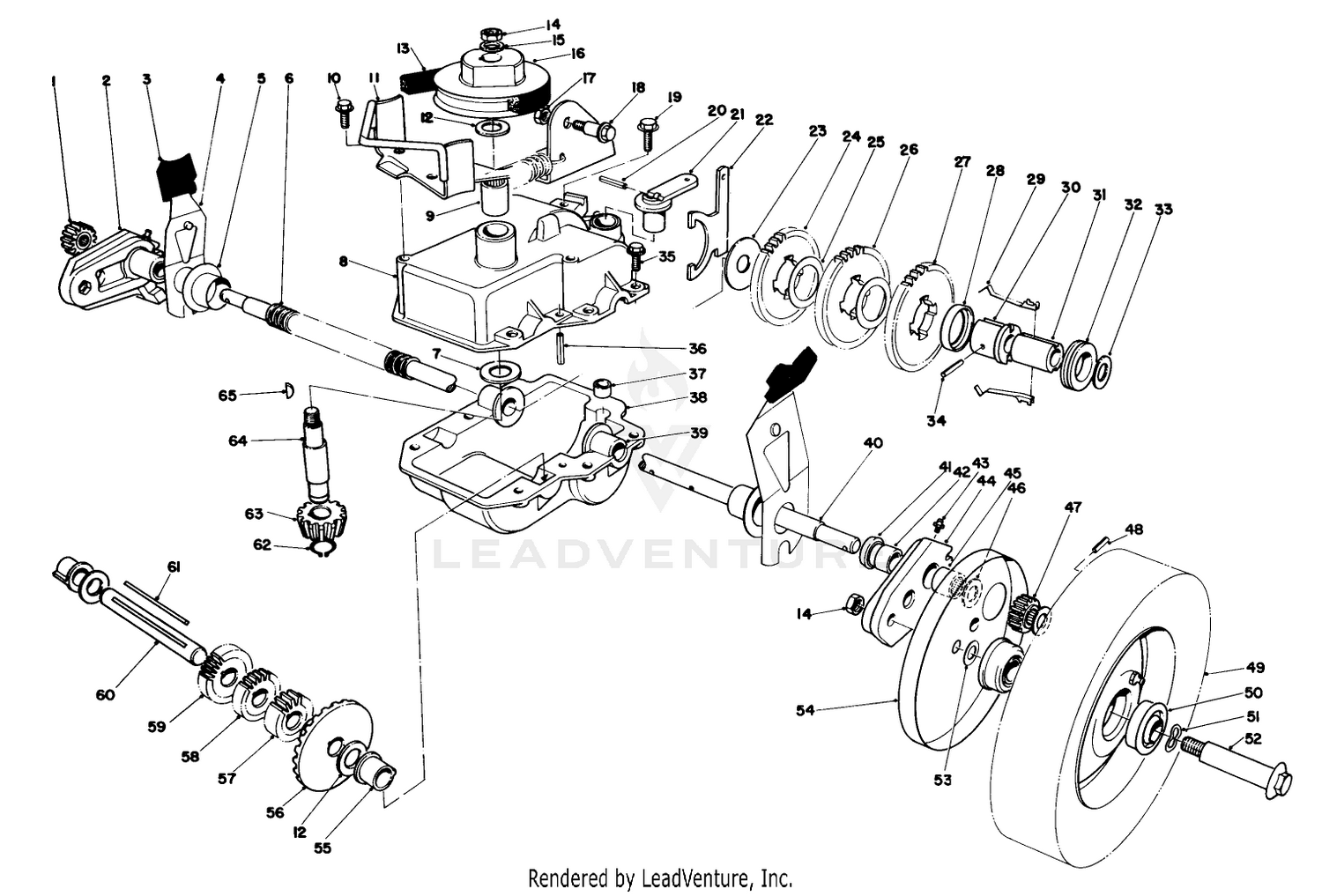

| Ref | Part Number | Description |
|---|
| 1 |
39-7740 |
RH CLUTCH & PINION This part replaces 38-3120. Price: $100.95 |
| 2 |
49-7720 |
PIVOT ARM ASM RH This part replaces 29-9590. Price: $74.74 |
| 3 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 4 |
44-1010 |
SPRING ARM ASM SP Price: $25.85 |
| 5 |
138-3235 |
CAP-END This part replaces 42-3520. Price: $2.29 |
| 6 |
24-7922 |
CONDUIT-CONVOLUTED, SPLIT Price: $9.99 |
| 7 |
47-2910 |
WASHER-THRUST This part replaces 256-196. Price: $12.99 |
| 8 |
39-7282 |
DISC PRC4 Price: Call Us |
| 9 |
47-6720 |
BEARING This part replaces 252-99. Price: $22.96 |
| 10 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 11 |
40-5700 |
DISCONTINUED Price: Call Us |
| 12 |
36-4790 |
WASHER-THRUST Price: $2.49 |
| 13 |
40-9440 |
V-BELT Price: $17.27 |
| 14 |
3296-6 |
NUT-LOCK This part replaces 32146-6. Price: $1.49 |
| 15 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 16 |
40-5650 |
DISC SEE PRC4 Price: Call Us |
| 17 |
32153-4 |
NUT-HEX, SIDE DEFORM Price: $0.75 |
| 18 |
43-7260 |
SHOULDER BOLT Price: $12.99 |
| 19 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 20 |
32121-99 |
PIN-COIL Price: $0.80 |
| 21 |
29-9560 |
LEVER-SHIFT Price: $10.39 |
| 22 |
60-8870 |
YOKE-SHIFT This part replaces 29-9520. Price: $16.30 |
| 23 |
29-9690 |
WASHER Price: $8.10 |
| 24 |
40-5680 |
DISCONTINUED Price: Call Us |
| 25 |
36-4770 |
WASHER Price: $3.50 |
| 26 |
40-5670 |
DISCONTINUED Price: Call Us |
| 27 |
29-9271 |
GEAR-42T Price: $58.12 |
| 28 |
39-7830 |
KEY RETAINER Price: Call Us |
| 29 |
29-9330 |
KEY-SHIFT This part replaces 39-6470. Price: $18.44 |
| 30 |
55-8010 |
SLEEVE-GEAR This part replaces 39-6730. Price: $13.21 |
| 31 |
39-6720 |
SLEEVE Price: $10.49 |
| 32 |
29-9340 |
COLLAR-SHIFT Price: $26.11 |
| 33 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 34 |
32121-108 |
PIN-SPIROL This part replaces 32121-106. Price: $4.45 |
| 35 |
32144-44 |
SCREW-HWH, THREAD ROLL Price: $1.39 |
| 36 |
32121-100 |
ROLL PIN 3/16 X 1 IN Price: $1.13 |
| 37 |
29-9570 |
BUSHING-YOKE Price: $7.60 |
| 38 |
29-9410 |
DISCONTINUED Price: Call Us |
| 39 |
47-5220 |
DISCONTINUE This part replaces 29-9310. Price: Call Us |
| 40 |
29-9390 |
OUTPUT SHAFT Price: $90.52 |
| 41 |
47-7260 |
SEAL This part replaces 253-86. Price: $5.36 |
| 42 |
47-2890 |
BUSHING This part replaces 256-110. Price: $3.19 |
| 43 |
302-18 |
FITTING-GREASE Price: $3.46 |
| 44 |
29-9640 |
DISCONTINUED Price: Call Us |
| 45 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 252-96. Price: $4.69 |
| 46 |
29-9700 |
WASHER Price: $4.99 |
| 47 |
39-7730 |
LH CLUTCH & PINION This part replaces 36-8100. Price: $100.95 |
| 48 |
32121-88 |
COIL PIN This part replaces 32121-98. Price: $7.79 |
| 49 |
38-2930 |
DISCONTINUED Price: Call Us |
| 50 |
116-7257 |
BEARING-BALL This part replaces 251-180. Price: $12.33 |
| 51 |
3290-393 |
SPRING WASHER Price: $2.95 |
| 52 |
26-4430 |
WHEEL BOLT Price: $31.88 |
| 53 |
40-1940 |
WASHER Price: $1.59 |
| 54 |
36-5630-03 |
WHEEL COVER This part replaces 36-5630. Price: $20.72 |
| 55 |
52-5410 |
BUSHING This part replaces 29-9350. Price: $6.01 |
| 56 |
39-6670 |
BEVEL GEAR Price: Call Us |
| 58 |
40-5660 |
DISCONTINUED Price: Call Us |
| 59 |
40-5690 |
DISCONTINUED Price: Call Us |
| 60 |
39-6680 |
DISCONTINUED XREF Price: Call Us |
| 61 |
39-7842 |
KEY This part replaces 39-7840. Price: $1.65 |
| 62 |
32151-57 |
RING-RETAINING Price: $2.37 |
| 63 |
39-6660 |
PINION-BEVEL Price: $25.89 |
| 64 |
39-6690 |
DISCONTINUED Price: Call Us |
| 65 |
3257-1 |
KEY-WOODRUFF Price: $1.79 |
