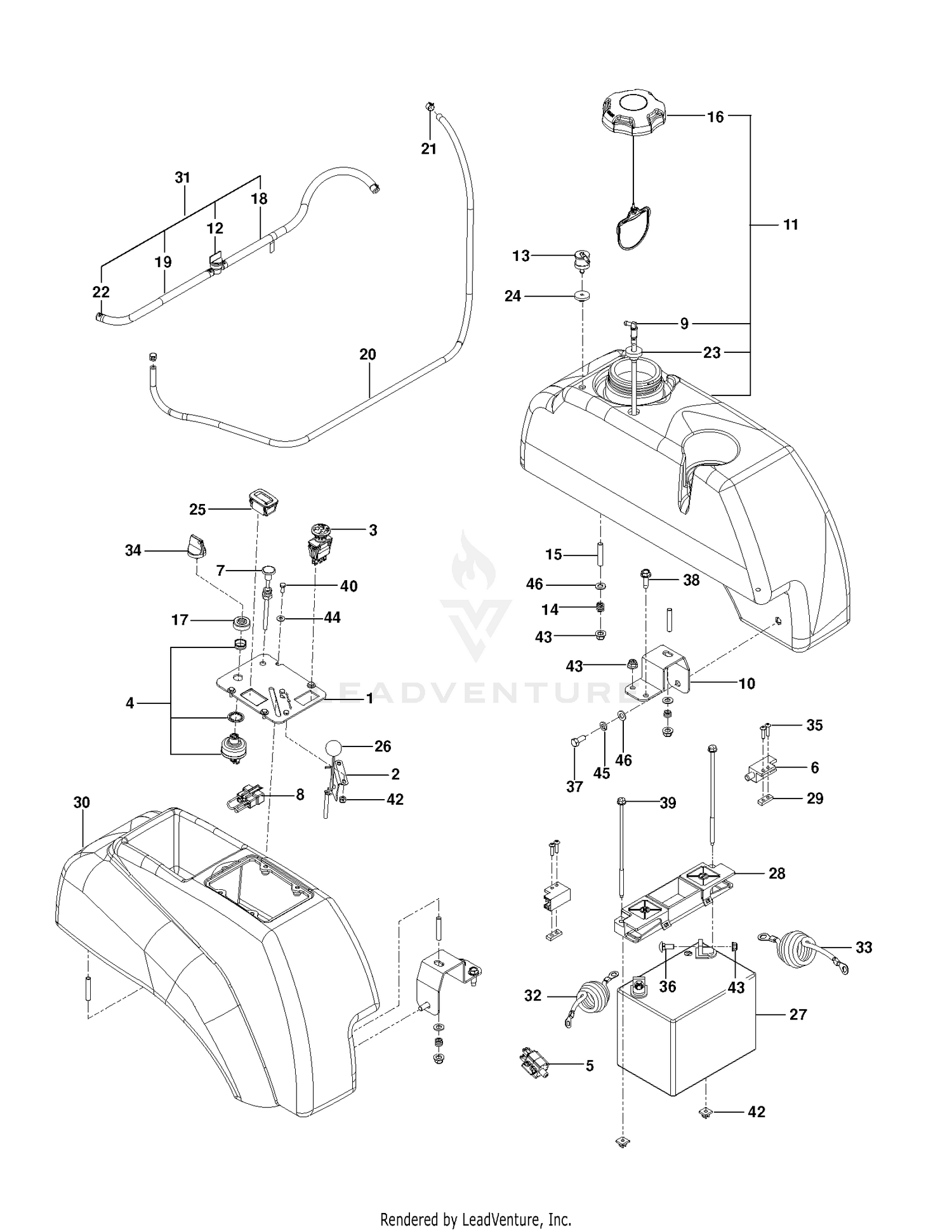

| Ref | Part Number | Description |
|---|
| 1 |
134-0701 |
ROD Price: $12.78 |
| 2 |
134-0729 |
BUSHING Price: $4.06 |
| 2 |
597873201 |
THROTTLE CABLE W/KNOB This part replaces 539112438. Price: $37.99 |
| 3 |
134-0779 |
SHAFT Price: $85.86 |
| 3 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 582107602. Price: $24.99 |
| 4 |
134-0780 |
FLANGE-DUST Price: $187.91 |
| 4 |
574455401 |
SWITCH, IGNITION, INDAK Price: $29.99 |
| 5 |
134-0782 |
LEVER-BELT TENSIONER Price: $20.28 |
| 5 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 6 |
134-0783 |
PIN-GUIDE, NYLON Price: $10.91 |
| 6 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 7 |
134-0784 |
BUSHING Price: $12.12 |
| 7 |
531077201 |
CHOKE CABLE This part replaces 574206903. Price: $11.99 |
| 8 |
134-0866 |
WASHER Price: $4.79 |
| 8 |
575321001 |
PLUG, TIMER Price: $12.99 |
| 9 |
134-0893 |
SPRING-BELT TENSION INDICATOR Price: $5.06 |
| 9 |
576469201 |
FITTING, FUEL Price: $22.99 |
| 10 |
134-0919 |
BRACKET Price: $7.26 |
| 10 |
539131671 |
SUPPORT, TANK, BLK Price: $59.99 |
| 11 |
134-0967 |
TUBE-PROTECTOR, POLYETHYLENE Price: $13.46 |
| 11 |
598664901 |
Tanks This part replaces 578368102. Price: $349.99 |
| 12 |
134-0968 |
BRACKET Price: $8.40 |
| 12 |
539916325 |
FUEL VALVE Price: $9.99 |
| 13 |
134-0969 |
BRACKET Price: $8.40 |
| 13 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 14 |
134-0970 |
FORK Price: $15.13 |
| 14 |
539102845 |
SPRING Price: $2.99 |
| 15 |
134-0971 |
BRACKET Price: $9.26 |
| 15 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 16 |
134-0997 |
WASHER Price: $4.55 |
| 16 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 17 |
134-1011 |
SCREW Price: $0.32 |
| 17 |
539103178 |
CAP IGNITION NUT Price: $3.99 |
| 18 |
134-1012 |
SCREW Price: $0.32 |
| 19 |
134-1034 |
NUT Price: $0.25 |
| 19 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 20 |
134-1038 |
NUT Price: $0.32 |
| 20 |
576660602 |
HOSE, VAPOR 3/16 X 48" Price: $27.99 |
| 21 |
134-1042 |
NUT Price: $0.25 |
| 21 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 22 |
134-1044 |
WASHER Price: $0.25 |
| 22 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 23 |
134-1045 |
WASHER Price: $0.25 |
| 23 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 24 |
134-1057 |
RING-RETAINING, INT Price: $1.98 |
| 24 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 25 |
134-1058 |
RING-RETAINING, INT Price: $1.33 |
| 25 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 26 |
134-1075 |
SCREW Price: $3.60 |
| 26 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 27 |
134-1078 |
NUT Price: $0.25 |
| 27 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 28 |
134-1082 |
NUT Price: $0.36 |
| 28 |
539107628 |
BATTERY HOLD DOWN Price: $4.99 |
| 29 |
134-1092 |
NUT Price: $0.25 |
| 29 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 30 |
134-1100 |
KEY-SHAFT Price: $1.28 |
| 30 |
539107593 |
FENDER CONSOLE Price: $129.99 |
| 31 |
134-1105 |
BEARING Price: $50.93 |
| 31 |
586123903 |
FUEL.HOSE.SHUT.OFF.ASM.10".10" This part replaces 576547802. Price: $11.99 |
| 32 |
134-1055 |
BEARING This part replaces 134-1108. Price: $30.66 |
| 32 |
539104974 |
POST.CABLE LONG Price: $27.99 |
| 33 |
134-1132 |
PIN-SPRING Price: $0.25 |
| 33 |
539107645 |
NEG. CABLE, 28" Price: $34.99 |
| 34 |
134-1236 |
PIN Price: $3.92 |
| 34 |
574455501 |
KEY, IGNITION Price: $5.99 |
| 35 |
134-1239 |
FORK Price: $5.66 |
| 35 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 36 |
134-1249 |
BUSHING Price: $14.20 |
| 36 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 37 |
134-1258 |
FITTING-GREASE Price: $2.88 |
| 37 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 38 |
134-1302 |
SCREW Price: $0.64 |
| 38 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 39 |
134-1311 |
SCREW Price: $0.53 |
| 39 |
539107632 |
BOLT - 1/4-20 X 7.5 Price: $0.99 |
| 40 |
134-1349 |
GUIDE-SPRING Price: $2.03 |
| 40 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 41 |
134-1351 |
SPACER Price: $17.33 |
| 41 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 42 |
134-0561 |
NUT Price: $0.57 |
| 42 |
539107629 |
PUSH NUT-NYLON Price: $2.99 |
| 43 |
134-0622 |
PULLEY Price: $94.15 |
| 43 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 44 |
134-1365 |
PULLEY Price: $40.63 |
| 44 |
539105408 |
WASHER #10 Price: $2.99 |
| 45 |
134-0577 |
BELT-PTO Price: $47.55 |
| 45 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 46 |
134-0578 |
CLUTCH Price: $688.04 |
| 46 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 47 |
134-1359 |
DECAL-ATTENTION, DECK SERVICE Price: $9.99 |
| 48 |
134-0618 |
SPRING Price: $7.15 |
