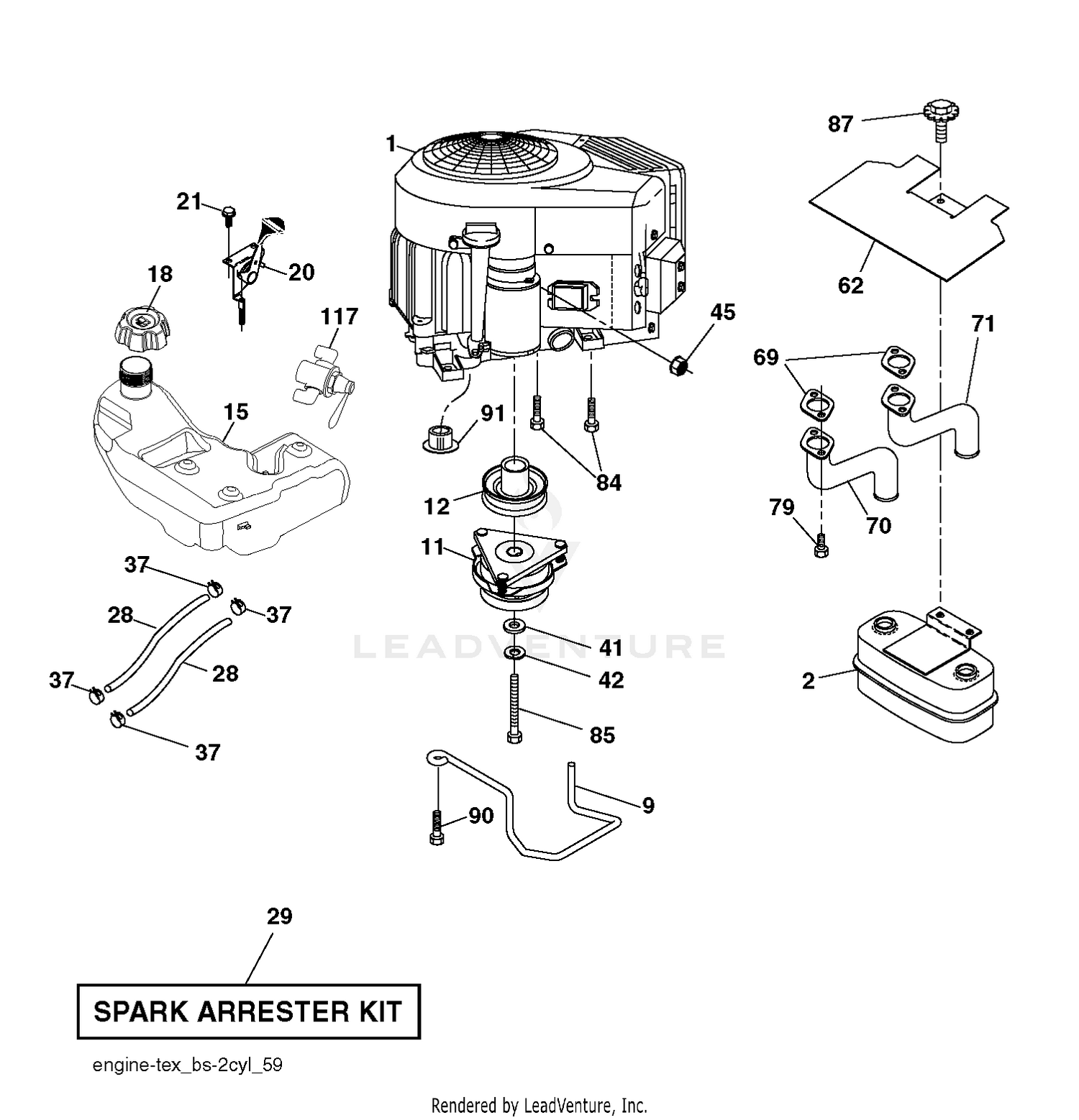

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 3 |
105-7815 |
TIE ROD ASM This part replaces 2412-123. Price: $573.88 |
| 4 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 5 |
92-6533 |
SEAT CUSHION KIT Price: $290.43 |
| 6 |
351-78 |
EDGING Price: $60.98 |
| 7 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 8 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 9 |
27-5240 |
BOLT-SHOULDER Price: $17.78 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 11 |
32128-20 |
NUT-HF Price: $0.99 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
27-4570 |
KNOB-SEAT Price: $25.38 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
36-8020 |
WASHER Price: $1.65 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
46-9110-03 |
SPRING-SEAT This part replaces 46-9110. Price: $119.57 |
| 15 |
532422804 |
TANK FUEL Price: $149.99 |
| 16 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 17 |
46-9120-03 |
BAR-SEAT MOUNT This part replaces 46-9120. Price: $32.31 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532430217. Price: $14.99 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
