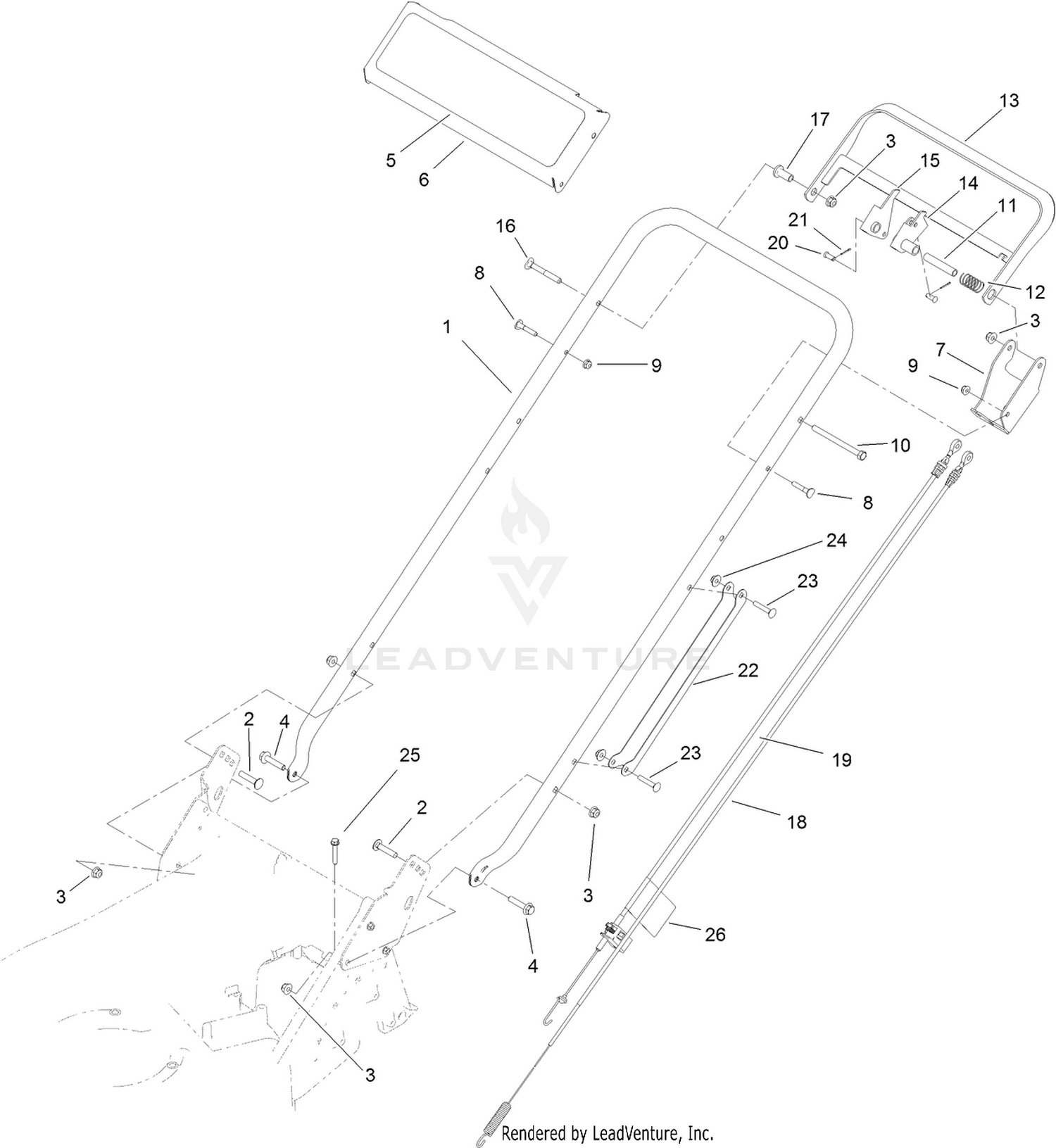

Handle and Control Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5861-03 | HANDLE This part replaces 125-1016-03. Price: $71.48 |
| 2 | 3230-4 | BOLT-CARR Price: $0.47 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 115-1794 | SCREW-HHF Price: $1.73 |
| 5 | 125-8421 | DECAL-TORO, COMMERCIAL Price: $8.89 |
| 6 | 125-8350-01 | PANEL-CONTROL Price: $23.82 |
| 7 | 125-8358-03 | BRACKET-CONTROL Price: $17.08 |
| 8 | 117-7737 | SCREW-HANDLE Price: $1.43 |
| 9 | 104-7201 | NUT-HF Price: $0.69 |
| 10 | 322-19 | SCREW-HH Price: $5.99 |
| 11 | 125-8424 | SPACER Price: $5.67 |
| 12 | 85-6750 | SPRING-CONTROL Price: $9.99 |
| 13 | 125-8357-03 | BAR-CONTROL Price: $37.21 |
| 14 | 125-8352 | LEVER-CONTROL Price: $23.82 |
| 15 | 125-8354 | LEVER-TRACTION Price: $23.82 |
| 16 | 125-8408 | SCREW-HANDLE Price: $1.45 |
| 17 | 125-8359 | SPACER-FLANGE Price: $2.97 |
| 18 | 130-9702 | CABLE-BBC Price: $23.82 |
| 19 | 130-9703 | CABLE-TRACTION, BBC Price: $35.72 |
| 20 | 84-9040 | PIN-CABLE Price: $8.06 |
| 21 | 3272-1 | PIN-COTTER Price: $0.25 |
| 22 | 127-6897-03 | GUARD-CABLE, HANDLE Price: $5.91 |
| 23 | 108-0988 | SCREW-CARR Price: $0.61 |
| 24 | 114-3778 | NUT-HF Price: $0.90 |
| 25 | 94-2691 | SCREW-HWH Price: $1.02 |
