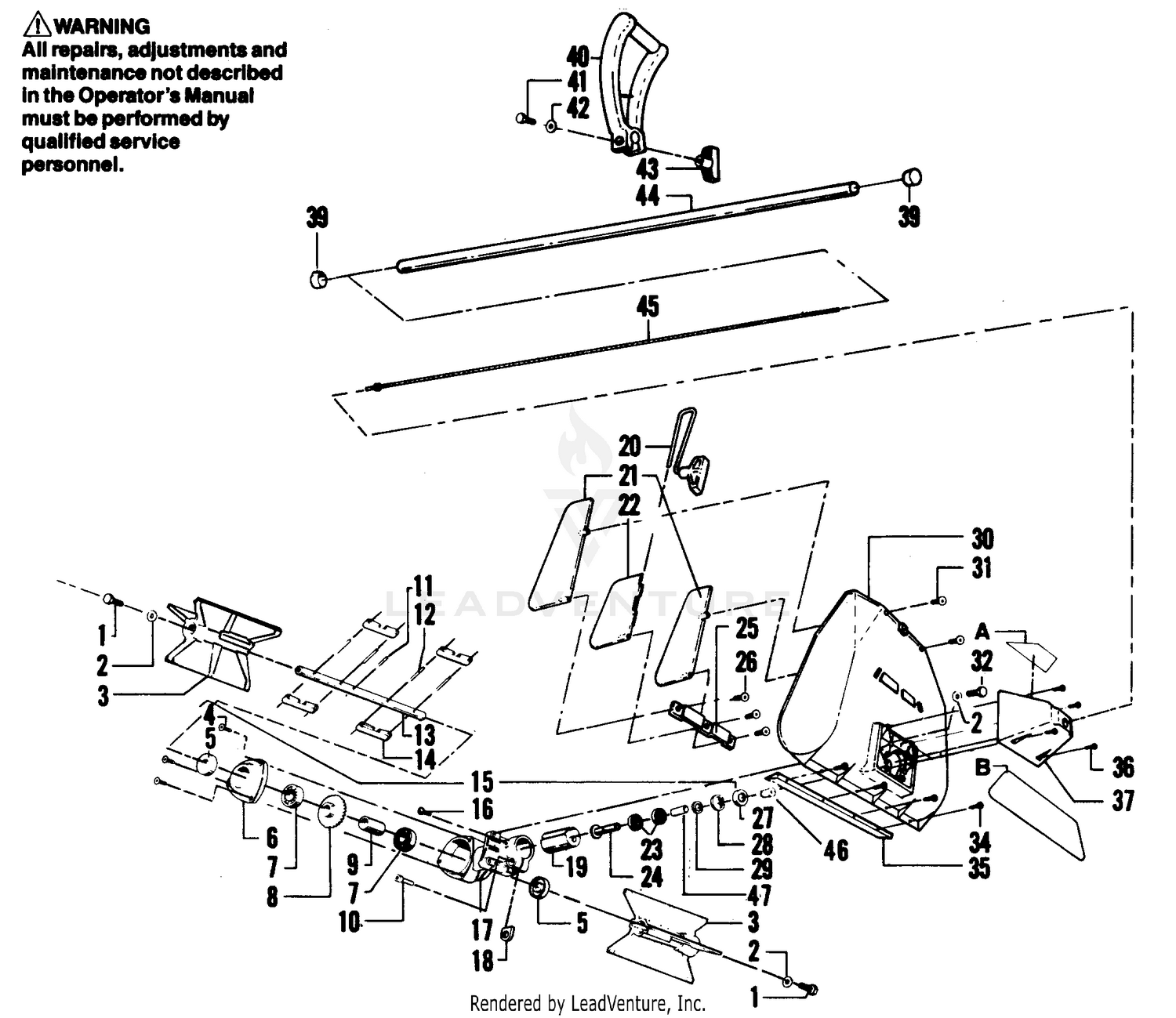

SHOVEL ASSEMBLY

SHOVEL ASSEMBLY

Parts (57)

RefPart NumberDescription
A 530025162 Decal - Weed Eater - Rear Cover Price: Call Us
B 530025163 Decal - Directional Control Price: Call Us
1 253-100 DISCONTINUED Price: Call Us
1 530015426 Screw - Impeller - 1/4 - 20 x 1/2 - Hex Hd. Price: $1.99
2 530001503 Washer - Impeller & Gear Box Mounting Price: $3.33
3 530093883 Impeller Price: $2.99
4 217-26 WHEEL HUB ASM Price: $509.40
4 530093865 Screw - Gear Housing Price: $3.33
5 254-20 CUP-BEARING Price: $44.82
5 530093119 Oil Seal - Double Lip Price: $3.33
6 530093864 Gear Housing Cover Price: $3.33
6 56-7950 TIRE (9.5-14) 6-PLY This part replaces 33-0750. Price: $175.01
7 10-0720 DISCONTINUED Price: Call Us
7 530093118 Bearing - Shaft Price: $3.33
8 5108 VALVE This part replaces 232-27. Price: $6.29
8 530093867 Gear - Spiral Bevel Price: $3.33
9 3272-23 PIN-COTTER Price: $0.28
9 530093807 Collar - Shaft Price: $3.33
10 217-33 HUB CAP F/W Price: $83.14
10 530015239 Screw - Pinch Clamp - 1/4 - 20 x 1/2 - Hd. Price: $1.99
11 32136-1 NUT-SLOTTED Price: $3.46
11 501093124 Pin Spiral - Gear Price: $3.33
11 530093124 Pin Spiral - Gear Price: $3.33
12 3256-9 WASHER-FLAT Price: $8.69
12 530093034 Pin - Spiral - Brace Price: $3.33
13 254-42 CONE-BEARING Price: $94.24
13 530093117 Output Shaft Price: $3.33
14 530093036 Brace - Impeller Price: $3.33
15 530093861 Gear Box Assembly (Inc. #4-10, 16-19, 23, 24 & 27-29) Price: $3.33
16 530015216 Screw - Index 10 - 24 x 7/16 Price: $3.33
17 530093866 Gear Housing Price: $3.33
18 530092308 Washer - Fiber Filler Price: $3.33
19 530093863 Sleeve Price: $3.33
20 530093111 Activating Rod Assembly Price: $3.33
21 530092566 Vane - Outboard Price: $3.99
22 530092567 Vane - Center Price: $3.33
23 530010722 Bearing - Pinion Price: $3.33
24 530093868 Pinion Gear - Forged Bevel Price: $3.33
26 530015481 Screw - Vane Tie Bar - 8 - 16 Soc. Hd. Price: $3.33
27 530093129 Oil Seal - Single Lip Price: $3.33
28 530091574 Retaining Ring Price: $3.33
29 530091573 Retaining Ring - Pinion Price: $3.33
30 530092578 Housing -Impeller Price: $3.33
31 530015481 Screw - Vane - 18 - 16 Socket Hd. Price: $3.33
32 530015448 Screw - Gear Box Mounting Price: $3.33
34 530015451 Screw - Scraper Bar - 8 - 12 x 3/4 - Fil Hd. Price: $3.33
35 530093029 Scraper Bar Price: $3.33
36 530015451 Screw - Rear Cover - 8 - 12 x 3/4 - Fil Hd. Price: $3.33
37 530092563 Cover - Rear Price: $3.33
39 530092192 Cap - Drive Shaft Housing Price: $0.99
40 530093729 Assist Handle Price: $3.33
41 530092061 Screw - Assist Handle Price: $3.33
42 530092062 Washer - Assist Handle Price: $1.99
43 530092059 Knob - Assist Handle Price: $6.99
44 530093797 Drive Shaft Housing (Inc. #45) Price: $3.33
45 530092554 Drive Shaft Price: $3.33
47 530093128 Collar Pinion Price: $3.33
