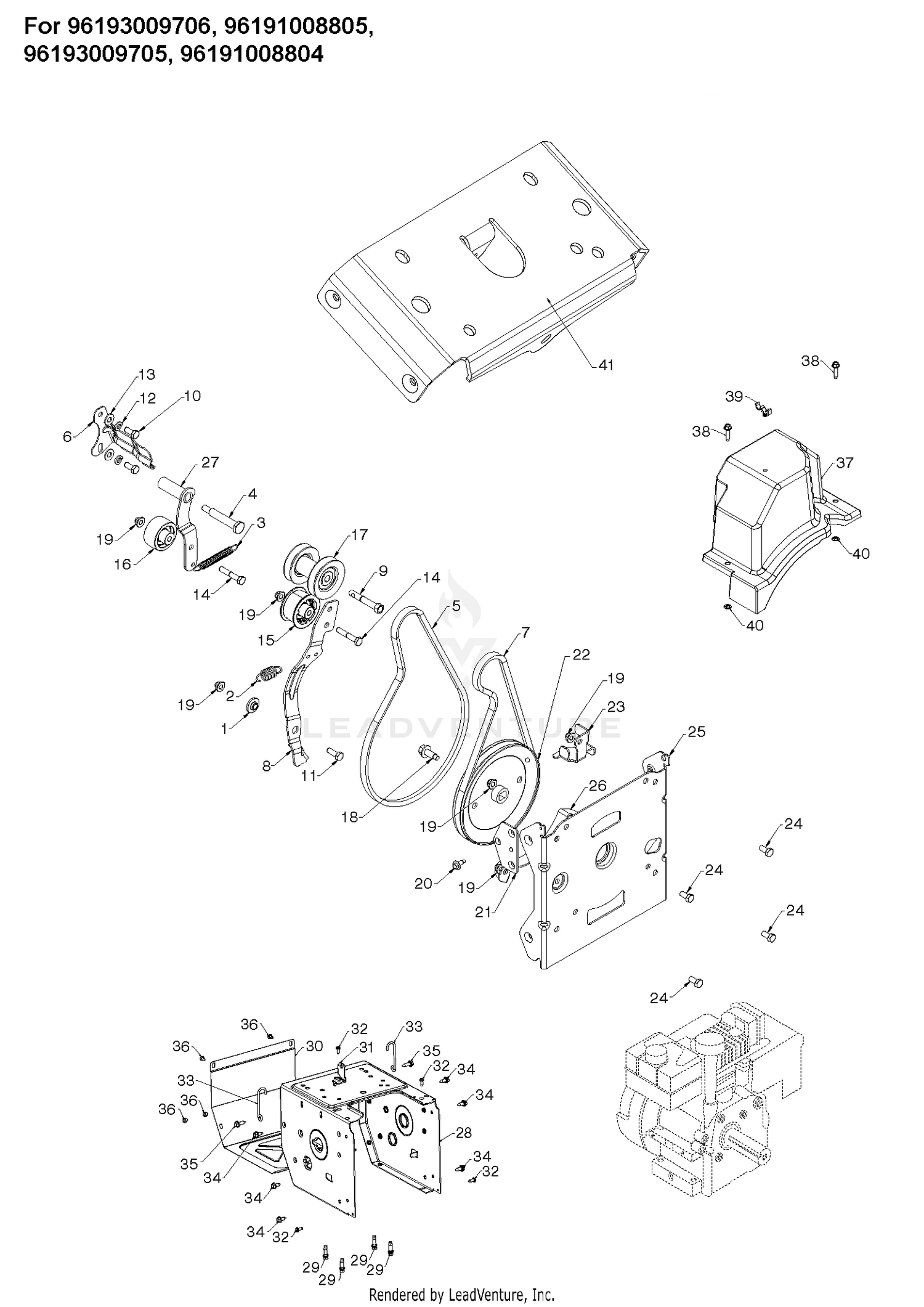

| Ref | Part Number | Description |
|---|
| 1 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 2 |
587031201 |
SPRING RETURN, IDLER ARM, IMPE Price: $4.99 |
| 3 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 4 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 5 |
584216102 |
BELT.DRIVE.SNOW.DUAL Price: $10.00 |
| 6 |
588492802 |
BELT KEEPER BRACKET Price: $5.99 |
| 7 |
501818201 |
LOW CRANK IMPELLER BELT Price: $12.00 |
| 8 |
580831106 |
ARM.IDLER.AUTO-PH.676 Price: $7.99 |
| 9 |
582388401 |
BOLT.ENGINE.PULLEY Price: $4.99 |
| 10 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $2.99 |
| 14 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 15 |
581141402 |
PULLEYIDLER.2.0.W/SPACER.CZ Price: $9.99 |
| 16 |
586880202 |
PULLEY.IDLER.FLNGLESS.W/SPACER Price: $9.99 |
| 17 |
587893703 |
PULLEY.ASM.IMPELLER/DRIVE Price: $27.99 |
| 19 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 532427942. Price: $5.99 |
| 20 |
585517801 |
HEX.WASHER.HEAD 1/4-20 X .65 Price: $2.99 |
| 21 |
590044602 |
BRACKET NUT BLACK ZINC PLATE Price: $4.99 |
| 22 |
536862701 |
PULLEYS This part replaces 590699201. Price: $27.99 |
| 23 |
587587202 |
GUIDE.LOWER.AUGER.BELT.479 Price: $8.99 |
| 24 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 25 |
581592503 |
NEEDS DESCRIPTION This part replaces 581592502. Price: $24.99 |
| 26 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 27 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA This part replaces 581338203. Price: $9.99 |
| 28 |
589264705 |
FRAME MS 668 Price: $99.99 |
| 30 |
580839505 |
COVER COVER.FRAME MS668 ORANGE Price: $49.99 |
| 31 |
501060403 |
BRACKET.SHIFTER.BZP Price: $6.99 |
| 32 |
582906901 |
SCREW.HEX HEAD W/COLLAR 1/4-20 Price: $2.99 |
| 33 |
588954501 |
WIREFORM.SUPPORT.CABLE Price: $6.99 |
| 34 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 35 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR Price: $2.99 |
| 37 |
581049901 |
COVER COVER.BELT This part replaces 587105401. Price: $22.99 |
| 38 |
000000000 |
Price: Call Us |
| 39 |
532145006 |
PUSH CLIP Price: $2.99 |
| 40 |
000000000 |
Price: Call Us |
| 41 |
583940502 |
BRACKET.FRAME.SUPPORT.BLACK Price: $27.99 |
