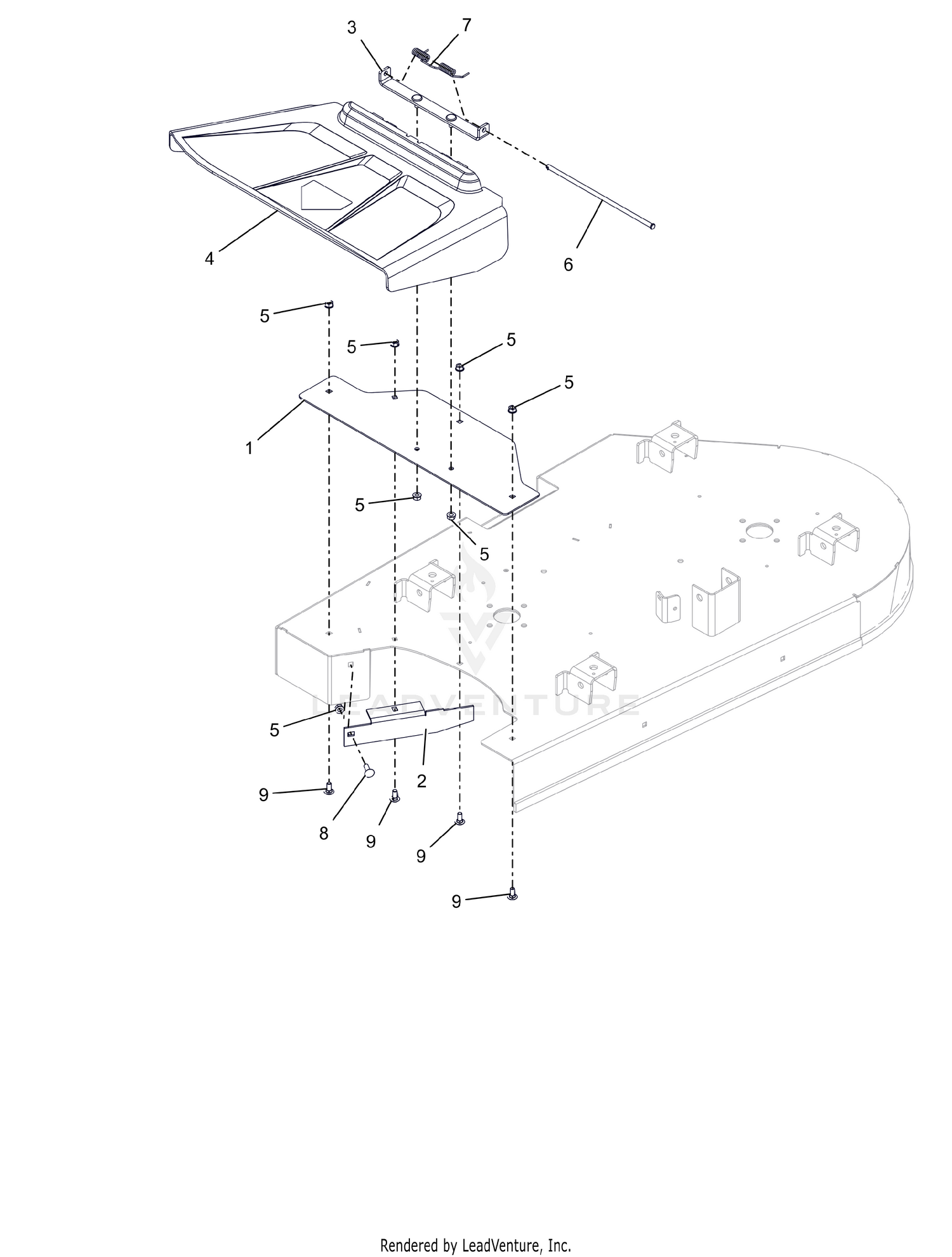

Discharge Chute and Baffle 42"
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 09153859 | PLATE, DECK - DISCHARGE (ORANGE) Price: $25.45 |
| 2 | 05292151 | STRIP, DEFLECTOR (BLACK) Price: $24.45 |
| 3 | 04799800 | WLDMT, Price: $19.45 |
| 4 | 04795000 | CHUTE, SIDE DISCHARGE Price: $40.95 |
| 5 | 06500840 | NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 6 | 06800205 | PIN, SLIC-.312X10.45 Price: $14.95 |
| 7 | 08300621 | SPRING-TORSION Price: $5.45 |
| 8 | 06200231 | BLT,RHSN .31-18X1.00 G5 ZCC Price: $1.45 |
