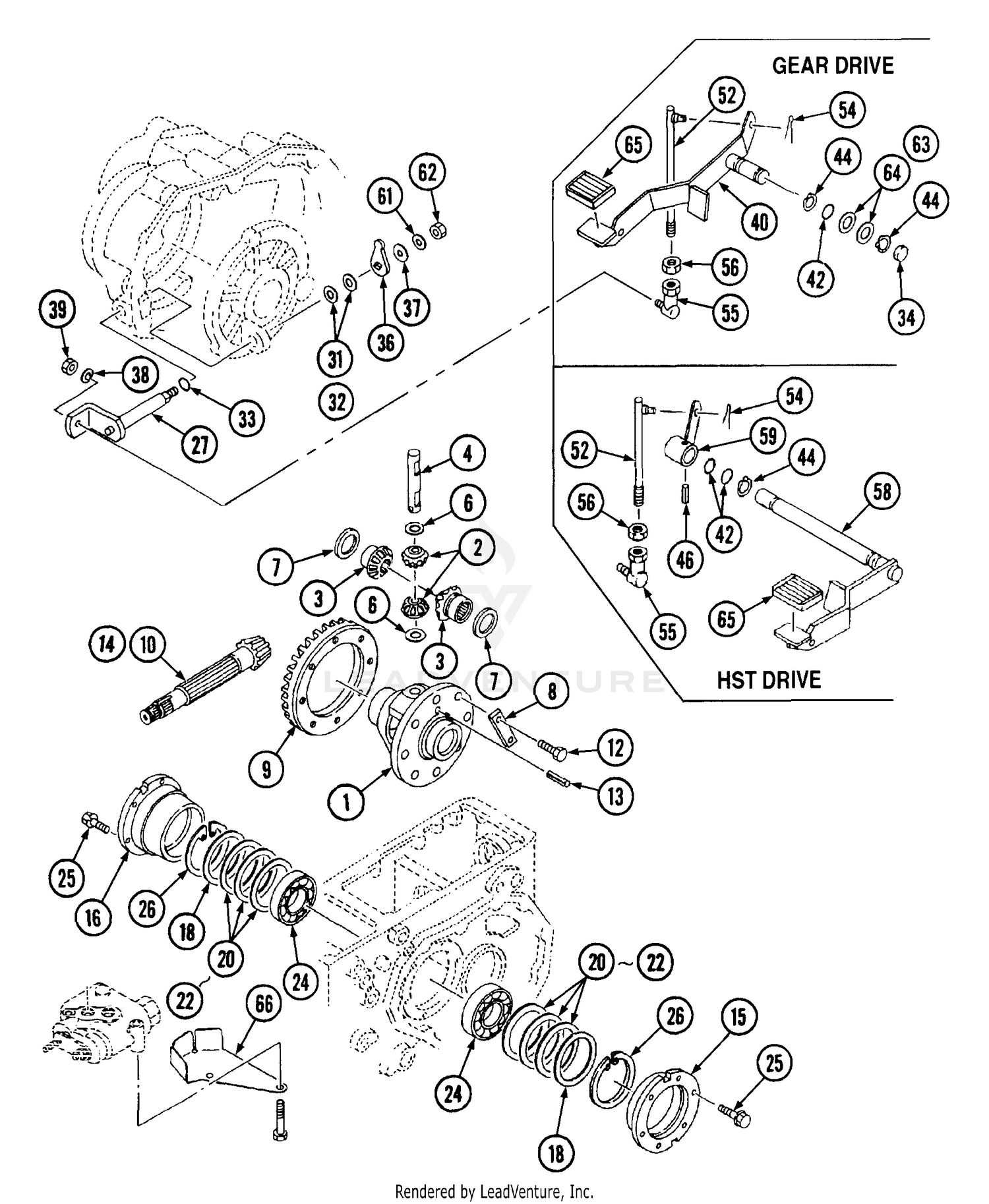

Final Drive Gear MFD (Part 1)
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 198417 | Wire Asm Inner/Sprg W/plunger Price: Call Us |
| 1 | MA-19061411000 | CASE DIFF Not Available Price: |
| 2 | 198070 | Shaft Asm Lift RH w/Inf Price: Call Us |
| 2 | MA-10211412001 | PINION Not Available Price: |
| 3 | 188822 | Pin Groove 5/16 Dia x 1.875 Price: Call Us |
| 3 | MA-10211413001 | GEAR Not Available Price: |
| 4 | 12000002 | E Ring #5133-62 Price: Call Us |
| 4 | MA-10211414000 | SHAFT,PINI Not Available Price: |
| 5 | 19211621 | Washer 21/32 x 1 x 21 Ga. Price: Call Us |
| 6 | 120183X | Bearing Nylon Blk 629 Id Price: Call Us |
| 6 | MA-10211415001 | THRUST WASHER Not Available Price: |
| 7 | 125631X | Grip Handle Price: Call Us |
| 7 | MA-10211416001 | THRUST WASHER Not Available Price: |
| 8 | 124526X | Button Plunger Price: Call Us |
| 8 | MA-10211417000 | WASHER Not Available Price: |
| 11 | 139865 | Link Lift LH Fixed Length Price: Call Us |
| 12 | 139866 | Link Lift RH Fixed Length Price: Call Us |
| 12 | MA-A0400110020 | BOLT Not Available Price: |
| 13 | 4939M | Retainer Spring Price: Call Us |
| 13 | MA-05500006040 | SPRING PIN Not Available Price: |
| 15 | 173288 | Link Front Price: Call Us |
| 15 | MA-19641431000 | HOLDER L.H Not Available Price: |
| 16 | 73350800 | Nut Jam Hex 1/2-13 unc Price: Call Us |
| 16 | MA-19641432000 | HOLDER R.H Not Available Price: |
| 17 | 175689 | Trunnion Price: Call Us |
| 18 | 73800800 | Nut Lock W/Wsh 1/2-13 unc Price: Call Us |
| 18 | MA-19641434000 | LINER Not Available Price: |
| 19 | 139868 | Arm Suspension Rear Price: Call Us |
| 20 | 194209 | Pin Cotter 7/16 Bow Tie Lock Price: Call Us |
| 20 | MA-19641435000 | LINER Not Available Price: |
| 21 | MA-19641436000 | LINER Not Available Price: |
| 22 | MA-19641437000 | LINER Not Available Price: |
| 24 | MA-10211438000 | BALL BEARING Not Available Price: |
| 25 | MA-F1540108025 | BOLT,W/SPRING WASH Not Available Price: |
| 26 | MA-07410009501 | RING, SNAP Not Available Price: |
| 27 | MA-19641439AG0 | SHIFTER Not Available Price: |
| 31 | 169865 | Bearing Pvt Lift Price: Call Us |
| 31 | MA-07310001504 | LINER Not Available Price: |
| 32 | MA-07310001512 | LINER Not Available Price: |
| 33 | MA-08301100120 | O-RING Not Available This part replaces MA-08300100120. Price: |
| 34 | MA-08340020070 | SEAL CAP 14 Not Available Price: |
| 36 | MA-19641438000 | ARM Not Available Price: |
| 37 | MA-03500151026 | WASHER Not Available Price: |
| 38 | MA-A3600100802 | WASHER SPRING Not Available Price: |
| 39 | MA-A3010108002 | NUT Not Available Price: |
| 40 | MA-19641441AG0 | PEDAL DIFF Not Available Price: |
| 42 | MA-08300100160 | O-RING Not Available Price: |
| 44 | MA-07400002000 | RING, SNAP Not Available Price: |
| 52 | MA-19641442000 | ROD Not Available Price: |
| 54 | MA-05200130020 | COTTER PIN Not Available Price: |
| 55 | MA-37041577000 | JOINT,BALL Not Available Price: |
| 56 | MA-A3030110002 | NUT Not Available Price: |
| 61 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 62 | MA-A3030110002 | NUT Not Available Price: |
| 63 | MA-07310002004 | LINER Not Available Price: |
| 64 | MA-07310002010 | LINER Not Available Price: |
| 65 | MA-10320228000 | COVER PEDAL Not Available Price: |
