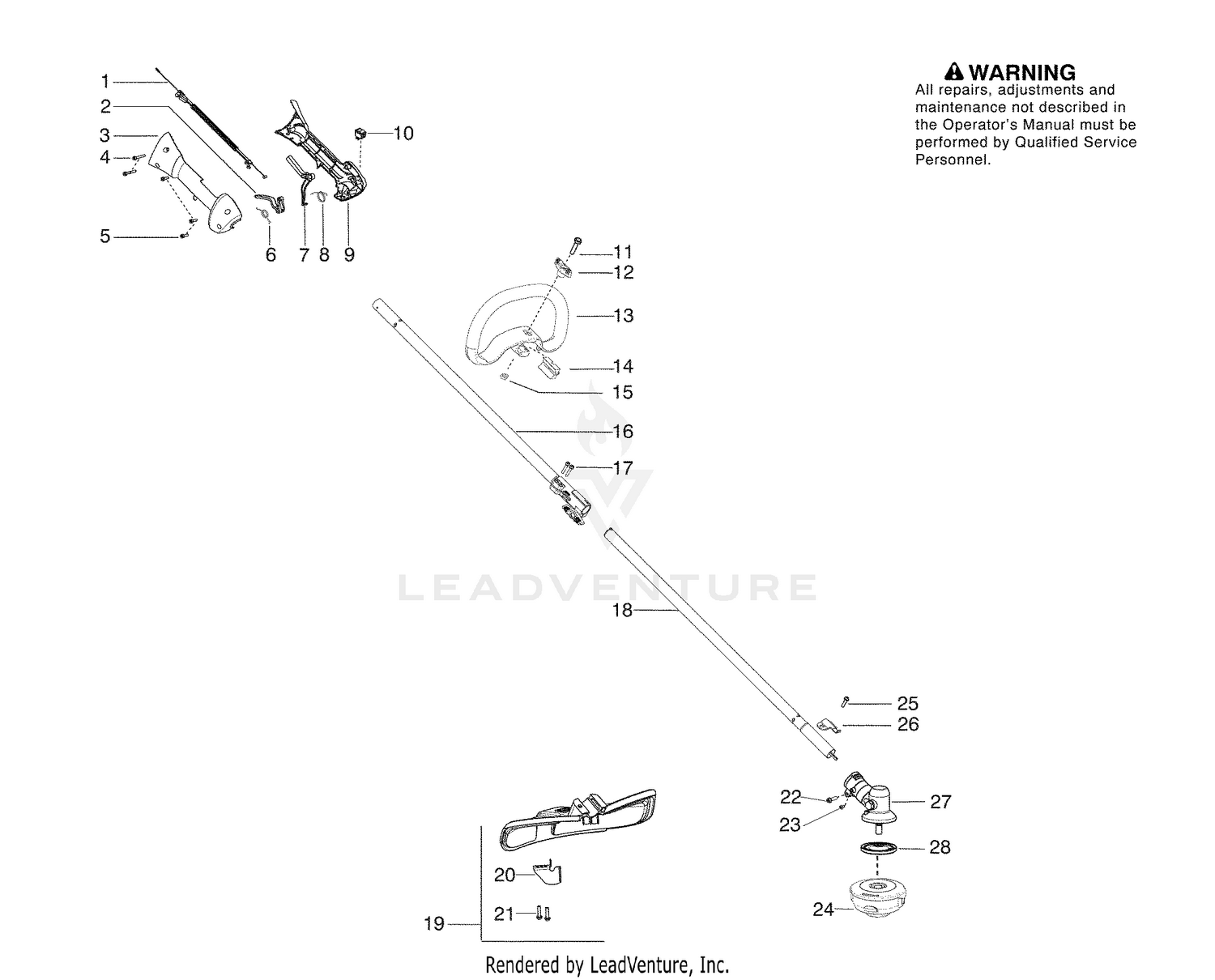

Repair Parts
Parts (93)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 545125301 | ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 1 | 70-4160 | GASKET Price: $7.70 |
| 2 | 545066001 | TRIGGER THROTTLE Price: $5.99 |
| 2 | 70-6870 | KEY Price: $10.53 |
| 3 | 545062001 | HOUSING-THROTTLE RH Price: $8.99 |
| 3 | 70-4130 | HOUSING Price: $241.20 |
| 4 | 530016448 | SCREW Price: $2.99 |
| 4 | 70-6710 | WASHER Price: $4.69 |
| 5 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 5 | 70-4590 | PLUG Price: $14.04 |
| 6 | 530016454 | SPRING TRIGGER Price: $4.99 |
| 6 | 70-4150 | GASKET Price: $15.38 |
| 7 | 530059804 | THROTTLE LOCKOUT Price: $4.99 |
| 7 | 70-6530 | BOLT Price: $2.84 |
| 8 | 545045601 | SPRING LOCKOUT Price: $4.99 |
| 8 | 70-4210 | PLATE Price: $17.61 |
| 9 | 545067001 | HSG THROTTLE LH Price: $9.99 |
| 9 | 70-6550 | DISCONTINUED Price: Call Us |
| 10 | 545049301 | KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 10 | 70-6520 | BOLT Price: $4.01 |
| 11 | 70-6810 | WASHER Price: $5.36 |
| 12 | 70-4220 | SWIVELING LEVER ASM Price: $194.71 |
| 13 | 70-4370 | SPRING Price: $14.33 |
| 14 | 70-6860 | KEY Price: $10.53 |
| 15 | 70-6480 | PIN Price: $1.83 |
| 16 | 70-4380 | SPRING Price: $5.21 |
| 17 | 503200725 | SCREW Price: $2.99 |
| 17 | 70-4320 | LEVER ASSEMBLY Price: $165.41 |
| 18 | 70-4340 | SHACKLE ASSEMBLY Price: $38.08 |
| 19 | 70-4250 | TENSION LEVER ASSEMBLY Price: $286.61 |
| 20 | 530052286 | Limiter-Line Price: $0.68 |
| 20 | 70-4580 | CAP Price: $3.29 |
| 21 | 530015814 | SCREW Price: $0.17 |
| 21 | 70-4230 | BUSHING Price: $22.98 |
| 22 | 530016014 | SCREW - CARB. ADAPTOR Price: $2.99 |
| 22 | 70-6510 | O-RING Price: $3.46 |
| 23 | 545003902 | SCREW Price: $2.99 |
| 23 | 70-4360 | PLUG Price: $9.65 |
| 24 | 537338310 | TRIMMER HEAD T25 This part replaces 537338302. Price: $27.99 |
| 24 | 70-4350 | SHAFT Price: $11.57 |
| 25 | 530015771 | SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 25 | 70-4400 | COVER Price: $264.67 |
| 26 | 530057554 | BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 26 | 70-6740 | BOLT Price: $3.97 |
| 27 | 530096295 | ASSY GEARBOX Price: $34.99 |
| 27 | 70-4140 | DISCONTINUED Price: Call Us |
| 28 | 537234901 | DRIVE DISC Price: $19.99 |
| 28 | 70-6790 | PACKING Price: $12.55 |
| 29 | 70-6520 | BOLT Price: $4.01 |
| 30 | 99-2251 | CAPSULE This part replaces 70-4120. Price: $5.91 |
| 31 | 70-3890 | WASHER Price: $4.45 |
| 32 | 70-4310 | NUT Price: $3.39 |
| 33 | 70-4440 | NUT Price: $14.24 |
| 34 | 70-4450 | NUT Price: $10.86 |
| 35 | 70-6690 | WASHER Price: $2.18 |
| 36 | 70-6770 | NUT Price: $1.80 |
| 37 | 70-6500 | O-RING Price: $2.10 |
| 38 | 70-4330 | BUSHING Price: $19.24 |
| 39 | 70-6760 | BOLT Price: $2.19 |
| 40 | 70-4550 | PLATE Price: $86.13 |
| 41 | 70-6750 | BOLT Price: $4.49 |
| 42 | 70-6730 | BOLT Price: $3.57 |
| 43 | 70-4560 | ADJUSTING LEVER SUB ASM Price: $103.53 |
| 44 | 70-6920 | SEAL Price: $7.99 |
| 45 | 70-4460 | PLATE Price: $11.24 |
| 46 | 70-4500 | SPRING Price: $4.31 |
| 47 | 70-4520 | SPRING Price: $8.25 |
| 48 | 70-4510 | SPRING Price: $8.53 |
| 49 | 70-4490 | CUP Price: $18.12 |
| 50 | 70-4570 | STOP LEVER SUB ASSEMBLY Price: $39.29 |
| 51 | 70-4530 | COVER Price: $7.00 |
| 52 | 70-6890 | O-RING Price: $4.85 |
| 53 | 70-4420 | BUSHING Price: $21.40 |
| 54 | 70-4480 | SHAFT Price: $113.68 |
| 55 | 70-4470 | LEVER Price: $116.24 |
| 56 | 70-4390 | SCREW Price: $43.27 |
| 57 | 70-4410 | PIN Price: $5.36 |
| 58 | 70-4300 | NUT Price: $2.80 |
| 59 | 70-4240 | E-RING Price: $3.43 |
| 60 | 70-4270 | DISCONTINUED Price: Call Us |
| 61 | 70-6570 | WASHER Price: $2.07 |
| 62 | 70-4280 | DISCONTINUED Price: Call Us |
| 63 | 70-4290 | DISCONTINUED Price: Call Us |
| 64 | 70-4540 | SLIDER Price: $19.04 |
| 65 | 70-6610 | WASHER Price: $2.56 |
| 66 | 70-6490 | RING Price: $3.41 |
| 67 | 70-4200 | PLATE Price: $40.89 |
| 68 | 70-4190 | SLEEVE Price: $175.44 |
| 69 | 70-4180 | NUT Price: $5.36 |
| 70 | 70-6670 | WASHER Price: $2.15 |
| 71 | 70-4170 | FLYWEIGHT ASSEMBLY Price: $454.50 |
| 72 | 70-6560 | NUT Price: $3.28 |
| 73 | 70-4430 | SCREW Price: $8.39 |
