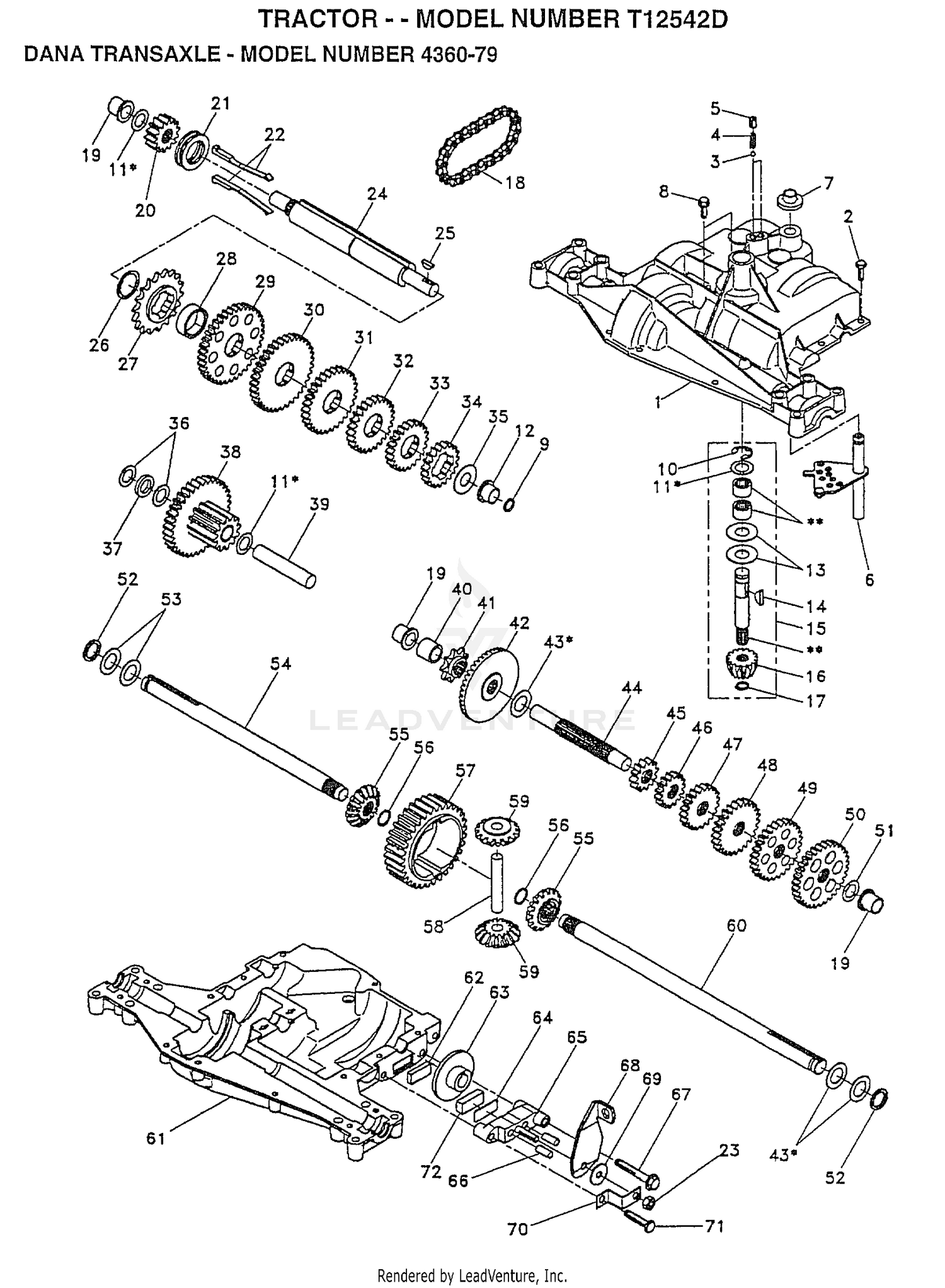

| Ref | Part Number | Description |
|---|
| 1 |
142671 |
HOUSING UPPER TRN Price: Call Us |
| 1 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
2274J |
SUB= 74760412 Price: Call Us |
| 2 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 3 |
134400 |
SUB= 68003 Price: Call Us |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
3220-3 |
NUT-HJ Price: $0.28 |
| 6 |
138235 |
KIT SHIFTER ASM Price: Call Us |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 7 |
134399 |
SHIFTER BOOT Price: Call Us |
| 8 |
134791 |
SCREW TAP W/SEAL Price: Call Us |
| 8 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 9 |
138241 |
SQUARE RING Price: Call Us |
| 9 |
5-1226 |
WASHER Price: $3.90 |
| 10 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 10 |
142672 |
SUB= 2225J Price: Call Us |
| 11 |
134793 |
ASM KIT SHIM 4689 Price: Call Us |
| 11 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
142673 |
BEARING FLAN-DANA Price: Call Us |
| 12 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 13 |
120415X |
WASHER T Price: Call Us |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
105-3822 |
HYD CYLINDER ASM Price: $533.45 |
| 14 |
142674 |
KEY WOODRUFF-DANA Price: Call Us |
| 15 |
138234 |
AS KIT INPUT SHFT Price: Call Us |
| 15 |
322-1 |
SCREW-HH Price: $0.22 |
| 16 |
105-3828 |
SPACER Price: $5.10 |
| 16 |
110078X |
PINION 14T T Price: Call Us |
| 17 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 18 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 19 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 19 |
105911X |
BEARING.FLNG.5510 Price: Call Us |
| 20 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 20 |
142675 |
GEAR SPUR 14 TTH Price: Call Us |
| 21 |
136-8484 |
FRAME-PULL, LH This part replaces 104-2054. Price: $382.66 |
| 21 |
138246 |
COLLAR CLUTCH Price: Call Us |
| 22 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 22 |
138236 |
ASM KIT CLTCH KEY Price: Call Us |
| 23 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 23 |
73810500 |
NUT.LOCK.5/16-24 Price: Call Us |
| 24 |
142676 |
SHAFT INTERM DANA Price: Call Us |
| 24 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 25 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 25 |
2244J |
WOODRUFF KEY Price: Call Us |
| 26 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 27 |
120470X |
SPROCKET 18T T Price: Call Us |
| 27 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 28 |
110070X |
SPACER YT Price: Call Us |
| 28 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 29 |
142677 |
GEAR SPUR 37 TTH Price: Call Us |
| 29 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 30 |
142681 |
GEAR SPUR 35 TTH Price: Call Us |
| 30 |
83-1690 |
HOSE-HYD Price: $68.48 |
| 31 |
120405X |
SUB= 124644X Price: Call Us |
| 31 |
63-3850 |
HOSE ASM Price: $83.26 |
| 32 |
108980X |
GEAR 25T LT Price: Call Us |
| 33 |
120406X |
GEAR SPUR 22 TT Price: Call Us |
| 34 |
134796 |
SPUR GEAR 19T Price: Call Us |
| 36 |
2232J |
WASHER 025 Price: Call Us |
| 37 |
108978X |
SPACER Price: Call Us |
| 38 |
110079X |
ASSM GEAR COMB Price: Call Us |
| 39 |
124639X |
SHAFT IDLER Price: Call Us |
| 40 |
120472X |
SPACER T Price: Call Us |
| 41 |
105928X |
SPROCKET 9T LT Price: Call Us |
| 42 |
110084X |
SUB= 167148 Price: Call Us |
| 43 |
134394 |
ASM KIT SHIM Price: Call Us |
| 44 |
120473X |
SHAFT T Price: Call Us |
| 45 |
142678 |
GEAR SPUR 12 TTH Price: Call Us |
| 46 |
142679 |
GEAR SPUR 15 TTH Price: Call Us |
| 47 |
120407X |
SUB= 124641X Price: Call Us |
| 49 |
120408X |
GEAR 28T T Price: Call Us |
| 51 |
2226J |
WASHER 060 Price: Call Us |
| 52 |
134401 |
NEOPRENE WASHER Price: Call Us |
| 53 |
2264J |
WASHER 031 Price: Call Us |
| 54 |
120474X |
SUB= 154658 Price: Call Us |
| 55 |
110081X |
GEAR 15T T Price: Call Us |
| 57 |
110071X |
SUB= 120478X Price: Call Us |
| 58 |
120952X |
SHAFT T Price: Call Us |
| 59 |
110082X |
GEAR 1ST T Price: Call Us |
| 60 |
120475X |
SUB= 154659 Price: Call Us |
| 61 |
142680 |
HOUSING LOWER TNS Price: Call Us |
| 62 |
120961X |
PUCK T Price: Call Us |
| 63 |
7294J |
BRAKE DISC. T Price: Call Us |
| 64 |
108989X |
SPACER LT Price: Call Us |
| 65 |
120953X |
SUB= 918120953X Price: Call Us |
| 66 |
120954X |
PIN T Price: Call Us |
| 67 |
134799 |
TAP SCREW Price: Call Us |
| 68 |
138244 |
SUB= 108992X Price: Call Us |
| 69 |
108996X |
WASHER LT Price: Call Us |
| 70 |
120956X |
NLA Price: Call Us |
| 72 |
120951X |
PUCK T Price: Call Us |
