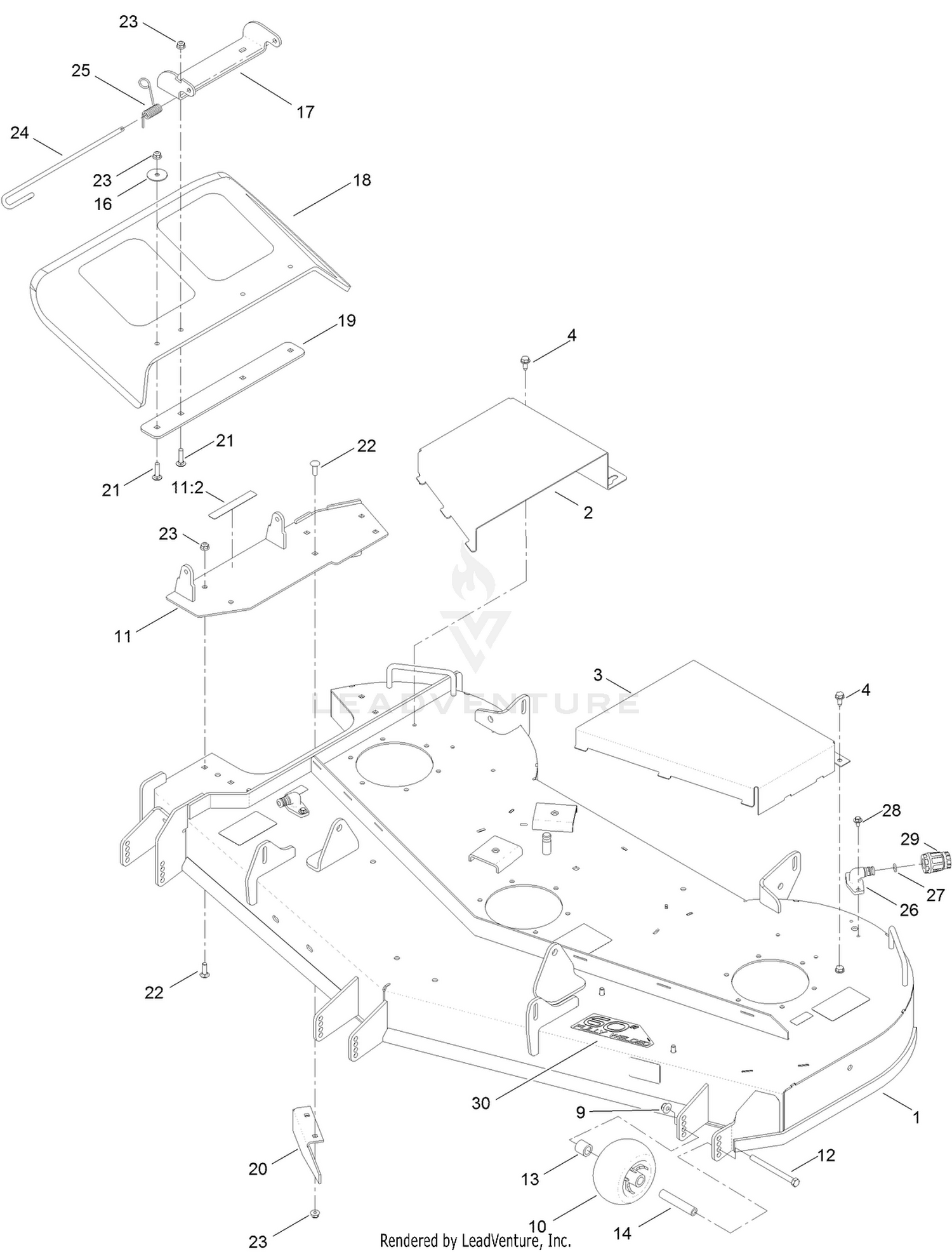

| Ref | Part Number | Description |
|---|
| 2 |
131-4051-05 |
COVER-BELT, RH This part replaces 117-7404-05. Price: $49.99 |
| 3 |
131-4050-05 |
COVER-BELT, LH This part replaces 117-7405-05. Price: $49.99 |
| 4 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 11 |
130-0763 |
PIVOT-DEFLECTOR Price: $87.99 |
| 12 |
323-23 |
SCREW-HH Price: $2.07 |
| 13 |
104-0892 |
SPACER-AXLE, REAR Price: $4.49 |
| 14 |
98-7912 |
TUBE-SPANNER Price: $12.23 |
| 16 |
3256-68 |
WASHER-FLAT Price: $2.69 |
| 17 |
114-1648-05 |
BRACKET-DEFLECTOR, UPPER Price: $41.99 |
| 18 |
117-1270 |
DEFLECTOR Price: $74.99 |
| 19 |
115-5048-03 |
PLATE-DEFLECTOR Price: $41.99 |
| 20 |
115-9653-03 |
BAFFLE-CUTOFF Price: $23.99 |
| 21 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 22 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 23 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 24 |
109-8854 |
PIN-CHUTE Price: $14.99 |
| 25 |
138-7232 |
SPRING-TORSION This part replaces 121-2983. Price: $2.49 |
| 26 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $6.09 |
| 27 |
46-6290 |
O-RING Price: $2.59 |
| 28 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 29 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
