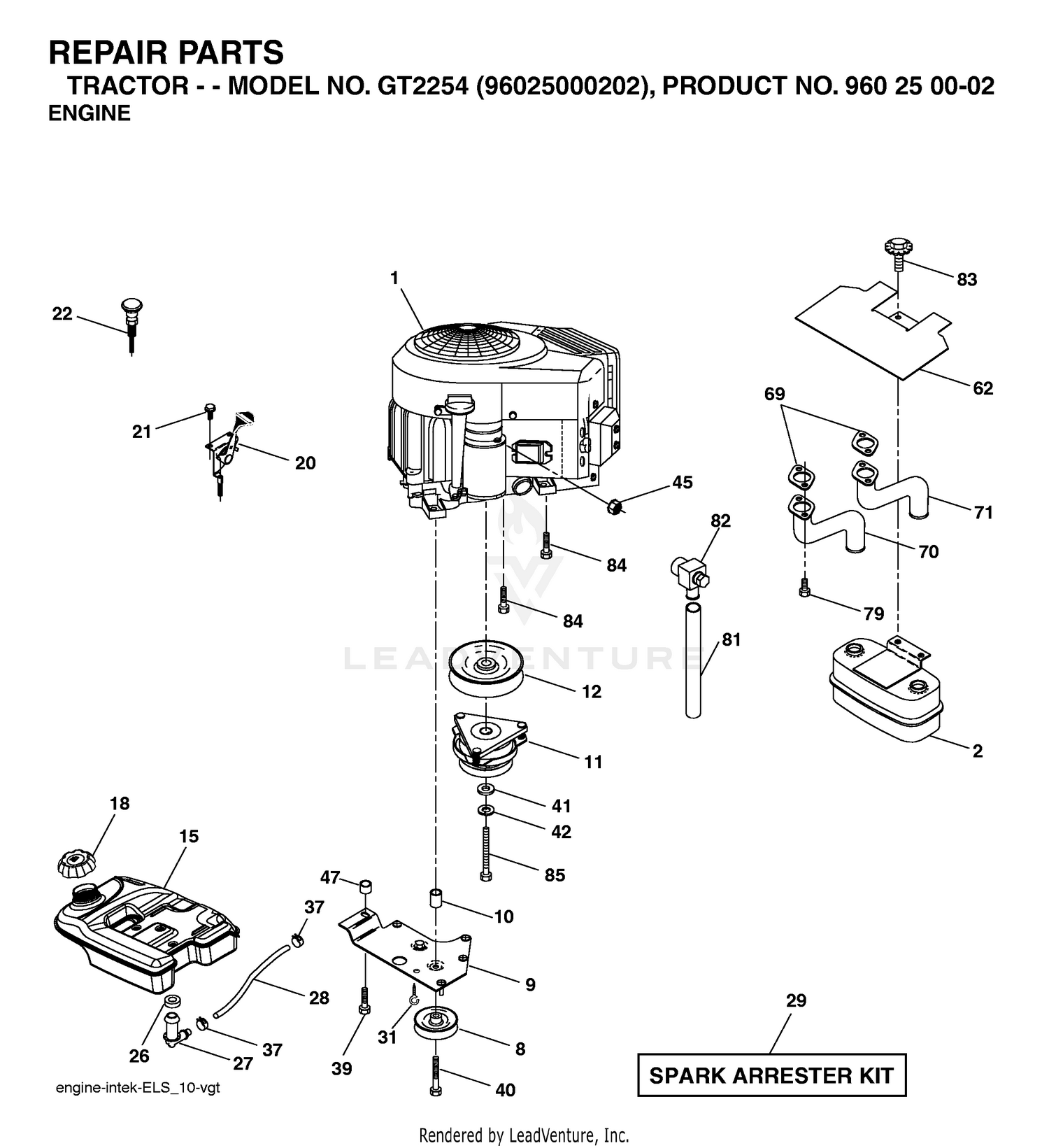

| Ref | Part Number | Description |
|---|
| 2 |
100-8185 |
HOUSING-PINION Price: $333.67 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
100-8186 |
CAP-END Price: $115.89 |
| 4 |
100-8187 |
SHAFT-PINION Price: $872.80 |
| 5 |
100-8188 |
SHAFT-CROSS Price: $898.17 |
| 6 |
100-8189 |
GEAR-FORGED, 23T Price: $1,016.07 |
| 7 |
100-8190 |
GEAR-FORGED, 17T Price: $784.29 |
| 8 |
254-20 |
CUP-BEARING Price: $44.82 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
254-42 |
CONE-BEARING Price: $94.24 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 10 |
100-8182 |
RING-RETAINING,INTERNAL Price: $17.90 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 11 |
100-8191 |
CAP-END, CLOSED Price: $115.89 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 12 |
100-8180 |
SEAL-OIL Price: $61.51 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 13 |
100-8181 |
SEAL-OIL Price: $35.97 |
| 14 |
100-8192 |
NUT-LOCK Price: $52.59 |
| 15 |
100-8193 |
SHIM-.003, GREEN Price: $17.37 |
| 15 |
100-8194 |
SHIM-.005, BLUE Price: $17.37 |
| 15 |
100-8195 |
SHIM-.020, YELLOW Price: $30.04 |
| 15 |
532179115 |
TANK.FUEL.5.0 LEFT.FILL.YTGT Price: $89.99 |
| 16 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 17 |
100-5812 |
PLUG Price: $17.99 |
| 18 |
100-8196 |
KEY Price: $17.51 |
| 18 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 19 |
100-5847 |
O-RING Price: $19.99 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532188669 |
LINE.FUEL.35.25" Price: $7.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
532176069 |
TUBE.EXHAUST.B&S.VGT.LH Price: $51.99 |
| 71 |
532176070 |
TUBE.EXHAUST.B&S.VGT.RH Price: $64.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532188800 |
TUBE, DRAIN, OIL Price: $2.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
