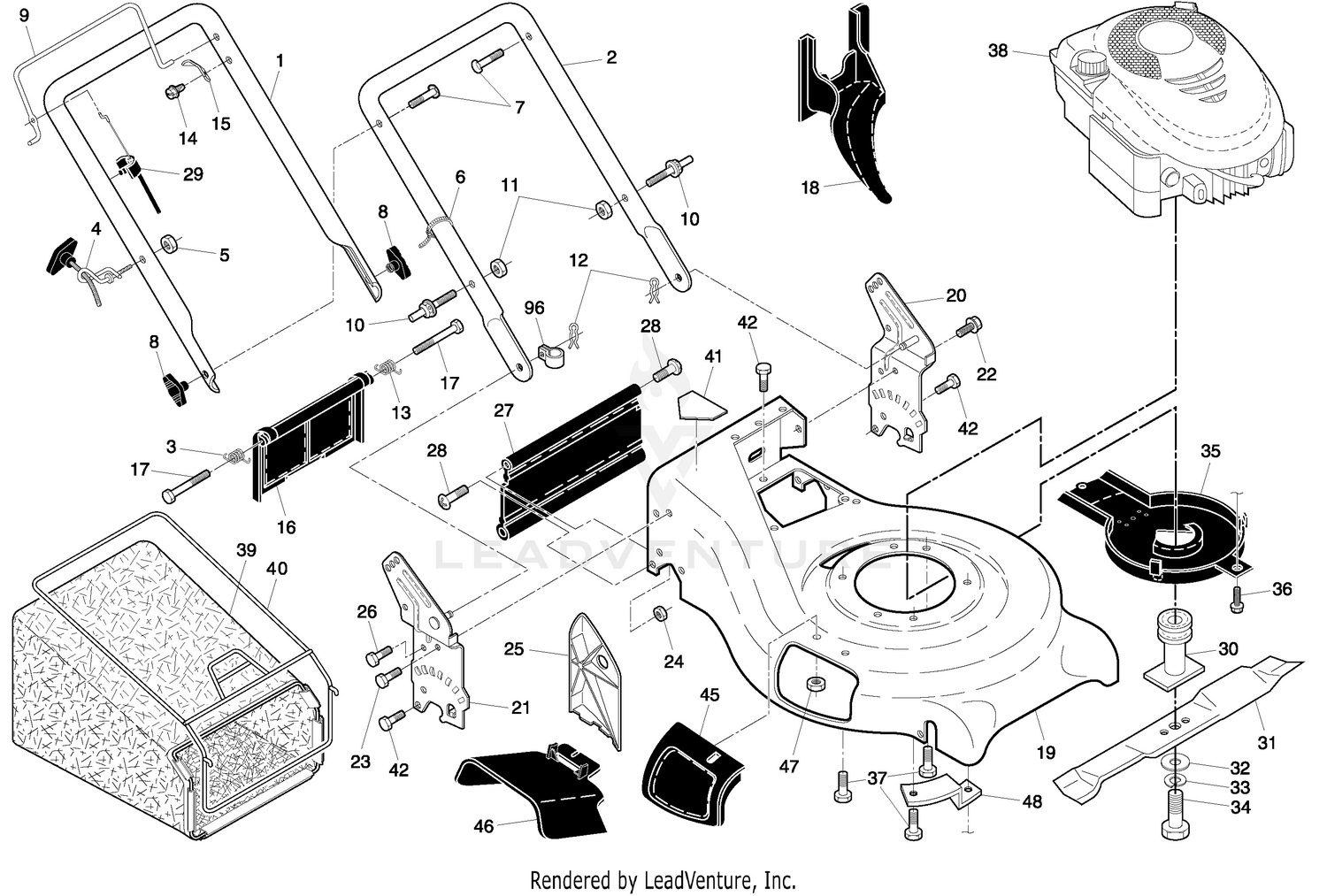

| Ref | Part Number | Description |
|---|
| 1 |
105-3801 |
SECTION 1 ASM Price: $1,257.32 |
| 1 |
194203X479 |
Handle, Upper Price: Call Us |
| 2 |
105-3802 |
SECTION 2 ASM Price: $1,265.66 |
| 2 |
193664X479 |
Handle, Lower Price: Call Us |
| 3 |
105-3803 |
SECTION 3 ASM Price: $652.03 |
| 3 |
405416 |
Spring, Rear Door, RH Price: Call Us |
| 4 |
105-3804 |
SECTION 4 ASM Price: $975.63 |
| 4 |
194788 |
Rope Guide Price: Call Us |
| 5 |
132004 |
Nut, Hex, with Lockwasher Insert 1/4-20 Price: Call Us |
| 5 |
93-1386 |
SECTION 5 ASM Price: $804.90 |
| 6 |
353-772 |
COVER-LEFT Price: $415.33 |
| 6 |
664-26 |
Wire, Tie Price: Call Us |
| 7 |
191574 |
Bolt, Handle 5/16-18 x 2-5/8 Price: Call Us |
| 7 |
3217-7 |
NUT-HEX Price: $0.28 |
| 8 |
189713X428 |
Knob, Handle Price: Call Us |
| 8 |
353-853 |
BOLT Price: $39.87 |
| 9 |
194199X421 |
Control Bar Price: Call Us |
| 9 |
353-668 |
PLATE-COVER Price: $508.66 |
| 10 |
188821 |
Pin, Handle Price: Call Us |
| 10 |
353-766 |
CART-RELIEF Price: $301.64 |
| 11 |
353-721 |
PLUG Price: $44.12 |
| 11 |
751153 |
Nut, Hex Price: Call Us |
| 12 |
354-122 |
DISC-SEAL Price: $6.92 |
| 12 |
51793 |
Cotter, Hairpin Price: Call Us |
| 13 |
405415 |
Spring, Rear Door, LH Price: Call Us |
| 14 |
750634 |
Screw Price: Call Us |
| 15 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 16 |
401815X428 |
Rear Door Assembly Price: Call Us |
| 17 |
184193 |
Bolt, Rear Door Price: Call Us |
| 18 |
198170 |
Plug, Mulcher Price: Call Us |
| 19 |
402487 |
Kit, Housing Price: Call Us |
| 20 |
192980X479 |
Handle Bracket Asembly, LH Price: Call Us |
| 21 |
192979X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 22 |
150078 |
Screw, Hex Washer Head Price: Call Us |
| 23 |
163183 |
Bolt, Hex Head 5/16-18 x 5/8 Price: Call Us |
| 24 |
73800500 |
Nut, Hex, with Lockwasher Insert 5/16-18 Price: Call Us |
| 25 |
161333 |
Baffle, Side Price: Call Us |
| 26 |
163409 |
Screw, Hi-Lo Thread #12 x 5/8 Price: Call Us |
| 27 |
192876 |
Skirt, Rear Price: Call Us |
| 28 |
88652 |
Screw, Hinge 1/4-20 x 1.25 Price: Call Us |
| 29 |
191221 |
Cable, Operator Presence Price: Call Us |
| 30 |
189179 |
Blade Adapter / Pulley Price: Call Us |
| 31 |
406712 |
Blade, 21" Price: Call Us |
| 32 |
851074 |
Washer Price: Call Us |
| 33 |
850263 |
Washer, Lock Price: Call Us |
| 34 |
851084 |
Bolt, Hex Head Price: Call Us |
| 35 |
405843 |
Debris Shield Price: Call Us |
| 36 |
192325 |
Bolt Price: Call Us |
| 37 |
150406 |
Bolt, Engine Price: Call Us |
| 39 |
411061 |
Grassbag Price: Call Us |
| 40 |
411951 |
Frame, Grassbag Price: Call Us |
| 41 |
404763 |
Danger Decal Price: Call Us |
| 42 |
54583 |
Screw Price: Call Us |
| 45 |
183058X428 |
Mulcher Door Assembly Price: Call Us |
| 46 |
169699X428 |
Discharge Guard Price: Call Us |
| 47 |
88349 |
Nut, Hex Price: Call Us |
| 48 |
188839X004 |
Mounting Bracket, Debris Shield Price: Call Us |
| 96 |
197991 |
Clip, Cable Price: Call Us |
| 193733 |
Operator's |
Manual, English Price: Call Us 193733 |
| 193736 |
Operator's |
Manual, French Price: Call Us 193736 |
