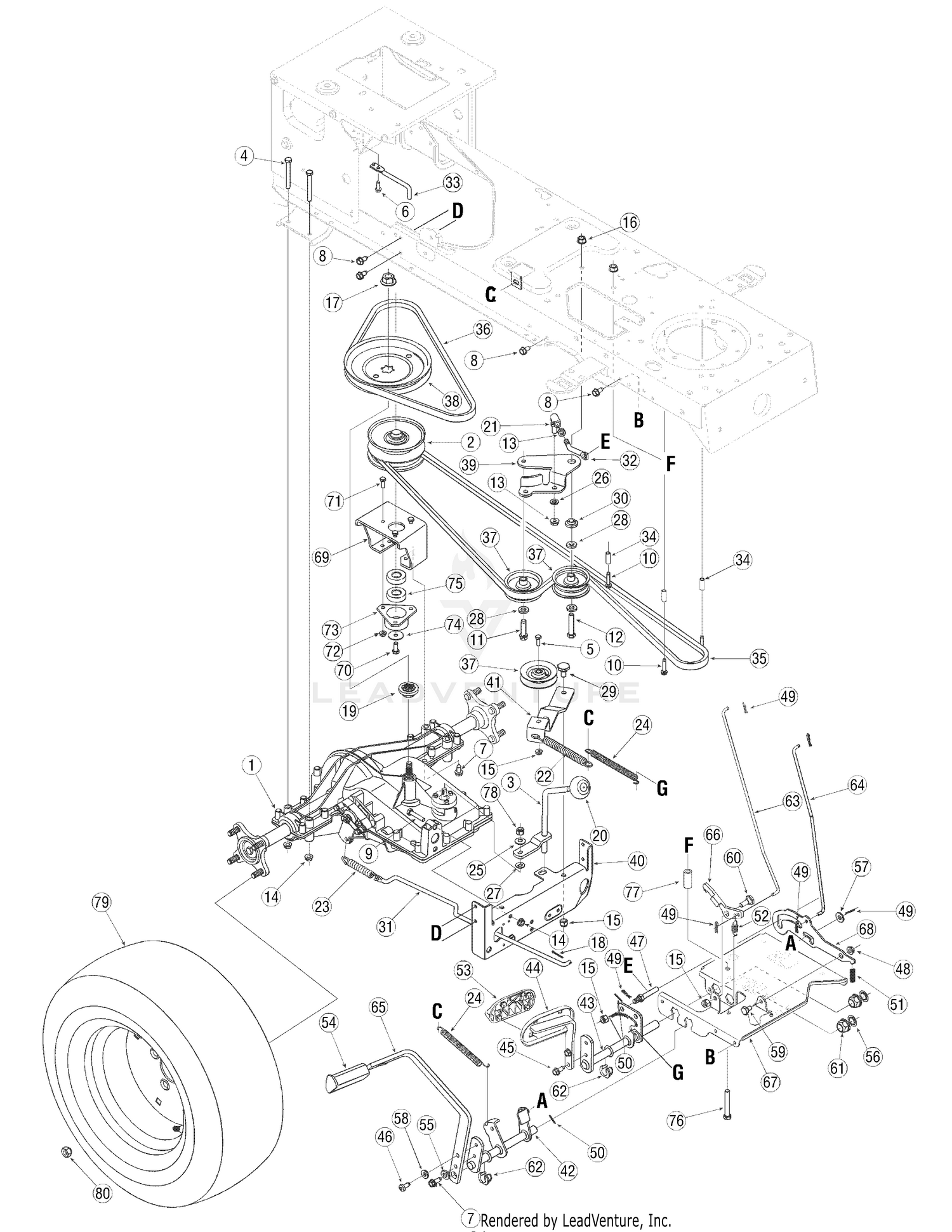

| Ref | Part Number | Description |
|---|
| 1 |
753-05002 |
TRANS ASSEMBLY-COMP 2SPD Not Available Price: |
| 2 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 656-04015. Price: $90.80 |
| 3 |
647-04023 |
ROD ASSEMBLY-SHIFT Not Available Price: |
| 4 |
710-0176 |
Screw, 5/16-18, 2.75, Gr5 Price: $3.89 |
| 5 |
710-0347 |
Screw, 3/8-16, 1.75, Gr5 Price: $4.39 |
| 6 |
710-0642 |
Screw, 1/4-20, 0.750 Price: $4.05 |
| 7 |
710-0650 |
Screw, 5/16-18, 0.875 Price: $3.71 |
| 8 |
710-0726 |
Screw, 5/16-12, 0.750 Price: $3.82 |
| 9 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 10 |
710-0809 |
Screw, 1/4-20, 1.250 Price: $6.37 |
| 11 |
710-1007 |
Screw, Sems, 3/8-16, 1.500 Price: $5.71 |
| 12 |
710-3011 |
Screw, 3/8-16, 2.25, Gr5 Price: $6.49 |
| 13 |
712-0241 |
Nut, Hex, 3/8-24, Gr5 Price: $3.86 |
| 14 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF, Nylon Price: $3.56 |
| 15 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF, Nylon Price: $3.68 |
| 16 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 17 |
912-0702 |
Flange Nut, 7/16-20 This part replaces 712-0702. Price: $16.10 |
| 18 |
714-0507 |
Pin, Cotter, 3/32 x.750 Price: $3.93 |
| 19 |
918-0771A |
PULLEY HUB Not Available This part replaces 718-0771A. Price: |
| 20 |
720-04028 |
Knob, Shift Price: $9.44 |
| 21 |
923-3018 |
Ball Joint This part replaces 723-3018. Price: $15.50 |
| 22 |
932-0478 |
Spring, Extension This part replaces 732-0478. Price: $11.56 |
| 23 |
732-0716D |
Extension Spring, .59 OD x 4.00 LG This part replaces 732-0716C. Price: $11.49 |
| 24 |
732-0963 |
Spring, Extension,.50 Dia x 6.37 Price: $8.91 |
| 25 |
736-0105 |
Washer, Bell,.375 x.870 x.063 Price: $3.96 |
| 26 |
736-0169 |
Washer, Lock, 3/8, Regular Duty Price: $3.33 |
| 27 |
736-0642 |
FLAT WASHER .44 x .75 x .06 Not Available Price: |
| 28 |
736-3010 |
Washer, Flat,.407x.812x.135, Ht Price: $4.02 |
| 29 |
738-0322A |
Shoulder Screw, .625 x .217 This part replaces 7380322. Price: $5.94 |
| 30 |
738-0372B |
Spacer, Shoulder, 1.00 x.38 x.38 Price: $8.78 |
| 31 |
747-04136 |
BRAKE ROD Not Available Price: |
| 32 |
747-1127 |
IDLER ADJUSTMENT ROD Not Available Price: |
| 33 |
747-1185A |
TRANSMISSION BELT GUARD ROD Not Available Price: |
| 34 |
750-0566A |
Spacer,.260 x.372 x 1.030 Price: $9.17 |
| 35 |
954-0467A |
V Belt, 5L, 90.93 Poly This part replaces 754-0467. Price: $46.63 |
| 36 |
954-0468 |
Upper drive Belt This part replaces 754-0468. Price: $28.07 |
| 37 |
756-04224 |
Pulley, Flat Idler, 2.75 Price: $24.80 |
| 38 |
956-0665 |
Transmission Pulley, 8.5 This part replaces 756-0665. Price: $64.59 |
| 39 |
783-04442 |
Idler Bracket, Center Double Price: $31.46 |
| 40 |
783-0667B |
TRANSMISSION TORQUE BRACKET Not Available Price: |
| 41 |
783-0669-0637 |
Idler Bracket This part replaces 783-0669. Price: $18.95 |
| 42 |
753-05606 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 647-0031B. Price: |
| 43 |
647-0032A-0637 |
SPEED CONTROL ASSEMBLY (POWDER BLACK) Not Available This part replaces 647-0032A. Price: |
| 44 |
683-0266 |
CONTROL PEDAL ASSEMBLY Not Available Price: |
| 45 |
710-1260A |
Screw, 5/16-18, 0.750 Price: $3.34 |
| 46 |
710-1611B |
Screw, 5/16-18, 0.750 Price: $5.94 |
| 47 |
711-04159B |
Pin, 3/8-16 x 2.68 Price: $6.75 |
| 48 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 49 |
714-0104 |
Pin, Cotter,.072 Dia. x 1.13 Price: $3.90 |
| 50 |
714-0111 |
Pin, Cotter, 3/32, 1.0 Price: $4.20 |
| 51 |
732-0335 |
SPRING Not Available Price: |
| 52 |
732-0955 |
Spring, Extension,.50 OD x 1.41 Price: $8.34 |
| 53 |
735-0662 |
Pad, Drive Control Price: $10.46 |
| 54 |
735-3049A |
Pad, Brake This part replaces 735-3049. Price: $11.30 |
| 55 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 56 |
736-0187 |
Washer, Flat,.64 x 1.24 x.06 Price: $4.02 |
| 57 |
736-0262 |
Washer, Flat,.385 x.870 x.092 Price: $3.66 |
| 58 |
936-3008 |
Flat Washer, .344 x .750 x .120 This part replaces 736-3008. Price: $6.24 |
| 59 |
938-0155 |
Screw, Shoulder.437 Dia x.162 This part replaces 738-0155. Price: $6.01 |
| 60 |
738-0380 |
Screw, Shoulder,.50 x.27, 3/8-16 Price: $7.34 |
| 61 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 62 |
741-3065B |
Bearing, Hex Flange,.628 ID, Split Price: $7.45 |
| 63 |
747-04093A |
LOCK CONTROL BRAKE ROD Not Available This part replaces 747-04093. Price: |
| 64 |
747-04096 |
CRUISE CONTROL ROD Not Available Price: |
| 65 |
753-05606 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 747-04521. Price: |
| 66 |
748-04039C |
CRUISE LATCH Not Available This part replaces 748-04039B. Price: |
| 67 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-04612. Price: $78.74 |
| 68 |
783-0732A |
LOCKOUT BRACKET Not Available Price: |
| 69 |
618-04200 |
VARIABLE BRACKET Not Available Price: |
| 70 |
710-0627 |
Screw, 5/16-24,.75 Price: $3.68 |
| 71 |
710-3015 |
Screw, 1/4-20,.75 Price: $3.65 |
| 72 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 73 |
718-04012 |
Bearing Cup Price: $19.55 |
| 74 |
736-0362 |
Washer, Flat,.330 x 1.25 x.06 Price: $3.93 |
| 75 |
941-0600 |
BALL BEARING This part replaces 741-0600. Price: $23.34 |
| 76 |
710-3011 |
Screw, 3/8-16, 2.25 Price: $6.49 |
| 77 |
748-0415B |
SPACER .385ID x 1.54" Not Available Price: |
| 78 |
712-0181 |
Nut, Jam Lock, 3/6-16 Price: $3.90 |
| 79 |
634-0202A |
WHEEL ASM COMP.23X Not Available Price: |
