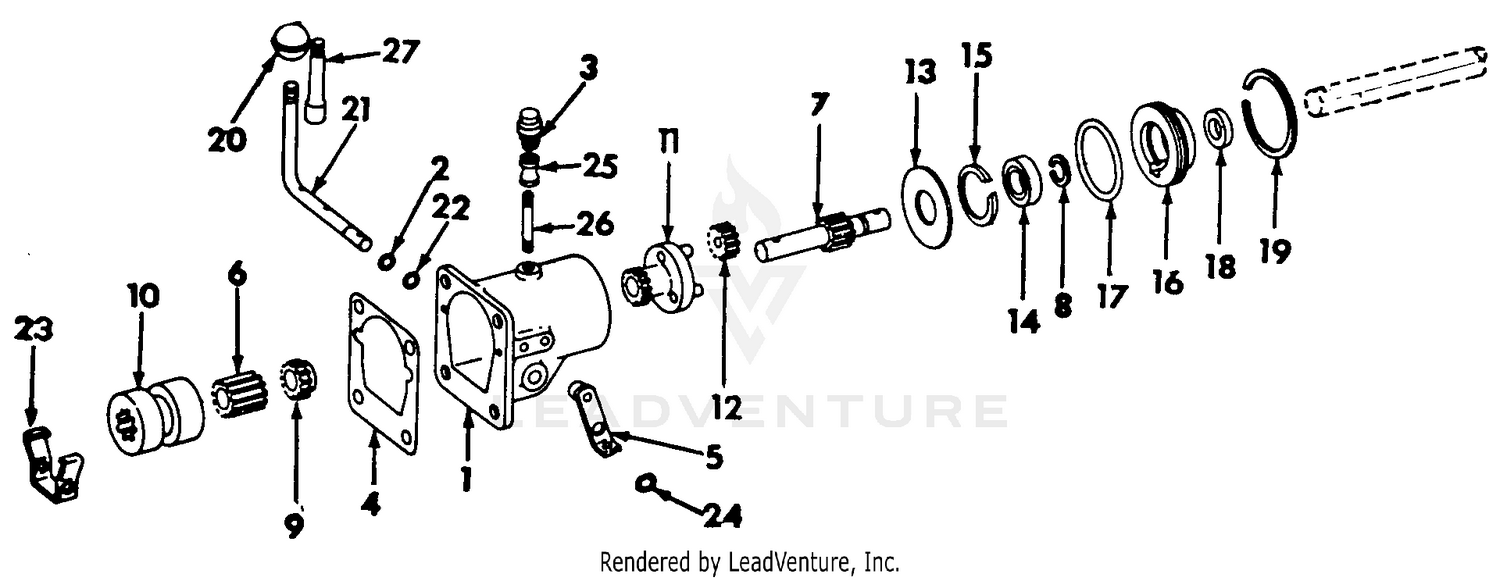

| Ref | Part Number | Description |
|---|
| 1 |
532059192 |
VALVE CAP Price: $4.99 |
| 1 |
719-3025 |
Housing, Creeper Drive Price: Call Us |
| 1 |
94-5098 |
CARRIER FRAME ASM, REAR Price: $508.32 |
| 2 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 2 |
532065139 |
VALVE STEM LT Price: $5.99 |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
532122073 |
TIRE.15X6-6.TURF.SAVER.FRONT This part replaces 532106222. Price: $59.99 |
| 3 |
723-3021 |
Breather, Creeper Drive Housing Price: $20.30 |
| 4 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 4 |
532059904 |
TUBE.5.3/4.5/6 Price: $19.99 |
| 4 |
721-3009 |
CREEPER GASKET Not Available Price: |
| 5 |
532106732 |
RIM.ASM.6X4.5.FRONT.SILVER This part replaces 532138336. Price: $79.99 |
| 5 |
703-0410 |
LEVER ASSEMBLY-POPPET Not Available Price: |
| 5 |
94-3353 |
DECAL-POINT, PINCH Price: $3.76 |
| 6 |
532000278 |
FITTING LT. This part replaces 532124957. Price: $5.99 |
| 6 |
703-1061 |
COUPLING ASSEMBLY-DRIVEN Not Available Price: |
| 6 |
94-5096 |
CARRIER FRAME ASM, LH Price: $511.94 |
| 7 |
532009040 |
BEARING.FLANGE This part replaces 532124959. Price: $6.99 |
| 7 |
711-3074A |
SHAFT-DR INPUT Not Available Price: |
| 7 |
94-5097 |
CARRIER FRAME ASM, RH Price: $472.53 |
| 8 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 8 |
532106108 |
RIM.ASM.8X7.REAR.SILVER This part replaces 532138337. Price: $99.99 |
| 8 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 9 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 9 |
532125833 |
TIRE.20X10-8.TURF.SAVER This part replaces 532122082. Price: $119.99 |
| 9 |
717-3019 |
COUPLING-DIRECTOR Not Available Price: |
| 10 |
532007152 |
TUBE - UNIVERSAL FOR 8" RIM This part replaces 532124926. Price: $49.99 |
| 10 |
717-3020 |
COLLAR-SHIFTER Not Available Price: |
| 11 |
322-6 |
SCREW-HH Price: $0.45 |
| 11 |
532104757 |
CAP.HUB.FRONT.LT.BLACK This part replaces 532175039. Price: $3.99 |
| 11 |
759-3124 |
CARRIER-PLANET Not Available Price: |
| 12 |
717-3022 |
GEAR-PLANET Not Available Price: |
| 12 |
94-5087 |
BUMPER Price: $6.48 |
| 13 |
3296-39 |
NUT-LOCK, NI This part replaces 3296-22. Price: $2.29 |
| 13 |
736-3049 |
Washer, Planet Gear Thrust Price: Call Us |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
741-0145 |
GROOVE BALL BEARING This part replaces IH-462848-R91. Price: $37.42 |
| 15 |
323-7 |
SCREW-HH Price: $0.65 |
| 15 |
716-04098 |
INTERNAL SNAP RING Not Available This part replaces 716-3007. Price: |
| 16 |
719-3026 |
BEARING-CAGE Not Available Price: |
| 18 |
921-3011 |
OIL SEAL This part replaces 721-3011. Price: $18.55 |
| 19 |
716-3008 |
SNAP RING Not Available Price: |
| 20 |
00012118 |
BLACK SHIFT KNOB Not Available This part replaces 720-3008. Price: |
| 21 |
IH-385041-R1 |
LEVER Not Available Price: |
| 23 |
703-0409 |
YOKE-SHIFT Not Available Price: |
| 24 |
736-3051 |
SPACER Not Available Price: |
| 25 |
IH-105408 |
Coupling, 1/8 Pipe Price: Call Us |
| 26 |
None |
Nipple, 1/8 X 2-1/4 Pipe |
| 27 |
IH-390868-R1 |
EXTENSION Not Available Price: |
| 03471 |
RM2300D |
Lift Arm Kit (Incl. Ref. #1-12) Price: Call Us 03471 |
