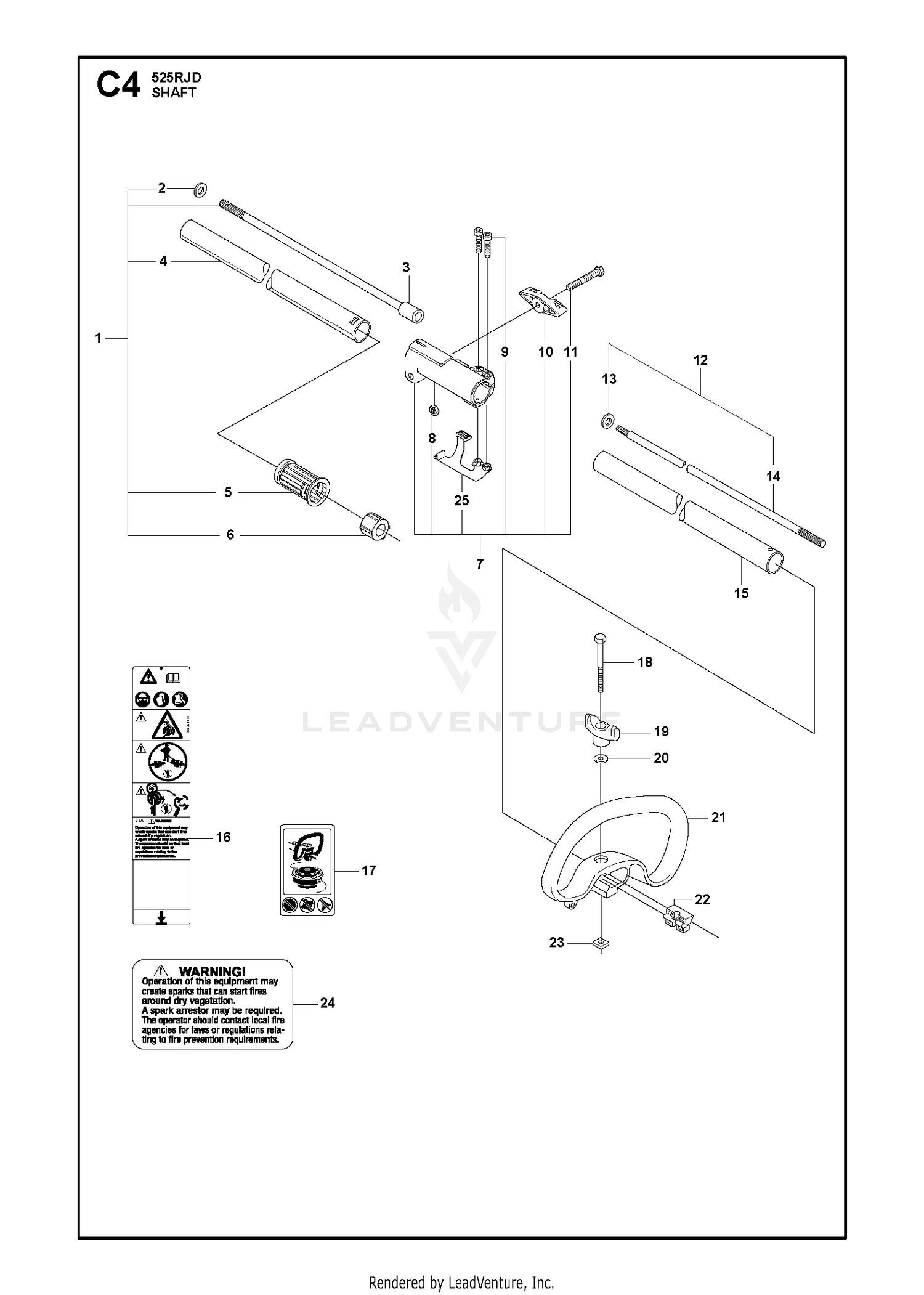

SHAFT
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 584249301 | Tubes Price: $99.99 |
| 2 | 735580810 | WASHER Price: $2.99 |
| 5 | 587414601 | PLUG This part replaces 544378701. Price: $2.99 |
| 6 | 503785202 | BUSHING Price: $9.99 |
| 7 | 576282601 | CLAMPING SLEEVE ASSY Price: $22.99 |
| 8 | 731231601 | NUT Price: $2.99 |
| 9 | 525755104 | SCREW Price: $2.99 |
| 10 | 576282401 | KNOB CLAMPING SLEEVE Price: $3.99 |
| 11 | 725237651 | BOLT FLANGE This part replaces 725237601. Price: $3.99 |
| 12 | 581500401 | DRIVE SHAFT COMPL Price: $44.99 |
| 13 | 735580810 | WASHER Price: $2.99 |
| 16 | 589295101 | LABEL WARNING TRIMMERS AND BRU Price: $8.99 |
| 21 | 503871908 | HANDLE Price: $37.99 |
| 22 | 503940301 | SPACER PLASTIC Price: $9.99 |
| 23 | 502197101 | NUT Price: $0.25 |
| 24 | 522928602 | DECAL SPARK ARRESTOR WARNING Price: $2.99 |
| 25 | 576282301 | LOCKING PLATE ASSY CLAMPING SL Price: $6.99 |
