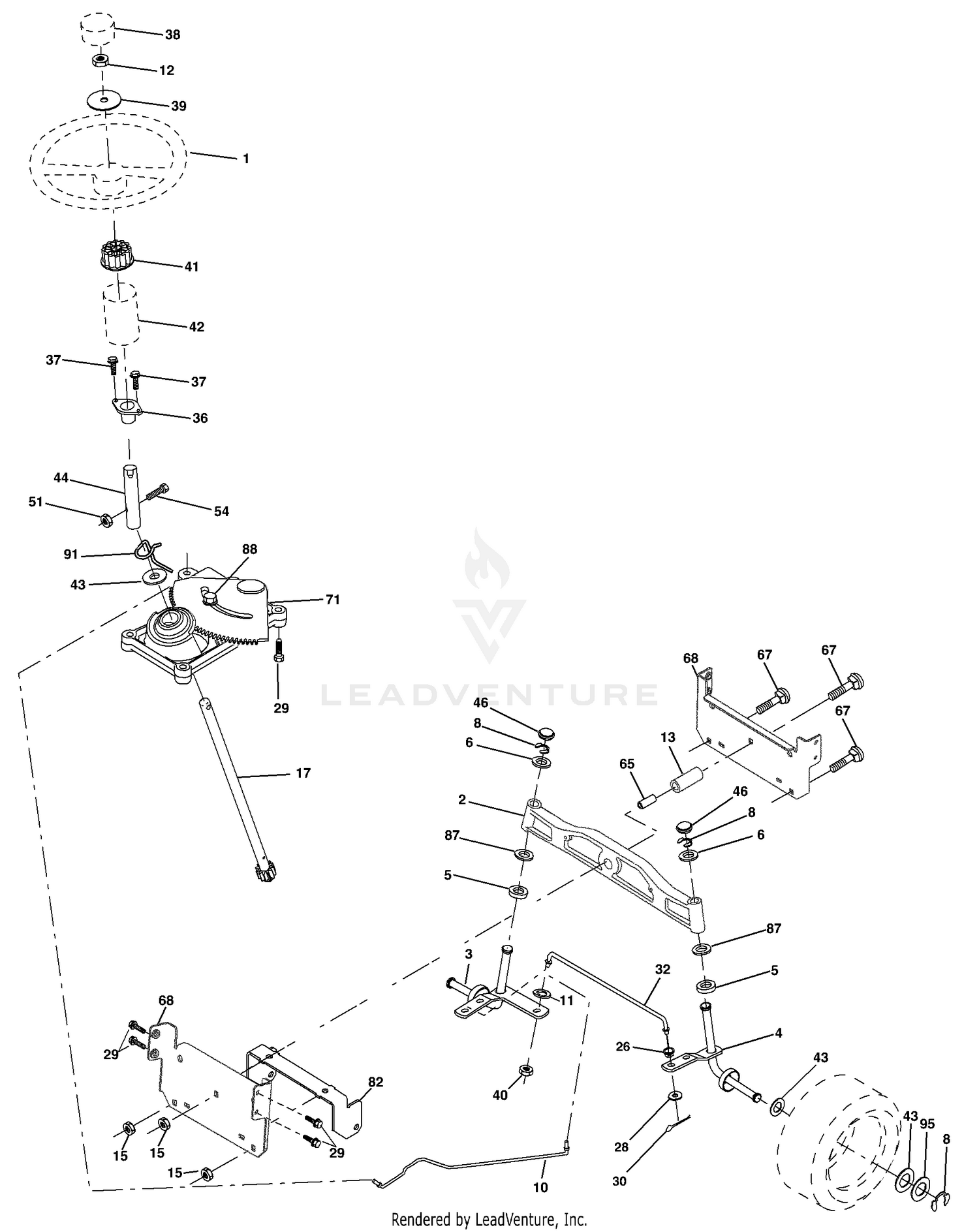

| Ref | Part Number | Description |
|---|
| 1 |
184704X428 |
Wheel Steering Price: Call Us |
| 2 |
184706 |
Axle Asm Cast Iron LT Price: Call Us |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 010 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 13 |
136518 |
Spacer Brg Axle Front Price: Call Us |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 17 |
180641 |
Shaft Asm Steering Price: Call Us |
| 020 |
98-9580 |
PIPE-RETURN, WATER Price: $4.01 |
| 26 |
126847X |
Bushing Link Drag Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 29 |
17000612 |
Screw 3/8-16 x .75 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 32 |
130465 |
Rod Tie Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 39 |
19182411 |
Washer 9/16 x 1 1/20 x 11 Ga. Price: Call Us |
| 40 |
73540600 |
Crownlock nut Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 44 |
180640 |
Extension Steering Shaft Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 050 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 Price: Call Us |
| 060 |
98-7692 |
BOLT Price: $0.92 |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt RDHD SQNK 3/8-16 x 2 1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 070 |
98-9356 |
BOLT Price: $2.06 |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 080 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .14 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 unc Price: Call Us |
| 090 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 91 |
175553 |
Clip Steering Price: Call Us |
| 100 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 110 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 120 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 130 |
105-3748 |
GASKET-THERMOSTAT Price: $4.31 |
