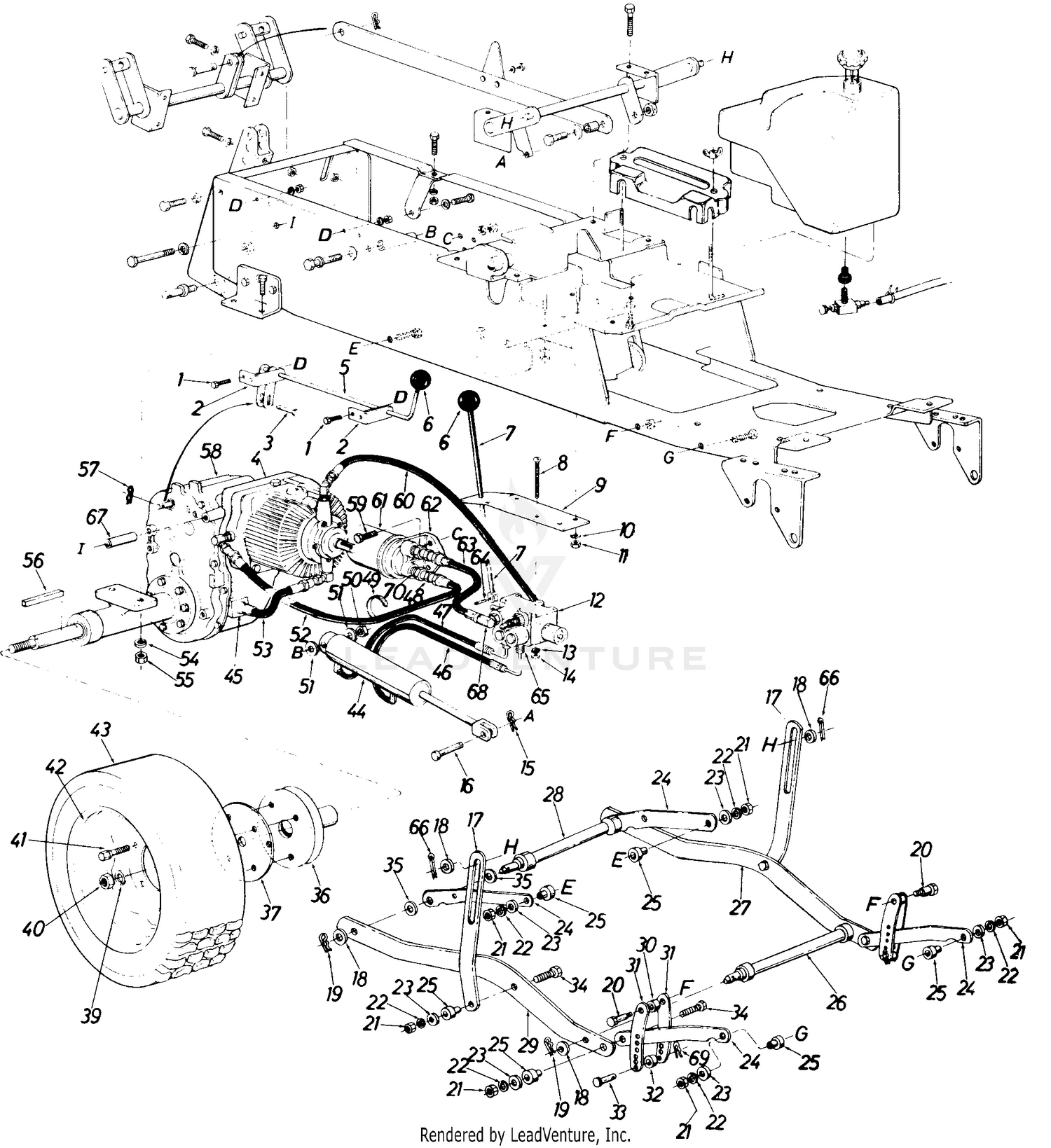

| Ref | Part Number | Description |
|---|
| 1 |
710-0237 |
Hex Scr. 1/4-20 x .75" Lg. Price: $3.93 |
| 2 |
13524 |
BRACKET-HI Not Available Price: |
| 3 |
711-0684 |
CLEVIS PIN .25 x 1.00 Not Available Price: |
| 4 |
717-0344 |
PUMP Not Available Price: |
| 5 |
13532 |
HANDLE ASSEMBLY Not Available Price: |
| 6 |
931-0009A |
Shfter Knob This part replaces 720-0175. Price: $13.05 |
| 7 |
13531 |
HANDLE ASSEMBLY Not Available Price: |
| 8 |
710-0105 |
SCREW-TRUSS MACH 1/4-20 x 3.0 Not Available Price: |
| 9 |
13534 |
VALVE BASE PLATE Not Available Price: |
| 10 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 11 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 12 |
927-0200 |
VALVE Not Available This part replaces 727-0200. Price: |
| 13 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 14 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 15 |
714-0101 |
Hairpin Cotter 1/2" Dia. Price: $4.13 |
| 16 |
711-0308 |
CLEVIS PIN Not Available This part replaces 711-0140. Price: |
| 17 |
13570 |
DECK LINK Not Available Price: |
| 18 |
736-0156 |
Fl-Wash. .62" I.D. x 1.12" O.D. Price: $3.95 |
| 19 |
714-0147 |
Hairpin Cotter Price: $4.20 |
| 20 |
938-0148 |
Shoulder Screw, .50 x .66 This part replaces 738-0148. Price: $14.70 |
| 21 |
712-0241 |
Hex Nut 3/8-24 Thd.* Price: $3.86 |
| 22 |
736-0217 |
L-Wash. 3/8" Scr. H.D. Price: $3.86 |
| 23 |
736-0258 |
Fl-Wash. .38 I.D. x 1.00" O.D. Price: $3.93 |
| 24 |
13151 |
ARM-LIFT Not Available Price: |
| 25 |
748-0241 |
SHOULDER SPACER Not Available Price: |
| 26 |
13729 |
Cross Shaft Ass'y. Front Price: Call Us |
| 27 |
13139 |
LIFT ARM LINK Not Available Price: |
| 28 |
13728 |
SHAFT ASSEMBLY Not Available Price: |
| 29 |
13139 |
LIFT ARM LINK Not Available Price: |
| 30 |
711-0146 |
COLLAR 1/2 x 1.00 x .320 Not Available Price: |
| 31 |
13545 |
BRACKET-IN Not Available Price: |
| 32 |
711-0242 |
Spacer.38" I.D. x 1.00" O.D. x .320 Price: $3.95 |
| 33 |
711-04722 |
Pin, Clevis, .375 x .969 HT This part replaces 711-0173. Price: $5.89 |
| 34 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 35 |
936-0167 |
Wave Washer This part replaces 736-0167. Price: $6.01 |
| 36 |
13572 |
REAR WHEEL HUB ASS'Y. Not Available Price: |
| 37 |
13574A-0637 |
PLATE-HUB Not Available This part replaces 13574. Price: |
| 39 |
936-0364 |
WASHER Not Available This part replaces 1541-006. Price: |
| 40 |
912-0288 |
HEX NUT INS L 3/4-10 Not Available This part replaces 712-0288. Price: |
| 41 |
710-0470 |
BOLT 1/2-20 x .875 GR2 Not Available Price: |
| 42 |
734-0935 |
WHEEL ASSEMBLY W/O TIRE COLOR Not Available Price: |
| 43 |
734-0934 |
WHEEL ASSEMBLY W/TIRE 27 x 9.50 XCOLOR Not Available Price: |
| 44 |
727-0159 |
CYLINDER-HYDRO Not Available Price: |
| 46 |
727-0219 |
HOSE-VALVE TO CYL Not Available Price: |
| 47 |
727-0219 |
HOSE-VALVE TO CYL Not Available Price: |
| 48 |
727-0222 |
REDUCER Not Available Price: |
| 49 |
725-0157 |
Cable Tie This part replaces 726-0178. Price: $3.46 |
| 50 |
712-3029 |
NUT This part replaces 712-0922. Price: $6.01 |
| 51 |
736-0179 |
Fl-Wash. .50" I.D. x 1.25 O.D. Price: $4.02 |
| 52 |
727-0217 |
HOSE-FILTER RETURN Not Available Price: |
| 53 |
749-0309 |
TUBE ASSEMBLY-PUMP Not Available Price: |
| 54 |
736-0217 |
L-Wash. 3/8" Scr. Price: $3.86 |
| 55 |
712-0798 |
Hex Nut 3/8-16 Thd.* Price: $3.86 |
| 56 |
914-0114 |
Sq. Key 1/4" x 1/4" x 2.00" Not Available This part replaces 714-0114. Price: |
| 57 |
714-0104 |
Hairpin Cotter 1/4" Dia. Price: $3.90 |
| 59 |
710-0528 |
Hex Scr. 5/16-18 x 1.25" Lg. * Price: $3.90 |
| 60 |
727-0167 |
HOSE-PUMP TO VALVE Not Available Price: |
| 61 |
727-0162 |
FILTER Not Available Price: |
| 62 |
727-0163 |
BASE-FILTER Not Available Price: |
| 63 |
727-0218 |
HOSE-VALVE TO FILTER Not Available Price: |
| 64 |
715-0129 |
Spring Pin Spiral 118" Dia. x .81" Lg. Price: $4.19 |
| 65 |
727-0187 |
ADAPTER-FLARE Not Available Price: |
| 66 |
714-0115 |
Cotter Pin 1/8" Dia. x 1.00" Lg. * Price: $3.48 |
| 67 |
750-0417 |
SPACER Not Available Price: |
| 68 |
727-0175 |
ADAPTER-90 DEGREE Not Available Price: |
| 69 |
714-0145 |
Hairpin Cotter Price: $4.42 |
