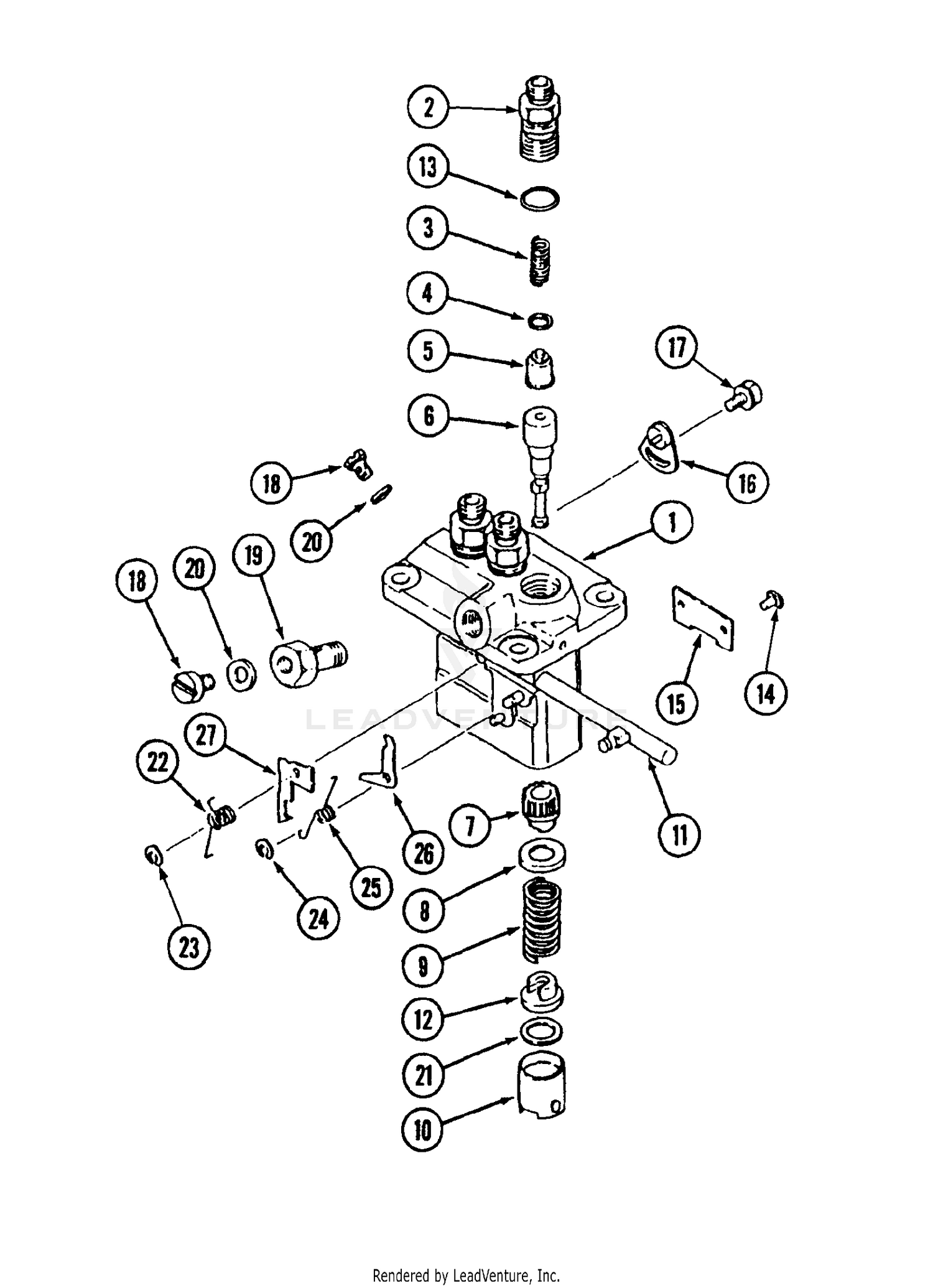

Fuel Injection Pump 30HP Engine 7305 S/N 23070 & Up
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 532401042 | SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 1 | 95-7532 | DISCONTINUED Price: Call Us |
| 1 | MA-09011-02830 | HOUSING-INJ PUMP Not Available Price: |
| 2 | 531152401 | SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 | 99-7594 | SEAL-OIL Price: $5.99 |
| 2 | MA-09013-10720 | HOLDER Not Available Price: |
| 3 | 871110616 | BOLT, HEX 3/8-16X1 Price: $3.99 |
| 3 | 99-7535 | PLUG Price: $8.15 |
| 3 | MA-09013-60940 | SPRING Not Available Price: |
| 4 | 819131610 | WASHER PM Price: $4.99 |
| 4 | 99-7536 | WASHER-SEAL Price: $2.58 |
| 4 | MA-09013-70130 | GASKET-DELIVERY Not Available Price: |
| 5 | 532145006 | PUSH CLIP Price: $2.99 |
| 5 | 95-7528 | GEAR-BEVEL, 27 TOOTH Price: $333.09 |
| 5 | MA-09014-02730 | VALVE-DELIVERY Not Available Price: |
| 6 | 596322601 | Nuts This part replaces 873800600. Price: $2.99 |
| 6 | 99-7532 | BEARING-ROLLER, TAPER Price: $45.81 |
| 6 | MA-09015-06540 | ELEMENT-DELIVERY V Not Available Price: |
| 7 | 587613301 | SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 | 95-7526 | COVER-AXLE Price: $87.93 |
| 7 | MA-09016-10210 | Sleeve, Control Price: $28.28 |
| 8 | 106-1072 | O-RING This part replaces 99-7537. Price: $21.08 |
| 8 | 817000616 | SCREW 3/8-16X1 Price: $5.99 |
| 8 | MA-09016-30082 | SEAT-SPRING UPPER Not Available Price: |
| 9 | 596140201 | Washers This part replaces 819131614. Price: $2.99 |
| 9 | 99-7589 | PLUG Price: $3.73 |
| 9 | MA-09016-40170 | SPRING-PLUNGER Not Available Price: |
| 10 | 532195530 | PAN.ASM.SEAT.1SLOT This part replaces 532174894. Price: $17.99 |
| 10 | 99-7590 | WASHER-SEAL Price: $2.94 |
| 10 | MA-09017-00170 | TAPPET ASSEMBLY-INJ PM Not Available Price: |
| 11 | MA-09021-00470 | RACK ASSEMBLY Not Available Price: |
| 12 | 532174648 | BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 | MA-09030-10060 | SEAT-SPRING LOWER Not Available Price: |
| 13 | 532121248 | BUSHING Price: $4.99 |
| 13 | MA-90802-20150 | O-RING Not Available Price: |
| 14 | 872050412 | BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 14 | MA-09018-30050 | PIN-TAPPET Not Available Price: |
| 15 | 532134300 | SPACER SPLIT 28X.96 Price: $3.99 |
| 15 | MA-09046-70040 | PLATE Not Available Price: |
| 16 | 532121250 | SPRING Price: $3.99 |
| 16 | MA-09006-80020 | PLATE-ADJUSTING Not Available Price: |
| 17 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 | MA-94904-80800 | BOLT-WASHER HEAD Not Available Price: |
| 18 | MA-09024-40180 | SCREW-AIR Not Available Price: |
| 19 | MA-94918-00510 | Screw, Hollow Price: Call Us |
| 20 | MA-94901-81020 | WASHER Not Available Price: |
| 21 | 587907801 | BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 | 596040501 | Hardware This part replaces 873800500. Price: $2.99 |
| 22 | MA-09055-40390 | SPRING-SMOKE SET Not Available Price: |
| 23 | 871110814 | BOLT.HEX.BLACK Price: $8.99 |
| 23 | MA-09089-40020 | E-RING Not Available Price: |
| 24 | 819171912 | WASHER Price: $3.99 |
| 24 | MA-09089-40010 | E-RING Not Available Price: |
| 25 | 532127018 | BOLT,SHOULD Price: $4.99 |
| 25 | MA-09055-40470 | SPRING Not Available Price: |
