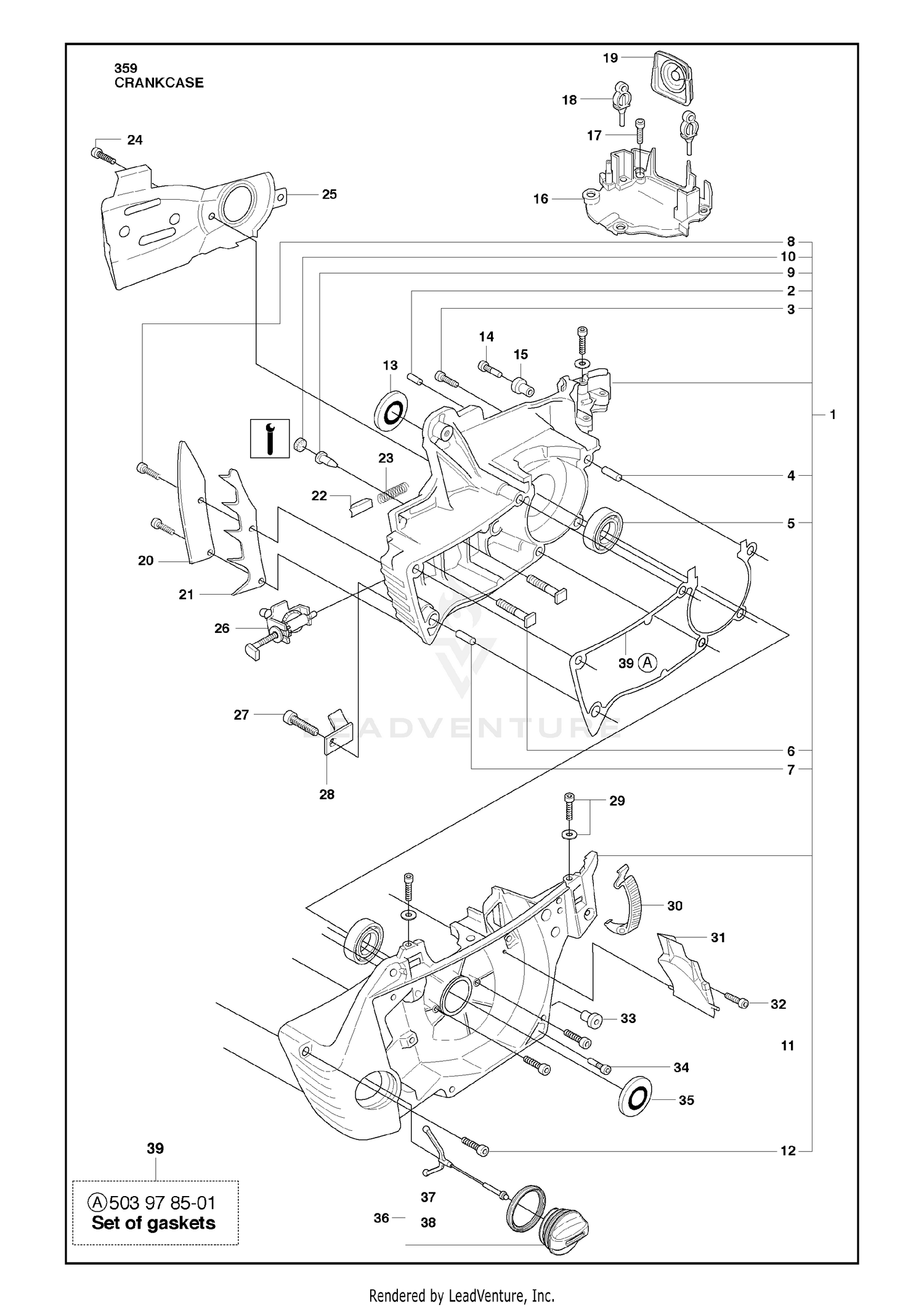

Crankcase
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-0085 | TANK-OIL Price: $1,828.79 |
| 1 | 503925303 | Price: Call Us |
| 2 | 68-6150 | BREATHER Price: $27.22 |
| 2 | 721120730 | PIN Price: $3.99 |
| 3 | 503200832 | SCREW Price: $4.99 |
| 3 | 61-2790 | FILTER-SCREEN Price: $49.91 |
| 4 | 503905601 | Sleeve Price: $3.50 |
| 4 | 94-9411 | DIPSTICK Price: $42.51 |
| 5 | 738220225 | BALL BEARING-6202-C3 SKF Price: $19.99 |
| 5 | 98-3917-01 | BRACKET-FILTER Price: $45.78 |
| 6 | 503875401 | BOLT Price: $4.99 |
| 6 | 93-7498 | PLUG-PLASTIC Price: $25.26 |
| 7 | 340-91 | FITTING-STR Price: $36.83 |
| 7 | 503905601 | Sleeve Price: $3.50 |
| 8 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 8 | 503200776 | SCREW Price: $3.99 |
| 9 | 23-8910 | STEM-BARB-90 Price: $153.60 |
| 9 | 530026119 | VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 10 | 104-1433 | STRAINER-SUCTION Price: $156.13 |
| 10 | 537403502 | SINTERED BRONZE FILTER This part replaces 537403501. Price: $2.99 |
| 11 | 353-508 | PLUG-HH Price: $7.96 |
| 11 | 503202516 | SCREW Price: $2.99 |
| 12 | 33104-020 | SCREW-HHF Price: $2.07 |
| 12 | 503200220 | SCREW Price: $2.99 |
| 13 | 505275719 | SEAL RING Price: $11.99 |
| 13 | 92-8020 | ADAPTER-BREATHER Price: $10.50 |
| 14 | 503215101 | SCREW Price: $3.99 |
| 14 | 93-7588 | COVER-TANK Price: $37.60 |
| 15 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 15 | 503869201 | MOVEMENT LIMITER Price: $7.99 |
| 16 | 503927903 | BASE Price: $5.99 |
| 16 | 93-7499 | GASKET Price: $5.91 |
| 17 | 503217512 | SCREW Price: $3.99 |
| 17 | 98-3931 | HOSE-FORMED Price: $80.81 |
| 18 | 237-101 | O-RING Price: $2.80 |
| 18 | 597909701 | DAMPNER This part replaces 503869301. Price: $5.99 |
| 19 | 353-550 | PLUG-HYD, HH Price: $10.71 |
| 19 | 537146501 | BELLOWS Price: $12.99 |
| 20 | 2412-93 | CLAMP-R Price: $1.02 |
| 20 | 537021801 | BUMPER Price: $8.99 |
| 21 | 503973801 | FELLING DOG Price: $12.99 |
| 22 | 32144-10 | SCREW-HWH Price: $4.29 |
| 22 | 503892401 | CATCH Price: $5.99 |
| 23 | 323-4 | SCREW-HH Price: $1.02 |
| 23 | 503436501 | LOCK SPRING Price: $3.99 |
| 24 | 33105-025 | SCREW-HHF Price: $1.56 |
| 24 | 503217412 | SCREW Price: $2.99 |
| 25 | 503935401 | PLATE Price: $9.99 |
| 25 | 63-8410 | WASHER Price: $1.76 |
| 26 | 537071201 | CHAIN TENSIONER Price: $17.99 |
| 26 | 75-6870 | HOSE-INLET, PUMP Price: $50.00 |
| 27 | 240-11 | BUSHING-FLANGE Price: $5.32 |
| 27 | 503218876 | SCREW Price: $4.99 |
| 28 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 28 | 537377901 | CHAIN CATCHER Price: $4.99 |
| 29 | 503213901 | SCREW Price: $3.99 |
| 30 | 503894701 | BUCKLE ORANGE Price: $11.99 |
| 31 | 503929001 | JET Price: $6.99 |
| 32 | 503217412 | SCREW Price: $2.99 |
| 33 | 503869201 | MOVEMENT LIMITER Price: $7.99 |
| 34 | 503215101 | SCREW Price: $3.99 |
| 35 | 505275719 | SEAL RING Price: $11.99 |
| 36 | 537215207 | TANK CAP This part replaces 537215202. Price: $9.99 |
| 37 | 503578901 | TANK LOCK Price: $4.99 |
| 38 | 589241101 | SEALING This part replaces 537215001. Price: $4.99 |
