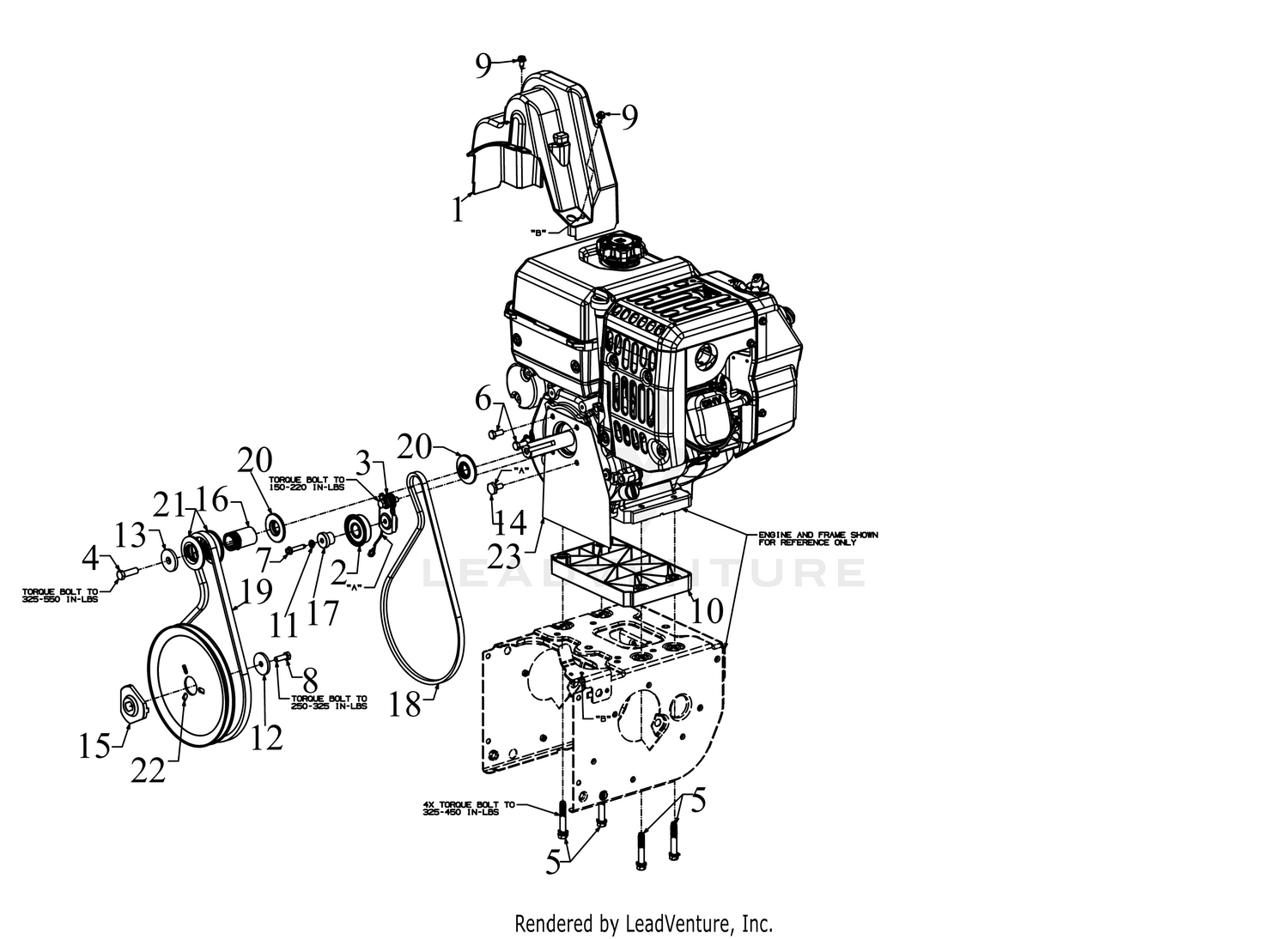

| Ref | Part Number | Description |
|---|
| 1 |
631-05394 |
BELT COVER ASSEMBLY Price: $32.86 |
| 2 |
684-04169 |
IDLER PULLEY ASSEMBLY Price: $29.87 |
| 3 |
N/A |
IDLER ASSEMBLY |
| 4 |
710-0191 |
SCREW 3/8-24X1.25 Price: $4.02 |
| 5 |
710-05283 |
SCREW 3/8-16 x 2.25 Price: $5.59 |
| 6 |
710-0627 |
SCREW 5/16-24 x .750 GR5 Price: $3.68 |
| 7 |
710-0809 |
SCREW 1/4-20 x 1.25 Price: $6.37 |
| 8 |
710-1245B |
SCREW 5/16-24 x .875 GR5 Price: $7.21 |
| 9 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 10 |
731-11797 |
ENGINE MOUNTING SPACER Price: $27.37 |
| 11 |
936-0329 |
LOCK WASHER Price: $3.90 |
| 12 |
736-0505 |
FLAT WASHER Price: $5.65 |
| 13 |
736-3082A |
FLAT WASHER .45 x 1.5 x .172 HT Price: $9.09 |
| 14 |
738-04439 |
SHOULDER SCREW Price: $3.49 |
| 15 |
748-04053A |
ADAPTER PULLEY .75 DIA W/DD Price: $19.41 |
| 16 |
750-04303 |
PULLEY SPACER Price: $15.09 |
| 17 |
750-04571 |
SHOULDER SPACER Price: $6.01 |
| 18 |
954-05143 |
DRIVE BELT 3L X 36.90 Price: $25.74 |
| 19 |
754P06495 |
V-BELT .500 x 37.835 This part replaces 954-05153. Price: $22.25 |
| 20 |
756-04252 |
HALF PULLEY-3/8 V x 1.7160 Price: $5.62 |
| 21 |
756-04353 |
HALF PULLEY 4L-V x 2.40 OD Price: $6.23 |
| 22 |
756-05219 |
AUGER PULLEY 8.5 OD Price: $48.38 |
