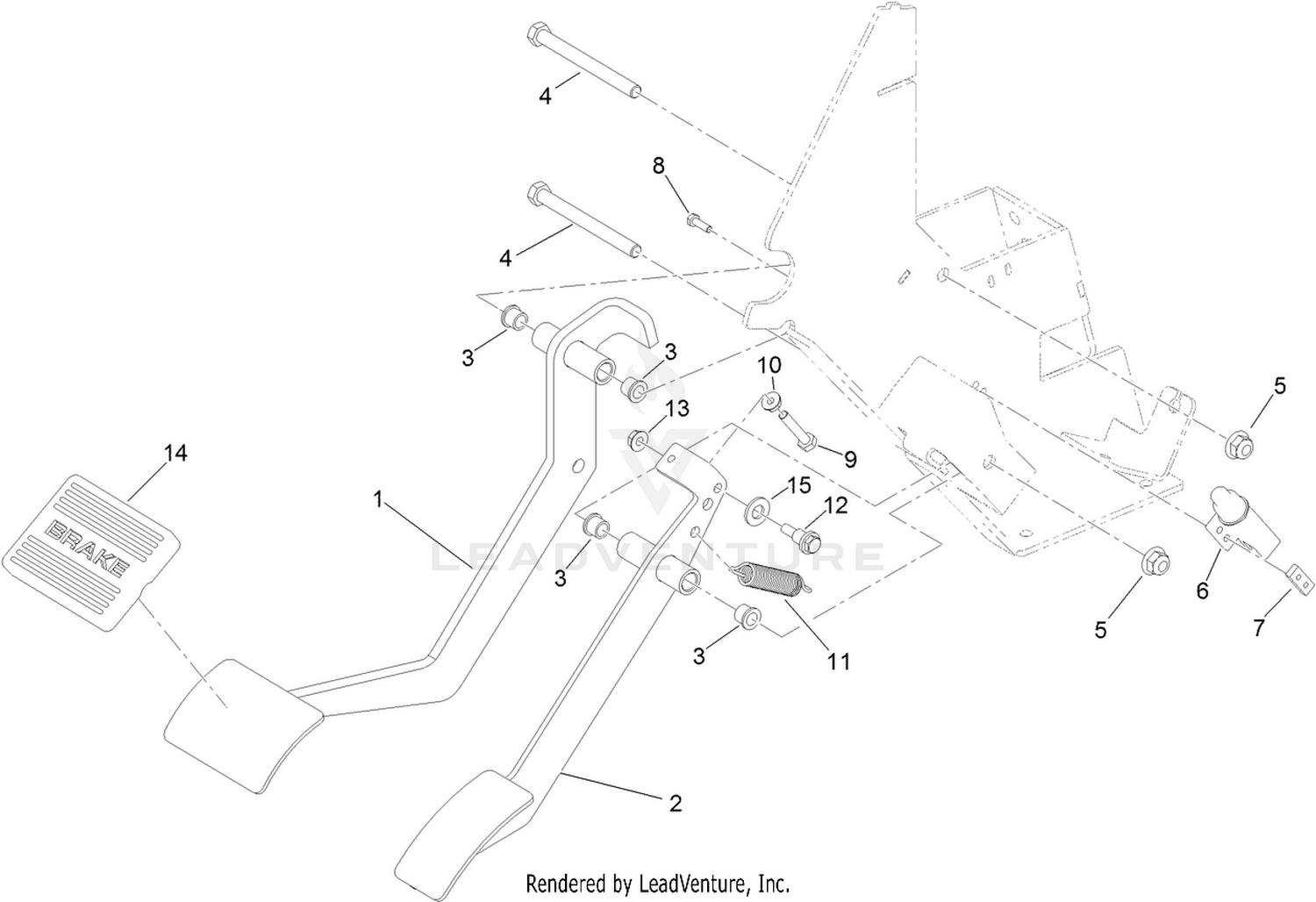

| Ref | Part Number | Description |
|---|
| 1 |
132-6753-03 |
PEDAL-BRAKE Price: $69.67 |
| 2 |
132-6751-03 |
PEDAL-THROTTLE Price: $110.11 |
| 3 |
256-116 |
BUSHING-FLANGE Price: $3.52 |
| 4 |
323-16 |
SCREW-HH Price: $2.89 |
| 5 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 6 |
107-0340 |
KIT-PEDAL SWITCH This part replaces 99-7407. Price: $57.82 |
| 7 |
1-633181 |
PLATE-TAPPED Price: $6.09 |
| 8 |
3290-134 |
SCREW Price: $0.27 |
| 9 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 10 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 11 |
137-7040 |
SPRING-RETURN, PEDAL This part replaces 104-6415. Price: $4.89 |
| 12 |
104-0858 |
BOLT-SHOULDER Price: $4.69 |
| 13 |
32128-33 |
NUT-HF Price: $0.25 |
| 14 |
7-3900 |
PAD-BRAKE Price: $27.35 |
