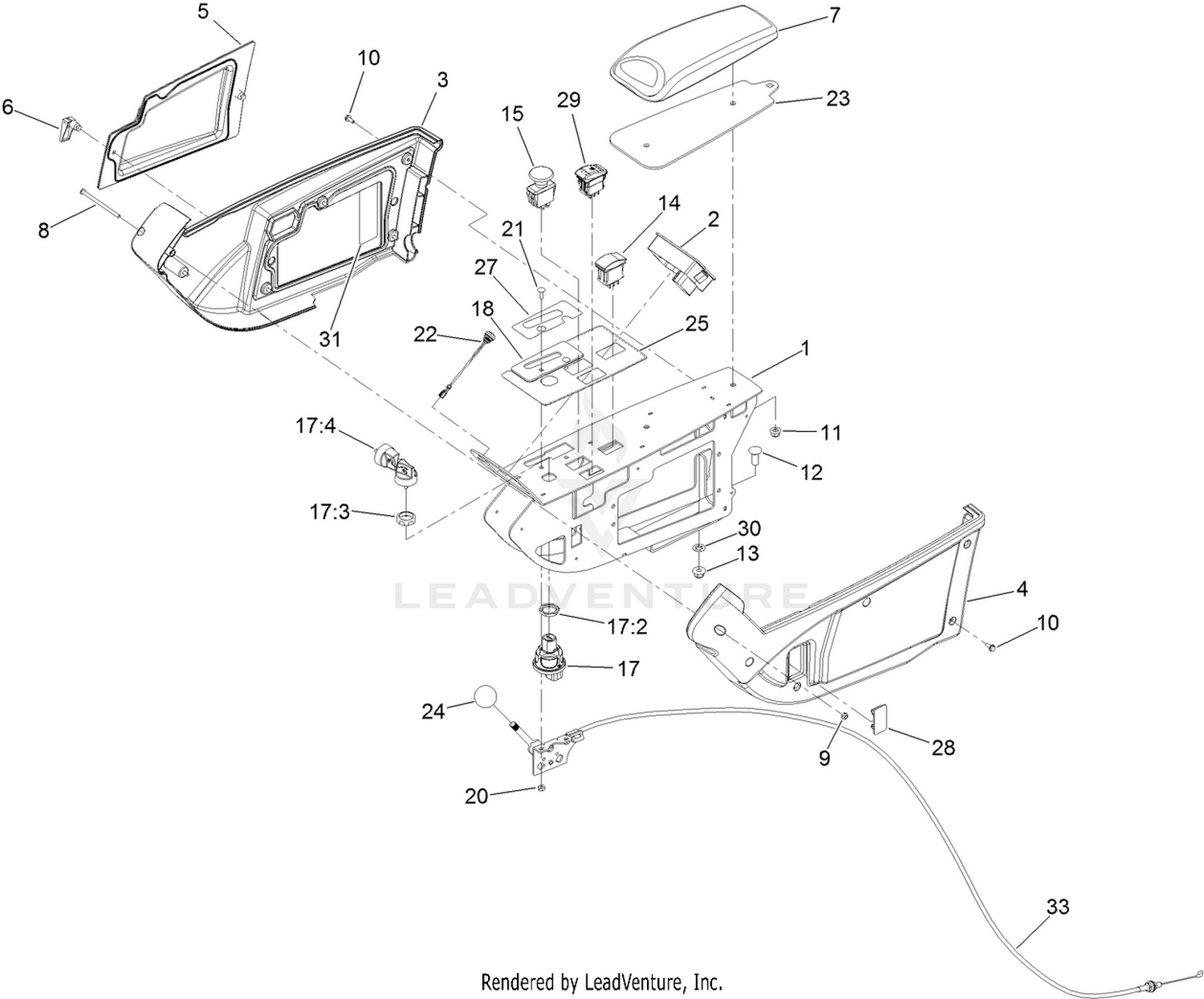

Control Console Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-6406-03 | PANEL Price: $223.67 |
| 2 | 132-9751 | TDM 2001 Price: $271.08 |
| 3 | 108-7605 | COVER-RH Price: $55.56 |
| 4 | 108-7604 | COVER-LH Price: $55.56 |
| 5 | 108-7616 | PANEL-ACCESS Price: $36.37 |
| 6 | 74-5950 | LATCH-SWELL Price: $21.28 |
| 7 | 131-9637 | ARMREST-QUICK FIND Price: $68.09 |
| 8 | 3250-22 | SCREW-PPH Price: $4.09 |
| 9 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 10 | 32144-112 | SCREW-HWH Price: $0.99 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 12 | 3231-22 | SCREW-CARR Price: $0.72 |
| 13 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 14 | 100-1535 | SWITCH Price: $84.91 |
| 15 | 93-9999 | SWITCH-PTO Price: $42.99 |
| 17 | 121-5159 | IGNITION SWITCH ASM Price: $84.21 |
| 18 | 137-2510 | COVER-THROTTLE, LEVER Price: Call Us |
| 20 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 21 | 1-807533 | BOLT-CARR Price: $0.99 |
| 22 | 136-9678 | SWITCH-PUSHBUTTON Price: $54.55 |
| 23 | 138-4548-03 | PLATE-SPACER, CONSOLE PAD Price: $25.86 |
| 24 | 1-603175 | KNOB-BALL Price: $10.99 |
| 25 | 138-7471 | DECAL-CONSOLE Price: $17.99 |
| 27 | 138-7473 | DECAL-THROTTLE Price: $14.72 |
| 28 | 99-7420 | PLUG-HOLE Price: $7.64 |
| 29 | 110-0811 | SWITCH-ROCKER ON-NONE-(ON) Price: $46.07 |
| 30 | 107-3154 | NUT-PUSH Price: $0.99 |
| 31 | 140-3125 | DECAL-FUSE Price: $2.45 |
