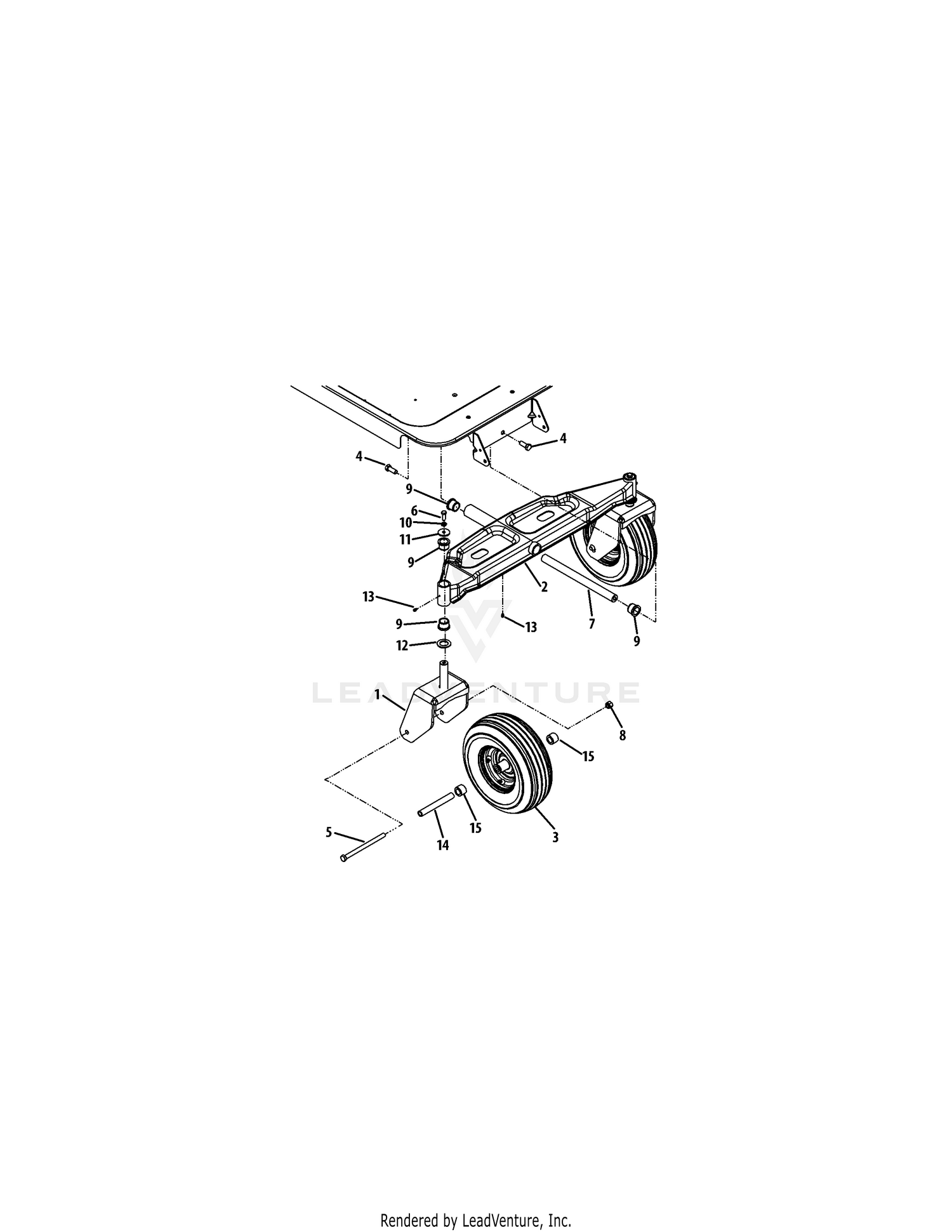

| Ref | Part Number | Description |
|---|
| 1 |
603-04370A |
CASTER YOKE Not Available This part replaces 603-04370-0638. Price: |
| 2 |
603-04385A-0638 |
FRONT PIVOT AXLE ASSEMBLY (MTD RED) Not Available Price: |
| 3 |
634-04321A-0916 |
WHEEL ASSEMBLY (13 x 5-6) (OYSTER-DELI) Not Available This part replaces 634-04321A-0911. Price: |
| 4 |
710-04186 |
Hex Lock Screw, 1/2-13 x 1.25 Price: $6.17 |
| 5 |
710-11661 |
HEX HEAD CAP SCREW 1/2 13-7.25 GR5 This part replaces 710-04652. Price: $5.68 |
| 6 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 7 |
911-04228 |
Axle Shaft Price: $67.85 |
| 8 |
912-3058 |
HEX NUT CENTER This part replaces 712-3058. Price: $4.92 |
| 9 |
731-05500 |
Flange Bearing, 1.0 x 1.246 Price: $9.18 |
| 10 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 11 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 12 |
736-0250 |
Flat Washer, 1.0 x 1.75 x .10 Price: $3.90 |
| 13 |
937-3000 |
Lube Fitting, 3/16 Drive Price: $4.04 |
| 14 |
750-04775A |
Spacer, .51 x .75 x 5.825 Price: $24.72 |
