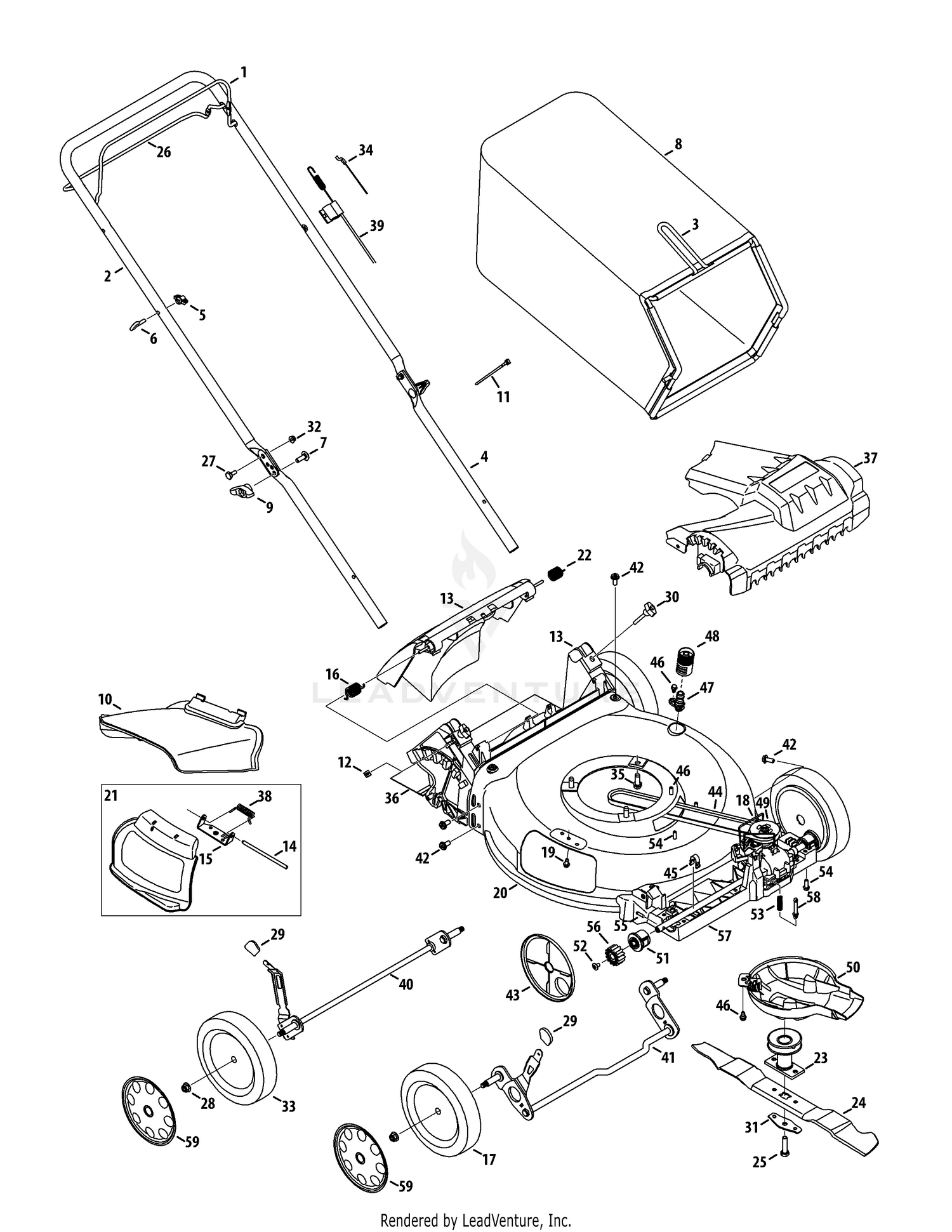

| Ref | Part Number | Description |
|---|
| 1 |
747-05214D |
Blade Control Price: $5.53 |
| 2 |
749-05084B-0637 |
UPPER HANDLE (POWDER BLACK) This part replaces 749-04681B-0637. Price: $29.46 |
| 3 |
647-04271-0637 |
Grass Catcher Frame Price: $36.15 |
| 4 |
749-07298-0637 |
LOWER HANDLE (POWDER BLACK) This part replaces 749-04608A-0637. Price: $8.76 |
| 5 |
720-0279 |
Wing Nut Price: $3.93 |
| 6 |
710-1205 |
Rope Guide Price: $3.53 |
| 7 |
710-04998 |
Carriage Screw ,5/16-18 Price: $4.89 |
| 9 |
720-04124 |
Wing Knob Price: $4.37 |
| 10 |
731-07131 |
Side Chute Price: $13.83 |
| 11 |
725-0157 |
Cable Tie Price: $3.46 |
| 12 |
712-04222 |
Nut, Sq., 1/4-20 Price: $4.77 |
| 14 |
747-0710A |
Hinge Pin Price: $3.86 |
| 15 |
787-01779 |
Chute Deflector Bracket Price: $4.13 |
| 16 |
732-05061B |
TORSION SPRING (RH) This part replaces 732-05061A. Price: $4.64 |
| 17 |
634-05039 |
Front Wheel Price: $36.45 |
| 18 |
732-04675B |
TRANSMISSION WIRE This part replaces 732-04675A. Price: $3.48 |
| 19 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 22 |
732-05062A |
Torsion Spring - LH Price: $4.64 |
| 23 |
687-02539 |
Blade Adapter Assembly Price: $38.01 |
| 24 |
942-0741A |
Mulching Blade Price: $27.55 |
| 25 |
710-1044 |
Screw , 3/8-24 x 1.50 Price: $3.48 |
| 26 |
747-05210B |
Drive Control Price: $8.30 |
| 27 |
738-04419A |
Sldr. Screw, .375 x .126 x 1/4-20 Price: $3.61 |
| 28 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 29 |
720-04131A |
Adjustment Lever Knob Price: $5.34 |
| 30 |
720-05066A |
Wing Nut Price: $3.93 |
| 31 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 32 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 33 |
634-04660 |
Rear Wheel Price: $24.13 |
| 34 |
946-1113A |
Control Cable Price: $18.03 |
| 35 |
710-04683C |
SCREW 3/8-16 x 1 This part replaces 710-04683B. Price: $5.67 |
| 36 |
731-07203 |
Trail Shield Price: $9.41 |
| 37 |
731-07790A |
FRONT COVER This part replaces 731-07790. Price: $26.02 |
| 38 |
732-1014C |
Torsion Spring Price: $7.40 |
| 39 |
946-04728A |
SINGLE SPEED FORWARD CABLE This part replaces 946-04728. Price: $25.74 |
| 41 |
911-04150 |
Front Axle Assembly Price: $40.29 |
| 42 |
710-04995A |
Screw, 5/16-14 x .750 Price: $3.61 |
| 43 |
731-07240A |
Wheel Dust Cover Price: $5.30 |
| 44 |
954-04259A |
V-Belt Price: $26.49 |
| 45 |
787-01793 |
Front Axle Clip Price: $3.76 |
| 46 |
738-04502 |
Shoulder Screw, 1/4-20 x 0.50 Price: $3.75 |
| 47 |
731-07487 |
Water Nozzle Price: $3.86 |
| 48 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 49 |
753-09444 |
TRANSMISSION KIT (SP FWD 53CM WALK) This part replaces 918-04881A. Price: $130.17 |
| 50 |
931-04535C |
ENGINE BAFFLE ASSEMBLY This part replaces 931-04535B. Price: $12.58 |
| 51 |
941-00019 |
Bearing Assembly Price: $5.78 |
| 52 |
710-04531 |
Screw, 1/4-20 x .390 Price: $4.42 |
| 53 |
732-04704 |
Compression Spring Price: $3.76 |
| 54 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 55 |
715-04099 |
Dowel Pin Price: $3.65 |
| 56 |
917-04801 |
Spur Gear, 14T - RH Price: $8.34 |
| 56 |
917-04802 |
Spur Gear, 14T - LH Price: $8.03 |
| 57 |
731-07789A |
LOWER TRAY This part replaces 731-07789. Price: $29.05 |
| 58 |
731-07355 |
Spring Body Price: $4.99 |
