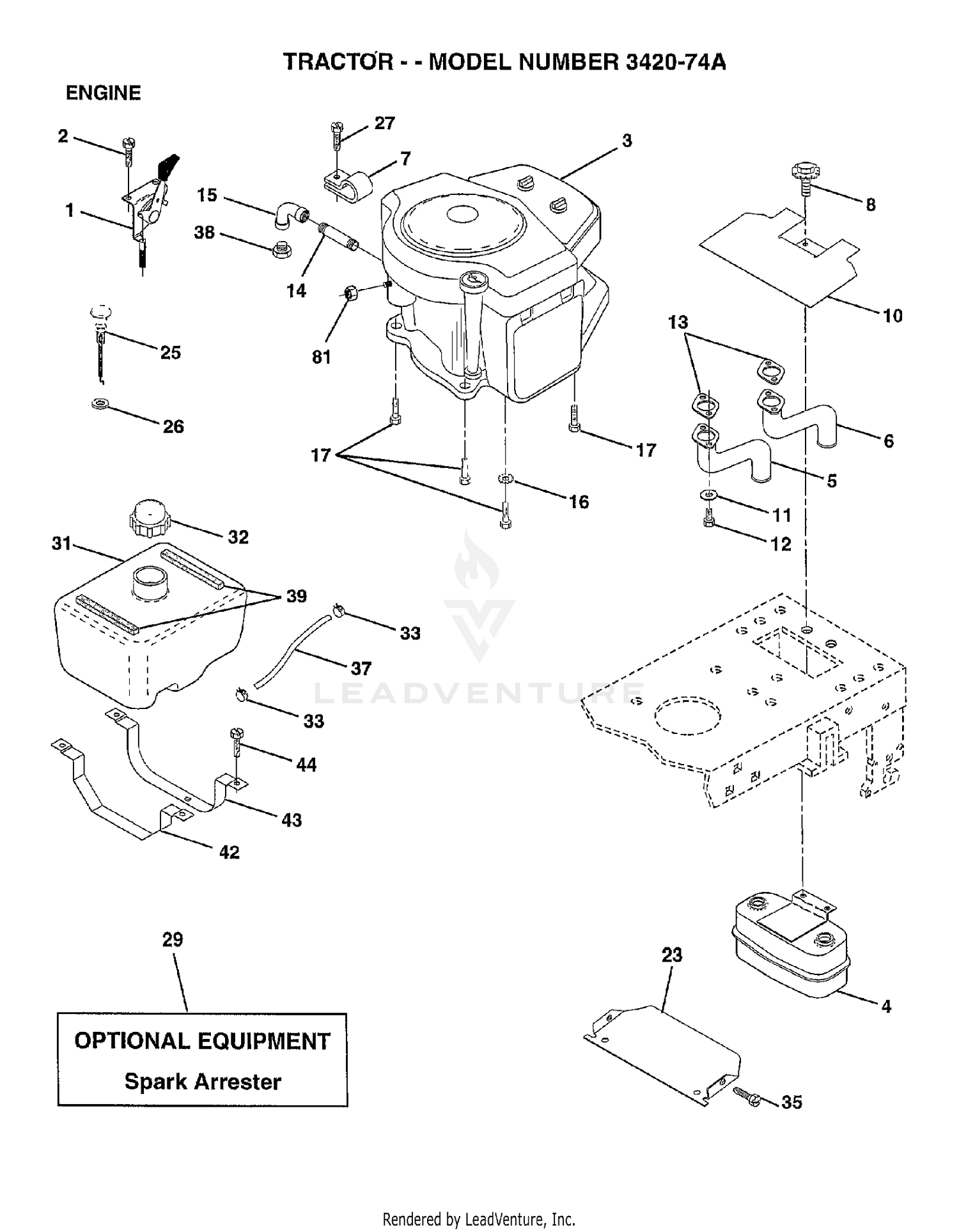

| Ref | Part Number | Description |
|---|
| 1 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 1 |
539132748 |
DECK W/DECALS 72" HUS Price: $1,199.99 |
| 2 |
37-9600-01 |
SEAT SUPPORT WA This part replaces 37-9600. Price: $351.46 |
| 2 |
817720410 |
Screw, Hex, Thread Cutting 1/4 - 20 x 5/8 TY23 (AYP part number) Price: $5.99 |
| 3 |
107-3039 |
PIN-LYNCH This part replaces 3290-243. Price: $6.96 |
| 4 |
37-9580 |
DISCONTINUED Price: Call Us |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $49.99 |
| 5 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 5 |
532144069 |
EXHAUST ASM. LEFT Price: $39.99 |
| 6 |
3220-2 |
NUT-JAM Price: $0.50 |
| 6 |
532144068 |
EXHAUST ASM. RIGHT Price: $22.99 |
| 7 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 7 |
532138129 |
CLAMP Price: $2.99 |
| 8 |
2411-33 |
BALLJOINT-RH (W/GROMMET) This part replaces 37-9570. Price: $24.45 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 532150176. Price: $3.99 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
532145552 |
SHIELD HEAT LT Price: $4.99 |
| 11 |
323-12 |
SCREW-HH Price: $1.14 |
| 11 |
810040400 |
LOCKWASHER Price: $3.99 |
| 12 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 12 |
874780412 |
Bolt, Hex Head, Fin. 1/4-20 x 3/4 Grade 5 (AYP part number) Price: $2.99 |
| 13 |
37-9590 |
DISCONTINUED Price: Call Us |
| 13 |
532272250 |
GASKET (B&S 692282) Price: $12.99 |
| 14 |
71-4490 |
SEAT SUPT BRKT WA *R This part replaces 27-9830. Price: $142.74 |
| 14 |
813280336 |
Pipe Nipple, Standard (AYP part number) This part replaces 813090336. Price: Call Us |
| 15 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 16 |
3217-6 |
NUT-HEX Price: $1.19 |
| 16 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 17 |
322-4 |
SCREW-HH Price: $0.35 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 23 |
532156123 |
Price: $6.23 |
| 25 |
532138672 |
CONTROL.CHOKE.51.00.BLK.W/BEND Price: $19.99 |
| 26 |
873920600 |
NUT KEPS 3/8 - 24 UNF Price: $3.99 |
| 27 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 31 |
532141291 |
Price: Call Us |
| 32 |
532140527 |
Cap Asm Fuel W/sym Vented (AYP part number) Price: $6.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 35 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 37 |
532007833 |
LINE FUEL 7.5" Price: $2.99 |
| 38 |
TBD |
Price: Call Us |
| 39 |
532126564 |
Price: Call Us |
| 42 |
TBD |
Price: Call Us |
| 43 |
TBD |
Price: Call Us |
| 44 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
