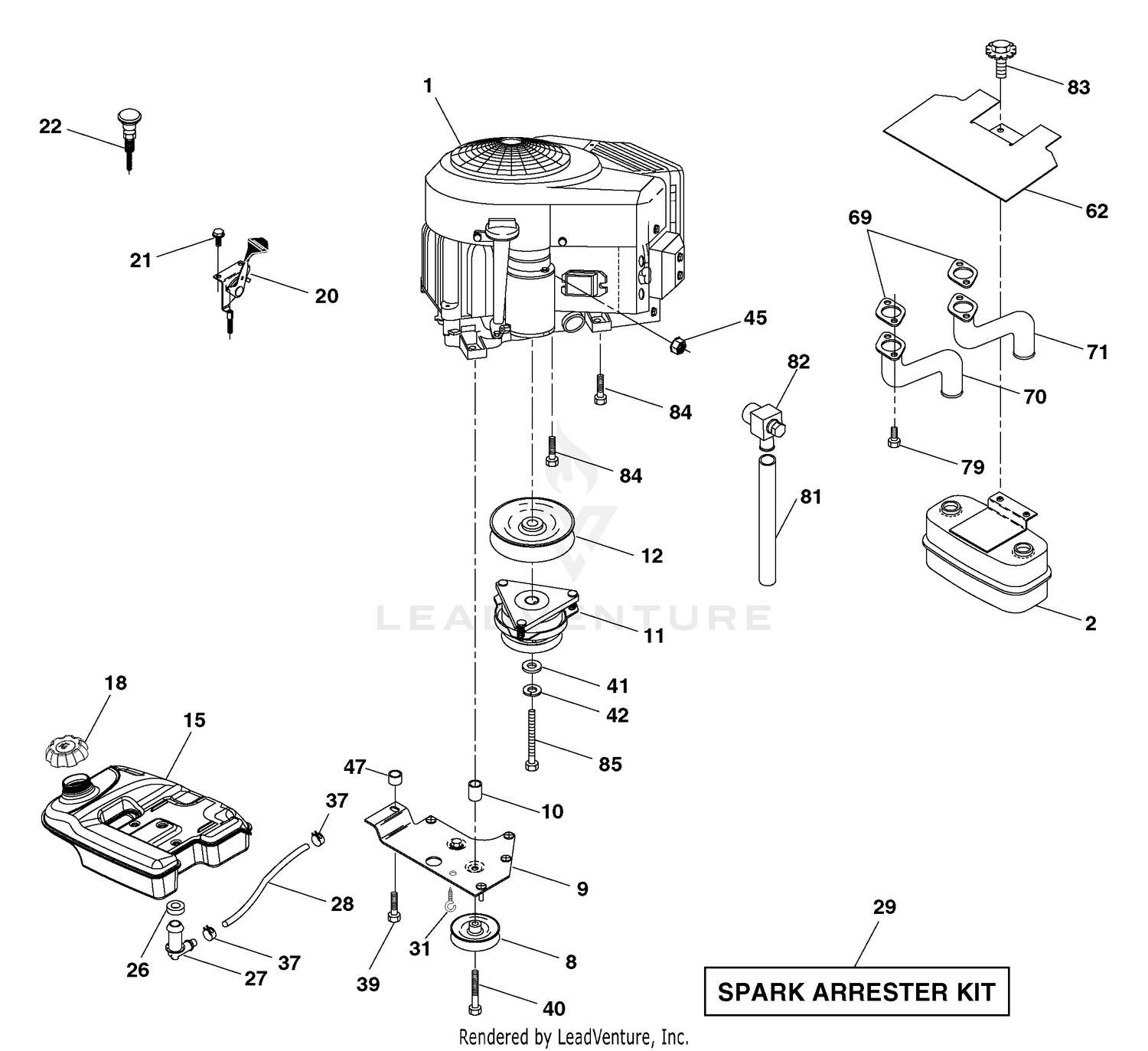

| Ref | Part Number | Description |
|---|
| 1 |
98-9508 |
WASHER-SHAFT, R-ARM Price: $0.47 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
98-9385 |
WASHER-FLAT Price: $1.24 |
| 3 |
98-9393 |
NUT Price: $2.72 |
| 4 |
98-9503 |
NUT Price: $1.33 |
| 5 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 6 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 8 |
105-3790 |
R-ARM SHAFT ASM This part replaces 98-9612. Price: $28.61 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 9 |
98-9370 |
CLIP-CIRCULAR, EXTERNAL Price: $1.30 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 10 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 12 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 13 |
98-9391 |
SCREW-SET, ROCKER ARM Price: $5.98 |
| 14 |
99-8385 |
SEAL-STEM, VALVE This part replaces 98-9496. Price: $7.29 |
| 15 |
532179115 |
TANK.FUEL.5.0 LEFT.FILL.YTGT Price: $89.99 |
| 15 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 16 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 17 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 18 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 18 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 19 |
98-9506 |
STUD Price: $5.98 |
| 20 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532188669 |
LINE.FUEL.35.25" Price: $7.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
532176069 |
TUBE.EXHAUST.B&S.VGT.LH Price: $51.99 |
| 71 |
532176070 |
TUBE.EXHAUST.B&S.VGT.RH Price: $64.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532188800 |
TUBE, DRAIN, OIL Price: $2.99 |
| 82 |
532188799 |
VALVE.OIL.DRAIN.GT Price: $45.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
