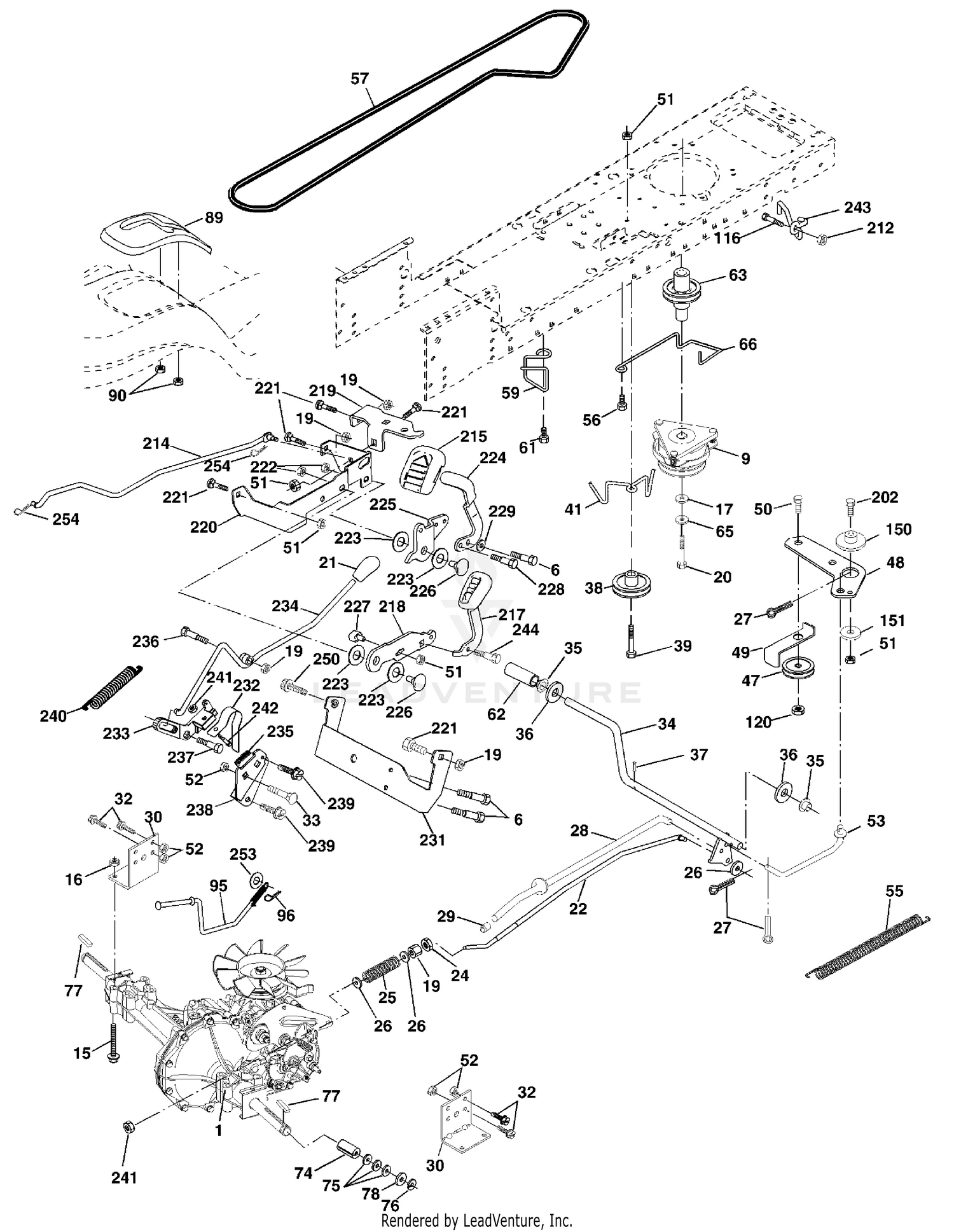

| Ref | Part Number | Description |
|---|
| 1 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 2 |
98-4517 |
AIR CLEANER ASM Price: $272.15 |
| 3 |
93-6692 |
DISCONTINUED Price: Call Us |
| 4 |
48-7430 |
PRECLEANER Price: $50.85 |
| 5 |
98-4578-03 |
BRACKET-FILTER, FUEL Price: $35.38 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 6 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 7 |
110-3257 |
HOSE-FUEL Price: $17.26 |
| 8 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 9 |
179333 |
Clutch Elec Price: Call Us |
| 9 |
32128-33 |
NUT-HF Price: $0.25 |
| 10 |
98-4525 |
BRACKET-CLEANER, AIR Price: $52.87 |
| 11 |
322-4 |
SCREW-HH Price: $0.35 |
| 12 |
145-2823 |
BATTERY - CORROSIVE This part replaces 106-5187. Price: $195.94 |
| 13 |
104-0086 |
CABLE-BATTERY, POSITIVE Price: $78.07 |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
74490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 16 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 16 |
73800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc Price: Call Us |
| 17 |
126197X |
Washer 1-1/2 OD x 15/32 ID x .250 Price: Call Us |
| 17 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 18 |
94-7343 |
BASE-BATTERY Price: $118.61 |
| 19 |
73800600 |
Nut Lock Hex W/Wsh 3/8-16 Unc Price: Call Us |
| 20 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Price: Call Us |
| 20 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 21 |
175036X421 |
Knob Custom Control Cruise Price: Call Us |
| 21 |
32128-20 |
NUT-HF Price: $0.99 |
| 22 |
175896 |
Rod, Brake Price: Call Us |
| 22 |
98-4576-03 |
BRACKET-RESERVOIR, WATER Price: $43.21 |
| 23 |
321-5 |
SCREW-HH Price: $0.22 |
| 24 |
73350600 |
Nut, Hex Jam 3/8-16 Unc Price: Call Us |
| 24 |
93-9164 |
INDICATOR-MINI Price: $55.24 |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 25 |
98-4518-03 |
BRACKET-CLEANER, AIR Price: $75.61 |
| 26 |
19131316 |
Washer Price: Call Us |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 27 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 28 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 29 |
71673 |
Cap, Brake, Park Price: Call Us |
| 29 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 30 |
169592 |
Bracket, Transaxle Price: Call Us |
| 30 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 Unc x 3/4 Price: Call Us |
| 33 |
72140506 |
Bolt Rdhd Sqnk 5/16-18 Unc x 3/4 Price: Call Us |
| 33 |
98-4509 |
HOSE-CLEANER, AIR Price: $97.00 |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 34 |
98-9305 |
WATER / FUEL FILTER ASM Price: $116.51 |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 35 |
353-783 |
FITTING-STR Price: $29.05 |
| 36 |
19211616 |
Washer Price: Call Us |
| 36 |
322-6 |
SCREW-HH Price: $0.45 |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 37 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 38 |
110-4105 |
HOSE-FUEL Price: $11.71 |
| 38 |
179114 |
Pulley, Composite, Flat Price: Call Us |
| 39 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 39 |
74760648 |
Bolt Fin Hex 3/8-16 Unc x 3 Price: Call Us |
| 41 |
175556 |
Keeper, Belt Idler Flat Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Groove Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drw Stl Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
74760624 |
Bolt Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 UNC Price: Call Us |
| 52 |
73680500 |
Nut, Crownlock 5/16-18 Unc Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1.0 Price: Call Us |
| 57 |
140294 |
V-Belt, Ground Drive Price: Call Us |
| 59 |
169691 |
Keeper, Center Span Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
175776 |
Pulley, Engine Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 89 |
174901X428 |
Console, Shift Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wsh-hd 1/4 Zinc Price: Call Us |
| 95 |
180825 |
Rod Bypass Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 116 |
72140608 |
Bolt RDHD SQNK 3/8-16 Unc x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 Unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 202 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 212 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 214 |
174735 |
Link Transaxle Price: Call Us |
| 215 |
175646 |
Cover Pedal Forward Price: Call Us |
| 217 |
179433 |
Pedal Reverse Price: Call Us |
| 218 |
174713 |
Arm Control Pedal Reverse Price: Call Us |
| 219 |
174839 |
Bracket Frest Pdl Ctrl. Hyd Price: Call Us |
| 220 |
174711 |
Bracket Mtg. Pedal Control Price: Call Us |
| 221 |
72140606 |
Bolt Rdhd Sqnk 3/8-16 Unc x 3/4 Price: Call Us |
| 222 |
73680700 |
Nut Crownlock 7/16-14 Unc Price: Call Us |
| 223 |
174840 |
Washer Nylon 11/16 ID x .060 Price: Call Us |
| 224 |
174736 |
Pedal Forward Price: Call Us |
| 225 |
174712 |
Arm Control Pedal Forward Price: Call Us |
| 226 |
174902 |
Bolt Pivot Spacer Price: Call Us |
| 227 |
174710 |
Cam Reverse Pedal LT Price: Call Us |
| 228 |
179032 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 229 |
176451 |
Washer Serrated 5/16 x .75 Price: Call Us |
| 231 |
174573 |
Strap Torque Price: Call Us |
| 232 |
175570 |
Actuator Cruise Disengage Price: Call Us |
| 233 |
174856 |
Pawl Control Cruise Price: Call Us |
| 234 |
174858 |
Lever Control Cruise Price: Call Us |
| 235 |
174857 |
Sector Control Cruise Price: Call Us |
| 236 |
128903 |
Bolt Shoulder 3/8-16 Unc 1/44 Price: Call Us |
| 237 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 238 |
175807 |
Arm Mtg. Cruise Sector Price: Call Us |
| 239 |
17490508 |
Screw Thdrol 5/16 x 1/2 Price: Call Us |
| 240 |
175610 |
Spring Return Cruise Control Price: Call Us |
| 241 |
73930400 |
Nut Centerlock 1/4-20 Unc Price: Call Us |
| 242 |
74780412 |
Bolt Fin Hex 1/4-20 Unc x .75 Price: Call Us |
| 243 |
178289 |
Bracket Anti-Rotation CVX Price: Call Us |
| 244 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 250 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
