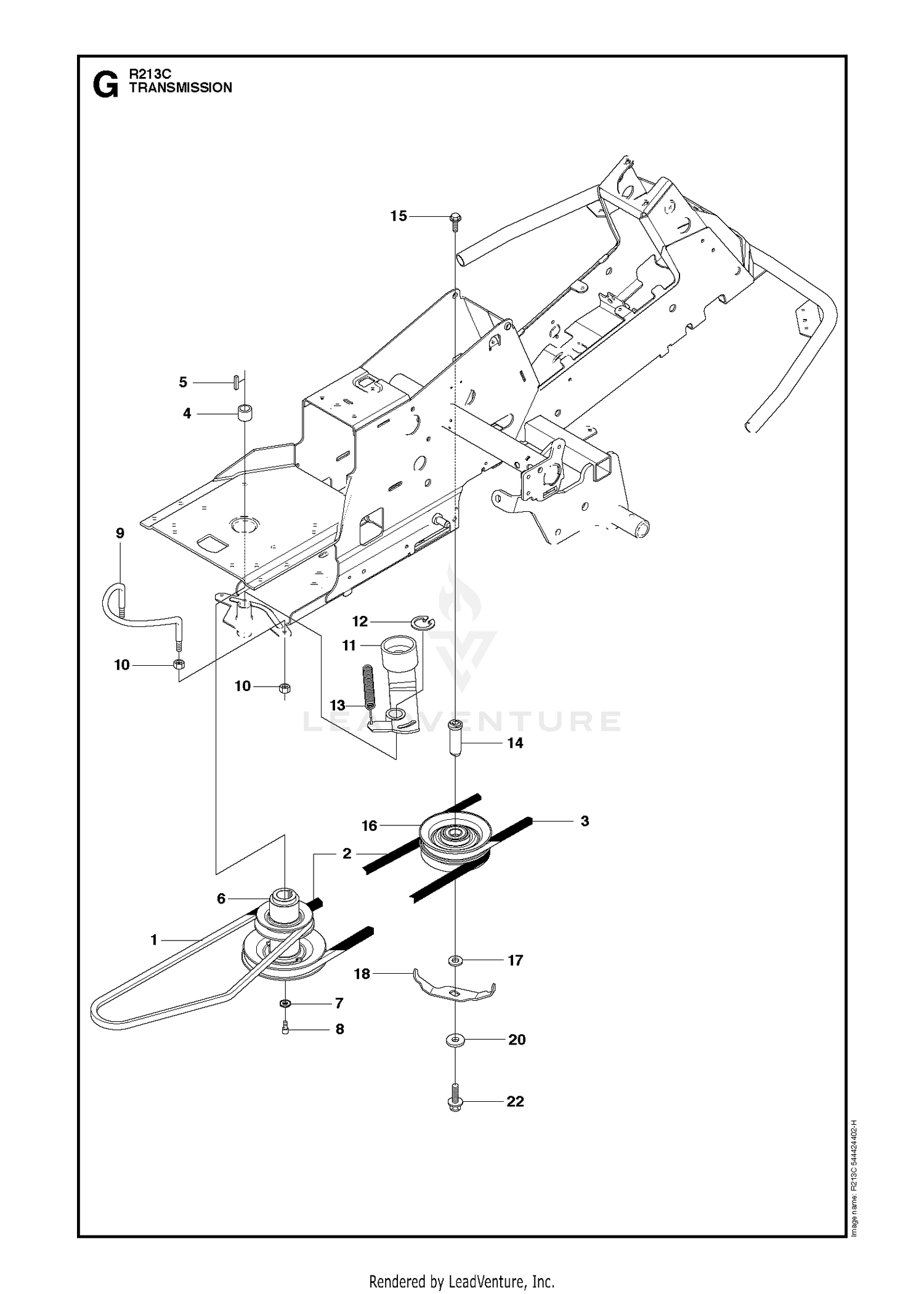

TRANSMISSION
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 138-1910 | SUCTION TUBE ASM Price: $119.27 |
| 1 | 589531201 | BELT Price: $27.99 |
| 2 | 125-2891 | TUBE ASM Price: $58.70 |
| 2 | 599675902 | BELT KIT This part replaces 589530401. Price: $44.99 |
| 3 | 32180-030 | CLIP-TIE Price: $4.19 |
| 3 | 594977801 | Belts This part replaces 589530001. Price: $34.99 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 104-7201 | NUT-HF Price: $0.69 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 7 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 2412-4 | CLAMP-R Price: $4.22 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 9 | 56-7972 | CLAMP-TUBE Price: $13.55 |
| 10 | 125-2893 | TUBE ASM Price: $174.38 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 12 | 240-5 | GROMMET Price: $13.66 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 13 | 69-8960 | SPACER Price: $5.29 |
| 14 | 117-3200 | HOSE-SUCTION Price: $94.47 |
| 14 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 15 | 120-0245 | BRACKET-SUPPORT Price: $13.81 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 119-1418 | PLATE-CLAMP, SHORT Price: $10.91 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 18 | 69-8930 | WASHER Price: $0.81 |
| 19 | 131-3358 | STEER MANIFOLD/FRONT CYL TUBE ASM Price: $94.73 |
| 20 | 110-0928 | HOSE-HYD Price: $87.44 |
| 20 | 506597501 | WASHER Price: $6.99 |
| 21 | 56-7973 | CLAMP-TUBE Price: $15.56 |
| 22 | 125-2887 | STEER/FRONT TUBE ASM Price: $166.93 |
| 22 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 23 | 125-2890 | STEER/LIFT TUBE ASM Price: $170.73 |
| 24 | 131-3351 | STEER/STEER MANIFOLD TUBE ASM Price: $96.54 |
| 25 | 127-4872 | STEER/DRAIN TUBE ASM Price: $207.46 |
| 26 | 3230-4 | BOLT-CARR Price: $0.47 |
| 27 | 2412-87 | CLAMP-CABLE Price: $2.89 |
| 28 | 340-127 | NUT-BULKHEAD Price: $2.24 |
| 29 | 3290-378 | TIE-CABLE Price: $0.79 |
| 31 | 117-3122 | HOSE ASM Price: $69.46 |
| 32 | 119-1433 | HOSE ASM Price: $100.46 |
| 33 | 100-5629 | HOSE ASM Price: $111.26 |
| 34 | 117-3123 | HYD HOSE ASM Price: $72.11 |
| 35 | 109-0275 | HOSE-FUEL Price: $12.99 |
| 36 | 117-3121 | HOSE ASM Price: $34.73 |
| 37 | 105-4193 | HYD HOSE ASM Price: $135.65 |
| 38 | 117-3114 | TUBE-DRAIN, COOLER Price: $150.02 |
| 39 | 119-8114 | HYD HOSE ASM Price: $78.74 |
| 40 | 3334-945 | TIE-CABLE Price: $0.43 |
| 41 | 3230-23 | SCREW-CARR Price: $0.89 |
