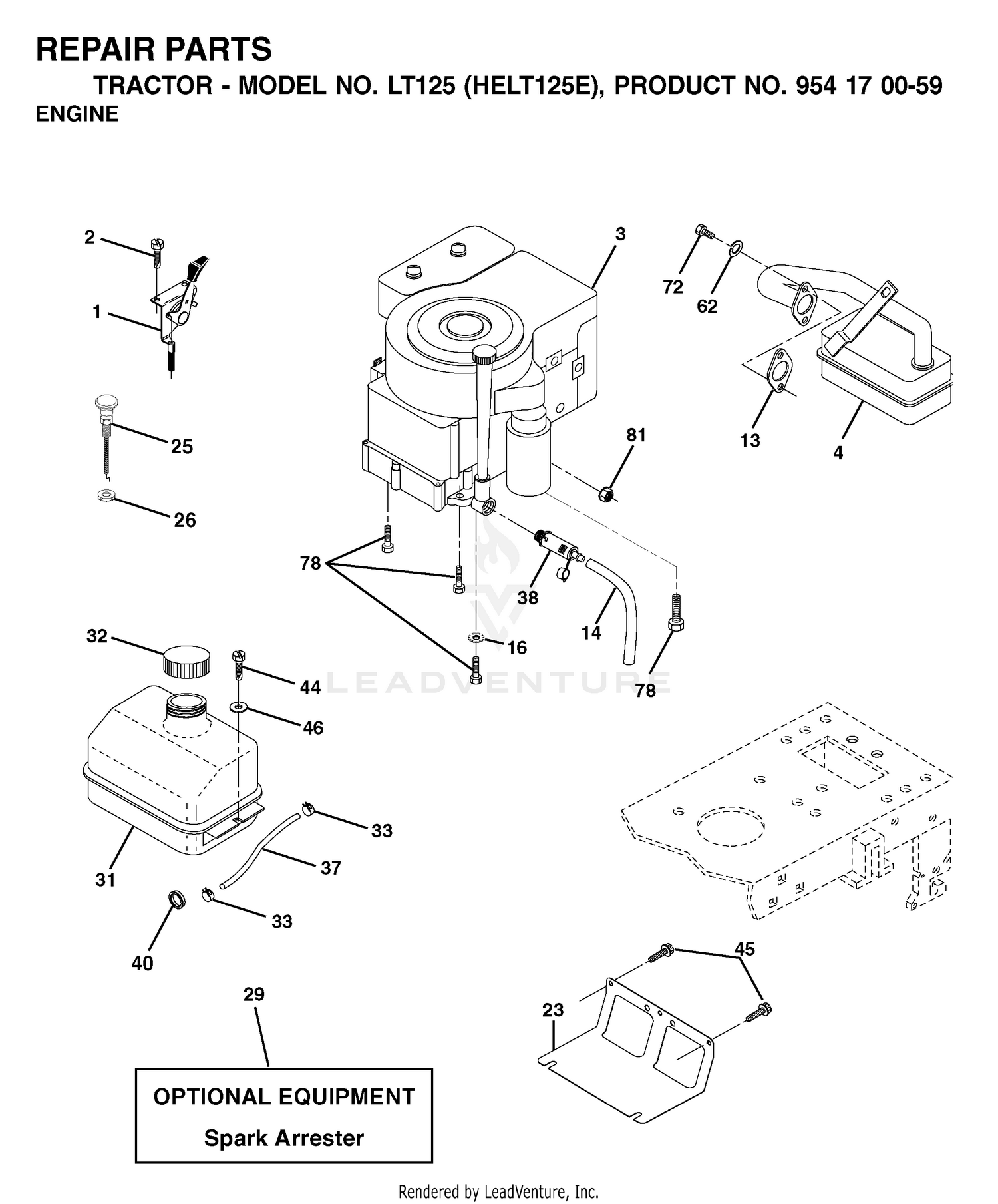

| Ref | Part Number | Description |
|---|
| 1 |
127-3108 |
GASKET-MANIFOLD, EXHAUST Price: $14.96 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 2 |
127-3136 |
MANIFOLD-EXHAUST Price: $713.28 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
127-3094 |
BOLT Price: $14.14 |
| 4 |
127-3044 |
BOLT-M10 Price: $29.50 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
127-3140 |
SENSOR-TEMP, EXHAUST Price: $199.61 |
| 6 |
127-3087 |
BAND-CLIP Price: $2.45 |
| 7 |
125-7043 |
STUD Price: $12.44 |
| 8 |
127-3038 |
EXHAUST PIPE ASM Price: $149.15 |
| 9 |
127-3173 |
CLAMP Price: $17.96 |
| 10 |
127-3039 |
BOLT-JOINT, PIPE Price: $133.48 |
| 11 |
127-3174 |
GASKET Price: $1.28 |
| 12 |
125-7206 |
BOLT Price: $1.97 |
| 13 |
127-3042 |
COOLER-E G R Price: $756.82 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
127-3043 |
GASKET-COOLER, E G R Price: $3.64 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
127-2976 |
BOLT Price: $4.58 |
| 16 |
127-3022 |
BOLT-FLANGE Price: $33.05 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
127-3048 |
E G R PIPE ASM Price: $147.48 |
| 18 |
127-3049 |
PIPE-OUT, E G R Price: Call Us |
| 19 |
125-7043 |
STUD Price: $12.44 |
| 20 |
125-7220 |
BOLT Price: $4.99 |
| 21 |
127-2984 |
STUD Price: $24.67 |
| 22 |
127-3137 |
PIPE-EXHAUST Price: Call Us |
| 23 |
127-3138 |
BOLT-FLANGE Price: $46.10 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
125-7071 |
GASKET Price: $7.59 |
| 25 |
125-7229 |
NUT Price: $3.12 |
| 25 |
532180945 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
127-3047 |
SENSOR-GAS TEMP, E G R Price: $220.43 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 27 |
127-3109 |
E G R PIPE ASM Price: $395.45 |
| 28 |
127-3016 |
GASKET Price: $3.83 |
| 29 |
125-7215 |
BOLT Price: $3.48 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
125-7229 |
NUT Price: $3.12 |
| 31 |
127-3110 |
VALVE-E G R Price: $2,129.04 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 32 |
127-3050 |
GASKET-INTAKE VALVE, E G R Price: $5.09 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
127-3051 |
GASKET-OUT VALVE, E G R Price: $4.47 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
125-7229 |
NUT Price: $3.12 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
