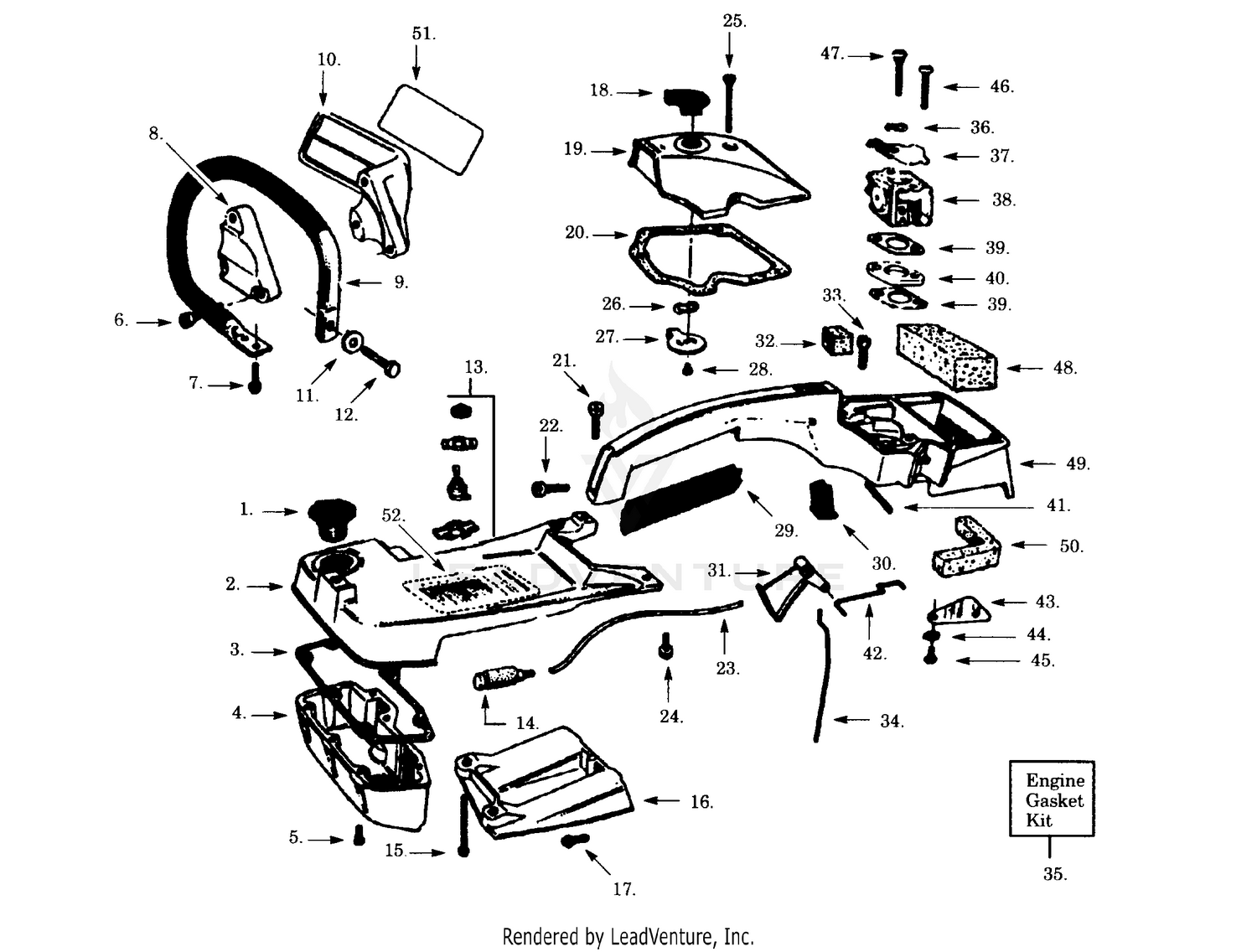

HANDLE HOUSING
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5118 | SHAFT-ADJUSTER Price: $44.64 |
| 1 | 530010123 | Fuel Cap Ass'y. Price: $5.68 |
| 2 | 120-5116 | WASHER-WAVE Price: $9.17 |
| 2 | 530012259 | Fuel Tank Top Price: $37.99 |
| 3 | 106-5344 | BUSHING-FLANGE, KEYED Price: $2.37 |
| 4 | 108-0015 | WASHER-FLAT Price: $0.39 |
| 4 | 530012260 | Fuel Tank Bottom Price: $29.99 |
| 5 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 5 | 530015138 | Screw Price: $1.99 |
| 6 | 137-6130 | SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 6 | 530015509 | Screw Price: $1.99 |
| 7 | 119-4155 | WASHER-HARDENED Price: $4.16 |
| 7 | 530015037 | Screw Price: $1.99 |
| 8 | 120-5120 | SPRING-COMPRESSION Price: $2.89 |
| 8 | 530024049 | Handguard Cap Price: $0.52 |
| 9 | 530022310 | Front Handlebar Price: $3.33 |
| 10 | 530024089 | Handguard Price: $11.99 |
| 11 | 530015151 | Washer Price: $1.99 |
| 12 | 530001648 | Screw Price: $1.99 |
| 13 | 530023573 | Start/Stop Switch Price: $3.33 |
| 14 | 530095646 | Assy-Fuel Pickup This part replaces 530014199. Price: $2.99 |
| 15 | 530015152 | Screw Price: $1.99 |
| 16 | 530011147 | Cylinder Shield Price: $14.99 |
| 17 | 530001709 | Screw Price: $1.99 |
| 18 | 530023376 | Choke Knob Price: $1.99 |
| 19 | 530011558 | Carburetor Cover Price: $22.99 |
| 20 | 530019055 | Carb. Cover Gasket Price: $3.99 |
| 21 | 530015239 | Screw Price: $1.99 |
| 22 | 530015247 | Screw Price: $1.99 |
| 23 | 530069216 | Line Kit (Bulk 8133) Price: $3.99 |
| 24 | 530015476 | Screw Price: $1.99 |
| 25 | 530015144 | Screw Price: $1.99 |
| 26 | 530015147 | Wave Washer Price: $1.99 |
| 27 | 530023876 | Choke Lever Price: $1.99 |
| 28 | 530015407 | Screw Price: $0.56 |
| 29 | 530024111 | Handle Grip Price: $1.99 |
| 30 | 530023362 | Oil Pump Button Price: $0.28 |
| 31 | 530024672 | Trigger Price: $1.99 |
| 32 | 530023373 | Throttle Wire Boot Price: $1.99 |
| 33 | 530001636 | Screw Price: $1.99 |
| 34 | 530023361 | Oil Pump Push Rod Price: $1.99 |
| 35 | 530069023 | Engine Gasket Kit Price: $3.33 |
| 36 | 530015146 | Wave Washer Price: $1.99 |
| 37 | 530023841 | Choke Shutter Price: $1.99 |
| 38 | 530035265 | Carburetor Price: $3.33 |
| 39 | 530019045 | Carb. Gasket Price: $1.99 |
| 40 | 530023872 | Spacer Price: $7.99 |
| 41 | 530015145 | Trigger Pin Price: $1.99 |
| 42 | 530023372 | Throttle Rod Price: $1.99 |
| 43 | 530023366 | Reed Price: $1.99 |
| 44 | 530023367 | Washer Price: Call Us |
| 45 | 530015139 | Screw Price: $1.99 |
| 46 | 530015257 | Screw Price: $1.99 |
| 47 | 530015256 | Screw Price: $1.99 |
| 48 | 530023369 | Air Filter Price: $1.00 |
| 49 | 530011548 | Handle & Carb. Hsg. Price: $3.33 |
| 50 | 530023388 | Dust Seal Price: $1.99 |
| 51 | 530026849 | Handguard Decal Price: $0.12 |
