Home / OPE / *MTD Legacy 1985-2005 / Cenex / 12-Self-Propelled Walk-Behind Mowers / 1986 Models / Cenex 126-365-095 / Parts

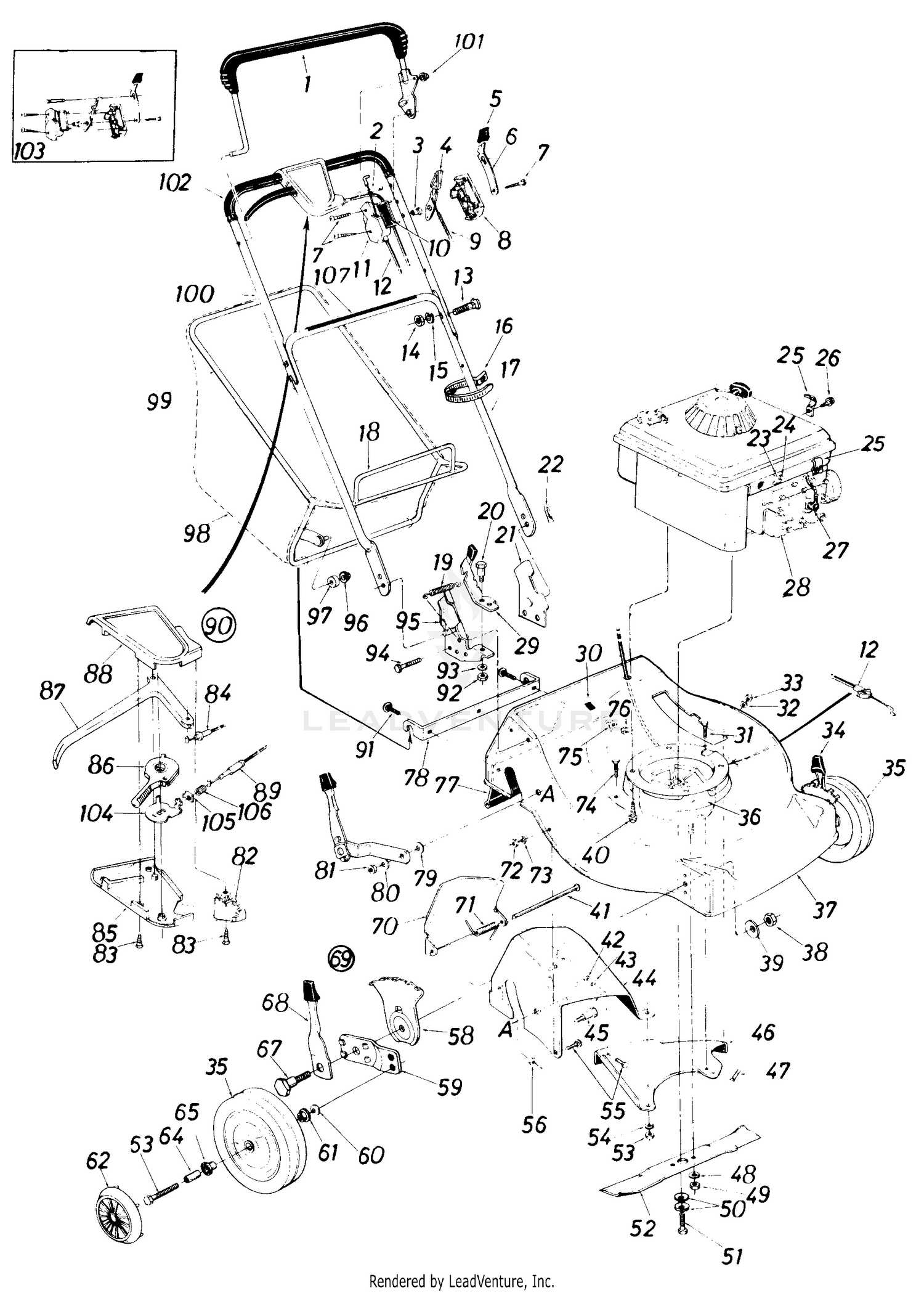

Parts

Parts

Parts (103)

RefPart NumberDescription
1 731-0609 BAIL (LH) Not Available Price:
2 731-0607 LOCKING PIN Not Available Price:
3 731-0524 CONROL DISC PIN Not Available Price:
4 931-0972 Throttle Control Lever This part replaces 731-0528. Price: $8.84
5 731-13116-1 HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01
6 732-0401 SPRING-LOCKOUT Not Available Price:
7 710-0796 Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg. Price: $4.75
8 731-0817 PANEL Not Available Price:
9 946-0674A Throttle Wire-58" Lg. Not Available This part replaces 746-0633. Price:
10 777-5774 Control Label Price: Call Us
11 731-0816 CIUTCH PANEL HALF Not Available Price:
12 946-0405 CLUTCH CABLE Not Available This part replaces 746-0400A. Price:
13 710-0671 BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price:
14 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
15 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
16 725-0157 Cable Tie This part replaces 726-0240. Price: $3.46
17 749-0907B Lower Handle This part replaces 749-0505. Price: $43.95
18 14582 CATCHER LOWER FRAME Not Available Price:
19 732-0357A Extension Spring .33 OD x 1.12 Lg. This part replaces 732-0357. Price: $3.94
20 938-0155 Shoulder Bolt This part replaces 738-0155. Price: $6.01
21 12297 BRACKET ASSEMBLY Not Available Price:
22 714-0104 Hairpin Cotter 5/16" Dia. Price: $3.90
23 710-0651 Hex Wash. Hd. Self-Tap Scr. This part replaces 710-0436. Price: $3.15
24 751-0442 CASING CLAMP Not Available Price:
25 12894 CABLE CLAMP Not Available Price:
26 910-0429 Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20
27 735-0639 INSULATOR-SPARK PLUG Not Available Price:
28 N/A Engine
29 14845 CATCHER LOCK LEVER W/ KNOB Not Available Price:
30 731-0564 PLUG Not Available Price:
31 710-0642 Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05
32 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
33 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
34 753-06761 Height Adj. Ass'y. Comp. (R.H.) This part replaces 14579. Price: $57.55
35 N/A Front Wheel Ass'y. Comp.
36 717-0485 BLADE BRAKE CLUTCH ASS'Y. COMP. Not Available Price:
37 16327 DECK ASSEMBLY-22IN Not Available Price:
38 712-0798 Hex Nut 3/8-16 Thd.* Price: $3.86
39 936-0356 BELL WASHER Not Available This part replaces 736-0356. Price:
40 710-0654A TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75
41 738-0386 HINGE PIN Not Available Price:
42 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
43 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
44 14236 BAFFLE-CHUTE-RR-RH Not Available Price:
45 738-0430 Shld. Bolt.500" Dia. Price: $10.55
46 14014 Rear Baffle-L.H. Price: Call Us
47 710-05177 CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26
48 736-0169 L-Wash. 3/8" I.D.* Price: $3.33
49 712-0241 Hex Nut 3/8-24 Thd. This part replaces 712-0328. Price: $3.86
50 736-0105 Bell-Wash. .40" I.D. x .88" Price: $3.96
51 710-0818 Hex Cl-Bolt 3/8-24 x 2.0" Lg. (Grade 8) Price: $5.95
53 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
54 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
55 710-05177 CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26
56 712-0271 Hex Sems Nut 1/4-20 Thd. Price: $3.78
58 787-01290A Height Adjustment Plate This part replaces 15261. Price: $10.58
59 15262B Pivot Bar This part replaces 15262. Price: $13.59
60 736-0105 Bell-Wash. .40" I.D. x .88" Price: $3.96
61 N/A Bearing
62 N/A Plastic Hub Cap
63 N/A Axle Bolt
65 N/A Bearing
67 738-0507B Shoulder Bolt .50" Dia. This part replaces 738-0507. Price: $3.86
68 94832 Front Spring Lever This part replaces 14832. Price: $9.48
69 753-06761 Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55
70 13407 CHUTE DOOR Not Available Price:
71 732-0346 TORSION SPRING Not Available Price:
72 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
73 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
74 710-0206 Hex Bolt 1/4-20 x .88" Lg. Price: $3.94
75 736-0211 Fl-Wash. .285" I.D. x 1.25" Price: $5.99
76 712-0271 Hex Sems Nut 1/4-20 Thd. Price: $3.78
77 731-0664 FLAP Not Available Price:
78 14012 ADAPTER-GR Not Available Price:
79 936-0219 Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86
80 736-0105 Bell-Wash. .40" I.D. x .88" Price: $3.96
81 912-3008 Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08
82 731-0763 CABLE MOUNTING CAP Not Available Price:
83 710-0841 Flat 'C"Sunk Hd. Tap Scr. #10 x .75" Lg. Price: $3.95
84 746-0466 CABLE-53" LONG Not Available Price:
85 731-0762 LOWER COVER Not Available Price:
86 717-0822 LEVER-3 SP SHIFT Not Available Price:
87 731-0620A Drive Control This part replaces 731-0620. Price: $13.59
88 731-0761 UPPER COVER Not Available Price:
89 717-0823 SHIFT CABLE Not Available Price:
90 753-0417 KIT-CLUTCH Not Available Price:
91 710-0703 Carr. Bolt 1/4-20 x .75" Lg. Price: $3.66
92 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
93 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
94 710-0892 SCREW 1/4-14 x .625 Not Available Price:
95 14592 Handle Brkt. Ass'y.-R.H. Price: Call Us
96 726-0100 Push Nut 3/8" Rod Price: $3.75
97 731-0430 ROLLER-PLASTIC Not Available Price:
98 764-0171 GRASSBAG Not Available Price:
99 749-0278 FRAME-CATCHER-UPR Not Available Price:
100 749-0437 Upper Handle (Chrome) Price: Call Us
101 726-0111 PUSH NUT Not Available Price:
102 718-0145 Grip Price: Call Us
103 753-0431 KIT-THROTTLE CONTROL Not Available Price:
104 717-0827 BRACKET Not Available Price:
105 717-0829 Shimano 3-Sp. Cable Spring Brkt. Price: Call Us
106 717-0828 Shimano 3-Sp. Cable Mounting Spring Price: Call Us
107 777-5775 Instruction Label Price: Call Us
