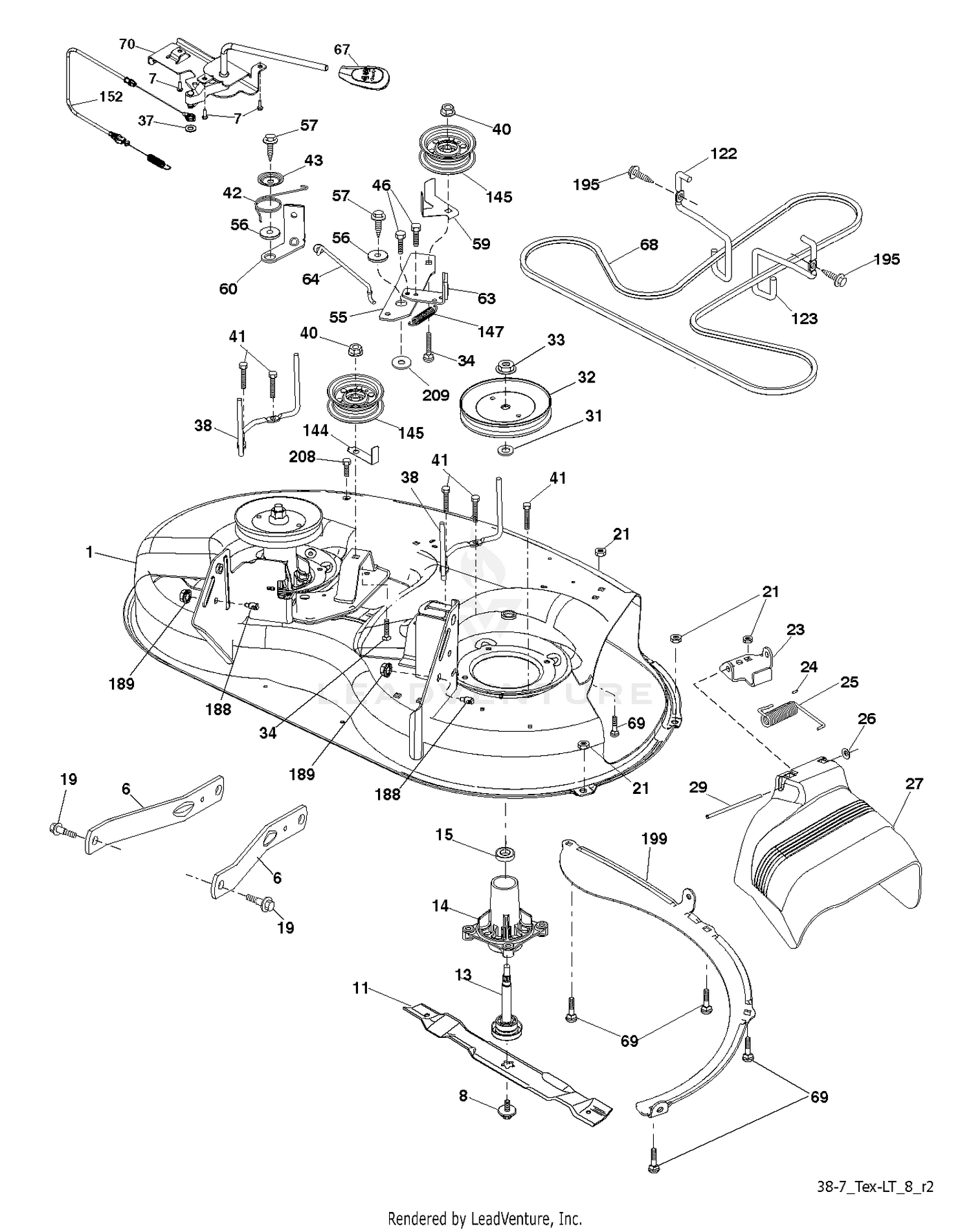

| Ref | Part Number | Description |
|---|
| 1 |
38-9370 |
RH CASTOR ARM ASM Price: $946.82 |
| 1 |
532194251 |
HOUSING Price: $139.99 |
| 2 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 3 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
26-1890 |
DISCONTINUED Price: Call Us |
| 5 |
3217-7 |
NUT-HEX Price: $0.28 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
39-3330-01 |
PLATE-CLAMP, CASTOR ARM This part replaces 39-3330. Price: $36.10 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
325-13 |
SCREW-HH Price: $3.57 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
39-3340-01 |
BRACKET-ARM CLAMP This part replaces 39-3340. Price: $101.90 |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 11 |
532193957 |
BLADE 38" PREMIUM Price: $14.99 |
| 11 |
8-0909 |
DISCONTINUED Price: Call Us |
| 12 |
93-9838-03 |
SHROUD-SHAFT, DRIVE This part replaces 26-2250. Price: $56.70 |
| 13 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
26-1900 |
DISCONTINUED Price: Call Us |
| 17 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 18 |
26-1580 |
SPACER 1/2 IN Price: $9.91 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 19 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
38-9420 |
LH CASTOR ARM ASM Price: $993.47 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 23 |
99-5690 |
CASTOR FORK ASM This part replaces 26-1560. Price: $183.50 |
| 24 |
3220-5 |
NUT-JAM Price: $0.65 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
21-3870 |
AXLE ASM Price: $14.07 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
3254-4 |
WASHER-LOCK/INT Price: $0.34 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532192572 |
SHIELD.DEFLECTOR.MOWER.38" This part replaces 532193968. Price: $49.99 |
| 27 |
99-5693 |
BEARING RETAINER W/WASHER This part replaces 40-9390. Price: $18.61 |
| 28 |
21-1030 |
SPANNER BUSHING Price: $17.87 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
21-3860 |
WHEEL Price: $85.23 |
| 31 |
21-3850 |
ROLLER BRG W/46-8960 Price: $15.21 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
3233-1 |
SCREW-CARR Price: $1.42 |
| 32 |
532199789 |
PULLEY.MANDREL.5.0.PD.38" Price: $14.99 |
| 33 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
3217-9 |
NUT-HH Price: $0.37 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 36 |
3217-8 |
NUT-HEX Price: $1.34 |
| 37 |
325-22 |
SCREW-HH This part replaces 325-21. Price: $4.26 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
3-6778 |
AXLE SLINGER Price: $1.98 |
| 38 |
532400140 |
KEEPER, MANDREL BELT This part replaces 532199541. Price: $24.99 |
| 39 |
3-6777 |
WASHER Price: $1.98 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
3-6775 |
WASHER Price: $1.21 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $1.99 |
| 42 |
3-0139 |
DISCONTINUED X-REF Price: Call Us |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
46-6230 |
DISCONTINUED This part replaces 3-6774. Price: Call Us |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 44 |
3-6776 |
SPACER Price: $9.65 |
| 45 |
32146-13 |
NUT-HEX Price: $3.49 |
| 46 |
26-1530-01 |
FORK-CASTOR This part replaces 26-1530. Price: $178.41 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 48 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 49 |
3-1365 |
CHAIN This part replaces 21-3160. Price: $72.97 |
| 50 |
5-2942 |
SHACKLE Price: $16.99 |
| 55 |
532197249 |
IDLER.ARM Price: $3.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 63 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $12.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
532408381 |
V-BELT Price: $39.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX Price: $54.99 |
| 144 |
532193414 |
KEEPER BELT Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401872 |
SPRING RETURN Price: $2.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $19.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 199 |
532400095 |
BAFFLE.VORTEX.FRONT.38" Price: $12.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 209 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
