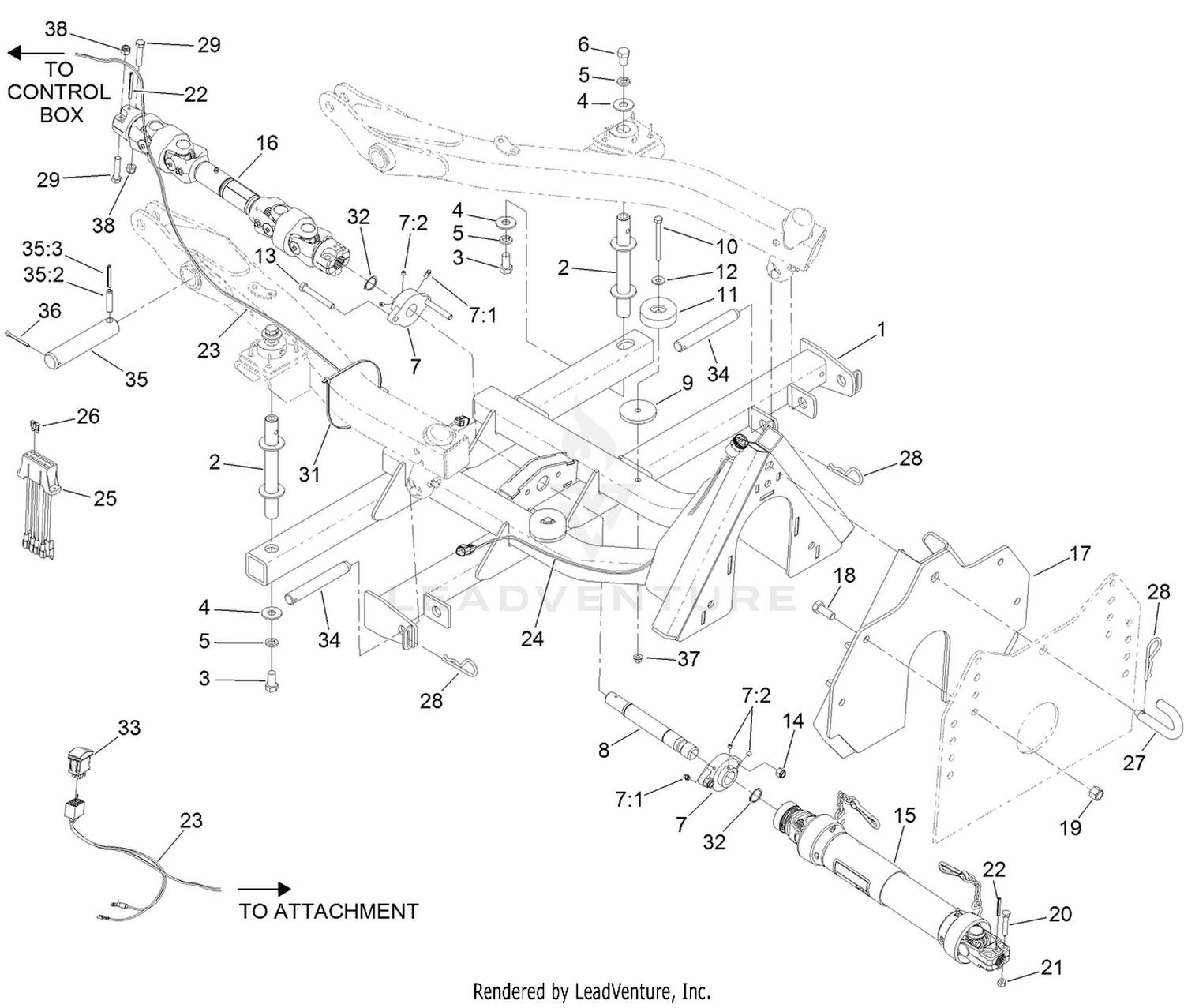

| Ref | Part Number | Description |
|---|
| 1 |
127-6261-03 |
FRAME-CARRIER Price: $1,803.31 |
| 2 |
110-8513 |
SUPPORT Price: $193.29 |
| 3 |
325-4 |
SCREW-HH Price: $0.95 |
| 4 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 5 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 6 |
325-2 |
SCREW-HH Price: $1.02 |
| 7 |
107-7851 |
BEARING-FLANGE, 2 BOLT Price: $62.42 |
| 8 |
107-2604 |
SHAFT Price: $168.99 |
| 9 |
127-6272 |
SPACER Price: $34.00 |
| 10 |
322-20 |
SCREW-HH Price: $1.79 |
| 11 |
108-1605 |
BUMPER-RECESS Price: $10.02 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
130-8580 |
DRIVE SHAFT ASM Price: $590.83 |
| 16 |
130-8581 |
CV DRIVE SHAFT ASM Price: $1,517.16 |
| 17 |
121-9922-03 |
PLATE-MOUNTING Price: $225.04 |
| 18 |
325-5 |
SCREW-HH Price: $1.20 |
| 19 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 20 |
322-9 |
SCREW-HH Price: $3.09 |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 23 |
122-0450 |
HARNESS-WIRE, CONSOLE Price: $92.91 |
| 24 |
122-0451 |
HARNESS-WIRE, BLOWER Price: $137.86 |
| 25 |
92-2641 |
BLOCK-FUSE Price: $82.71 |
| 26 |
218-578 |
FUSE-BLADE, 10 AMP Price: $2.58 |
| 27 |
110-9792 |
PIN-LOCK Price: $28.59 |
| 28 |
3290-256 |
PIN-HAIR Price: $1.01 |
| 29 |
323-52 |
SCREW-HH Price: $3.63 |
| 31 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 32 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 33 |
100-1535 |
SWITCH Price: $84.91 |
| 34 |
107-7904 |
PIN-CLEVIS Price: $36.06 |
| 35 |
98-2330 |
PIVOT PIN ASM Price: $62.61 |
| 36 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 37 |
104-8300 |
NUT-HF, NI Price: $0.39 |
