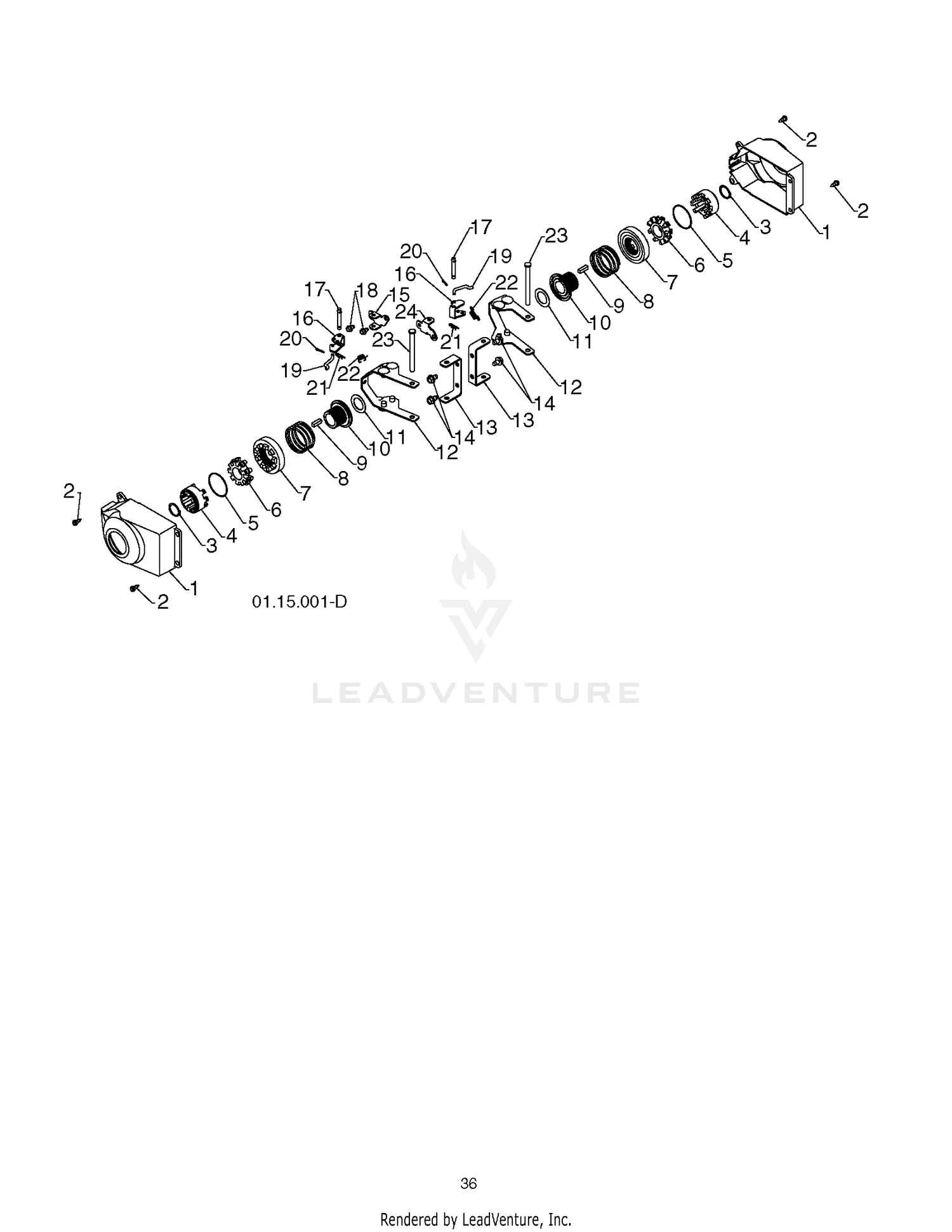

| Ref | Part Number | Description |
|---|
| 1 |
32112-1 |
PUSHNUT-CAP, WASHER Price: $5.59 |
| 1 |
532405161 |
COVER, POWER STEERING Price: $5.99 |
| 2 |
532184471 |
SCREW, HEX HEAD, TAPPING Price: $2.99 |
| 2 |
77-6540 |
PIN-HINGE Price: $69.74 |
| 3 |
812000045 |
RING Price: $3.99 |
| 3 |
82-5870 |
FOAM Price: $11.69 |
| 4 |
581645001 |
DRIVER.WHEEL This part replaces 532192126. Price: $17.99 |
| 4 |
93-3237-03 |
COVER-REAR Price: $425.80 |
| 5 |
28-0540 |
BOLT-SHOULDER Price: $11.99 |
| 5 |
532182466 |
RING, WIRE RETAINER Price: $3.99 |
| 6 |
532187622 |
LOBE WHEEL Price: $11.99 |
| 6 |
77-6890 |
LATCH ROD ASM Price: $130.41 |
| 7 |
581644901 |
SLIDE.CLUTCH.SNOW This part replaces 532194941. Price: $17.99 |
| 7 |
80-4980 |
WASHER-THRUST Price: $17.04 |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
532179139 |
SPRING, CLUTCH SLIDE Price: $2.99 |
| 9 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $3.99 |
| 9 |
93-4376 |
SEAL-LEFT Price: $131.36 |
| 10 |
581645101 |
LOBE.AXLE This part replaces 532194940. Price: $8.99 |
| 10 |
93-4375 |
SEAL-RIGHT Price: $131.36 |
| 11 |
532444949 |
WASHER 1.00 Price: $2.99 |
| 11 |
77-6430-03 |
ARM-HOPPER Price: $988.31 |
| 12 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 12 |
532445266 |
YOKE.WELDMENT.STEER.BLACK Price: $14.99 |
| 13 |
115-0625 |
LINK ASM Price: $182.59 |
| 13 |
532184197 |
BRACKET.STEER.PNT.BLACK Price: $4.99 |
| 14 |
32153-5 |
NUT-HEX Price: $1.59 |
| 14 |
817490508 |
SCREW LT Price: $3.99 |
| 15 |
532194943 |
BRKT.STEER.PIVOT.RH This part replaces 532199511. Price: $2.99 |
| 16 |
532194944 |
BELLCRANK.STEER This part replaces 532199518. Price: $2.99 |
| 17 |
532181847 |
PIN, STEERING BELLCRANK Price: $8.99 |
| 18 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 19 |
108-1390 |
HOPPER ASM Price: $2,492.83 |
| 19 |
532405077 |
LINK.STEER.YOKE Price: $2.99 |
| 20 |
532700279 |
RETAINER CLIP Price: $3.99 |
| 20 |
93-4374 |
SEAL-LH Price: $41.66 |
| 21 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 22 |
532193885 |
SPRING LATCH Price: $2.99 |
| 23 |
3290-415 |
RIVET Price: $0.28 |
| 23 |
532182015 |
PIN, STEERING LEVER Price: $2.99 |
| 24 |
80-4760 |
DECAL Price: $52.54 |
| 25 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 26 |
80-4740-03 |
PLATE-BACKING Price: $56.55 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 29 |
77-6770-03 |
HINGE Price: $112.07 |
| 30 |
32105-23 |
SCREW Price: $0.88 |
| 31 |
93-3751-03 |
COVER-HOPPER Price: $309.87 |
| 33 |
93-6649 |
SEAL-COVER Price: $42.51 |
| 35 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 36 |
120-6592-03 |
PLATE-BACKING,REAR This part replaces 77-6660-03. Price: $21.24 |
| 37 |
77-6650-03 |
PLATE-BACKING Price: $89.59 |
| 38 |
77-6651-03 |
PLATE-BACKING Price: $89.59 |
| 39 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 40 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 41 |
3269-22 |
RIVET-POP Price: $0.61 |
| 45 |
92-6329-03 |
PLATE-STIFFENER Price: $93.53 |
| 46 |
93-4373 |
SEAL-RH Price: $41.66 |
