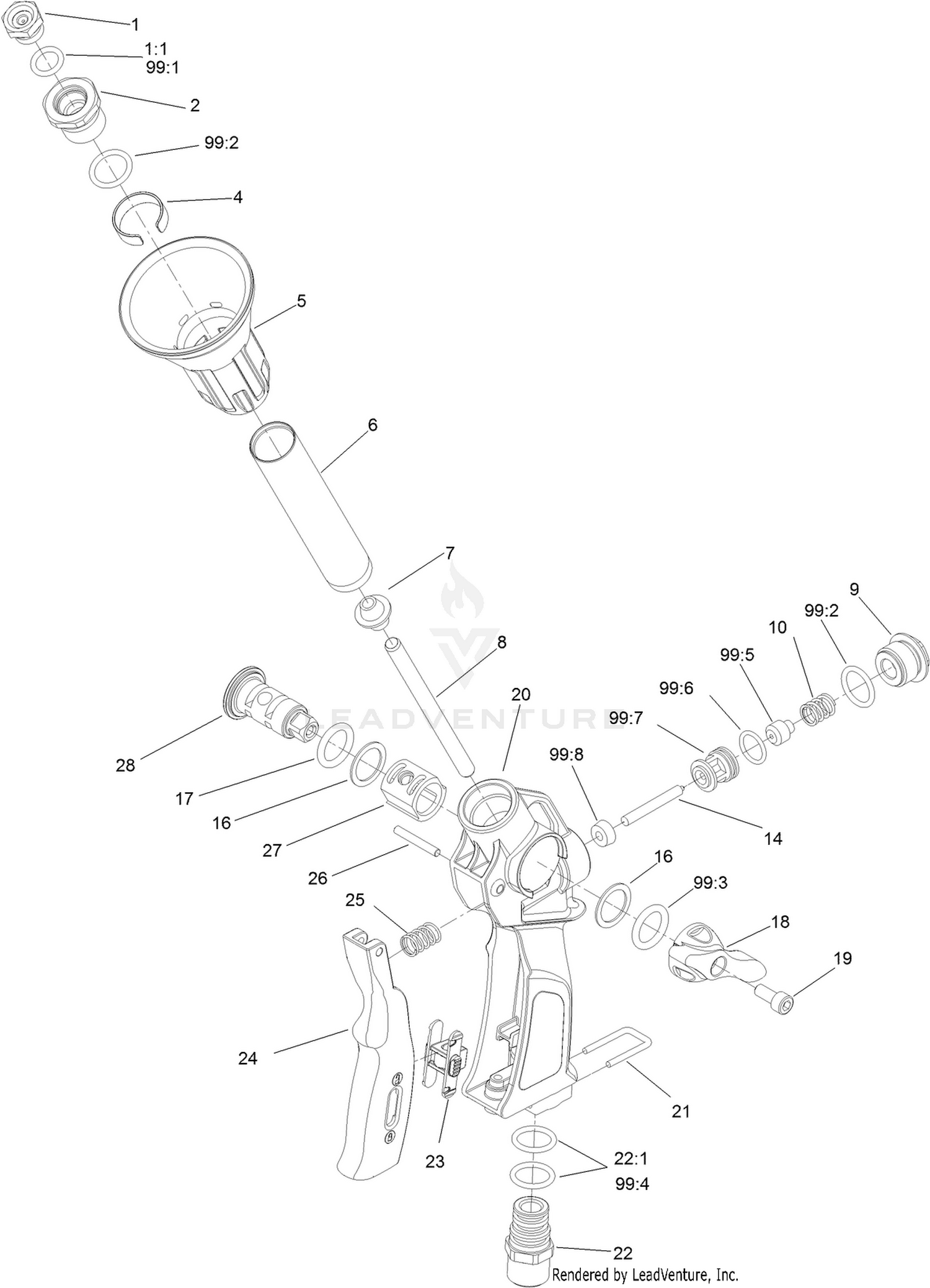

Spray Gun Assembly No. 120-8610
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-4950 | NOZZLE-2.3MM Price: $11.93 |
| 2 | 121-4952 | HEAD-NOZZLE HOLDER Price: $43.48 |
| 4 | 121-4954 | RING-SPACER Price: $2.10 |
| 5 | 121-4955 | SPREADER-MICRO JET Price: $7.85 |
| 6 | 121-4956 | TUBE-SPRAY GUN Price: $68.99 |
| 7 | 121-4957 | CONVEYOR-INNER Price: $38.39 |
| 8 | 121-4958 | TUBE-SPRAY GUN, INNER Price: $21.29 |
| 9 | 121-4959 | DRUM-REGULATION Price: $34.21 |
| 10 | 121-4960 | SPRING-SPRAY GUN Price: $7.21 |
| 14 | 121-4964 | PIN-HINGE Price: $19.41 |
| 16 | 121-4966 | WASHER-TEFLON Price: $2.85 |
| 17 | 121-4967 | O-RING Price: $1.74 |
| 18 | 121-4968 | LEVER-DRUM, SPRAY GUN Price: $4.92 |
| 19 | 121-4969 | SCREW Price: $3.19 |
| 20 | 121-4970 | GRIP-SPRAY GUN Price: $38.52 |
| 21 | 121-4971 | FORK Price: $7.21 |
| 22 | 121-4973 | HOSE-TAIL Price: $25.63 |
| 23 | 121-4974 | SLIDE-LEVER Price: $4.92 |
| 24 | 121-4975 | LEVER-SPRAYGUN Price: $31.20 |
| 25 | 121-4977 | SPRING Price: $8.43 |
| 26 | 121-4978 | PIN-LEVER Price: $1.83 |
| 27 | 121-4979 | COVER-DRUM Price: $50.59 |
| 28 | 121-4980 | DRUM-REGULATION Price: $66.02 |
