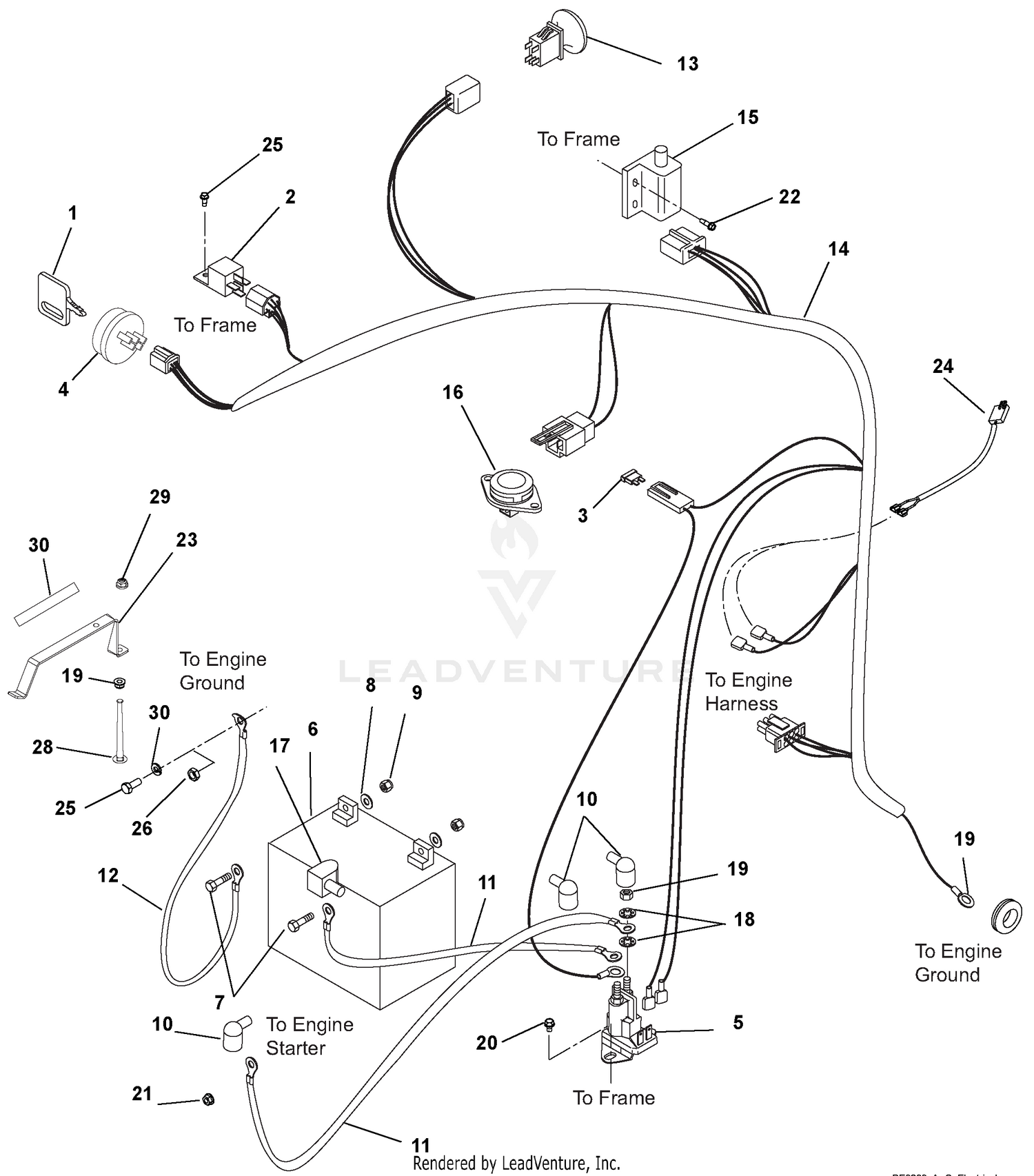

| Ref | Part Number | Description |
|---|
| 1 |
03927000 |
KEY, 03290500 KEYSWITCH Price: $9.45 |
| 2 |
00432101 |
RELAY,SEALED W/DIODE This part replaces 03042800. Price: $19.95 |
| 3 |
08961800 |
FUSE,25 AMP This part replaces 09351100. Price: $3.45 |
| 4 |
03290500 |
KEYSWITCH-IGNITION 3 POS Price: $16.45 |
| 5 |
59223400 |
KIT, SEALED SOLENOID ADAPTER This part replaces 00696900. Price: $55.45 |
| 7 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 8 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 9 |
06500921 |
NUT-KEPS .250-20 ZCC This part replaces 06509200. Price: $1.45 |
| 10 |
07533200 |
BOOT, EYELET TERMINAL Price: $3.45 |
| 11 |
04249800 |
CABLE, POSITIVE 15.00" 6 GA. Price: $22.45 |
| 12 |
04249900 |
CABLE, NEGATIVE 26" 6 GA. Price: $30.95 |
| 13 |
04399600 |
SWITCH, CLUTCH (YELLOW) Price: $20.95 |
| 14 |
03773900 |
HARNESS-WIRING, BBZ Price: $98.45 |
| 15 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 17 |
07505700 |
INSULATOR Price: $8.95 |
| 18 |
06310500 |
WSHR-LOCK INT .31 YWZC Price: $0.45 |
| 19 |
06500923 |
NUT-JAM .312-24 ZCC This part replaces 06536700. Price: $0.95 |
| 20 |
07400125 |
SCR,TAP .25-20X.375 HWH TR ZCC This part replaces 07411600. Price: $0.95 |
| 21 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 22 |
07400038 |
SCR- 12-14X.75 HX W/HD TEK ZC Price: $1.90 |
| 23 |
04385351 |
HOLDDOWN, BATTERY, U1&190CCA Price: Call Us |
| 24 |
03972600 |
HARNESS, CLUTCH Price: $17.95 |
| 28 |
06200308 |
BLT, RHSN .25-20X4.50 G5 ZCC This part replaces 06200211. Price: $2.95 |
| 29 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
