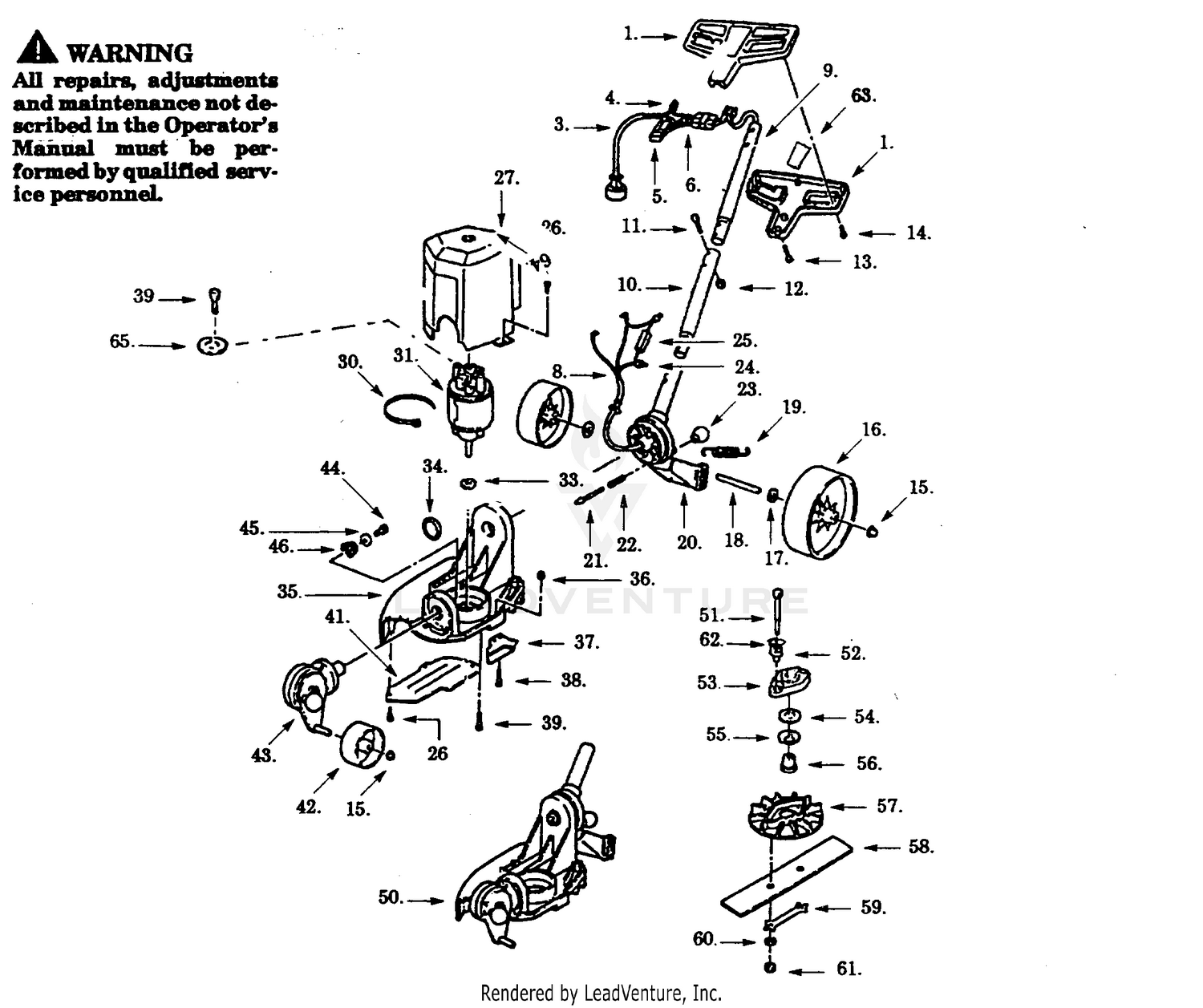

EDGER ASSEMBLY
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 534234225 | Handle Set Price: $3.33 |
| 3 | 534234501 | Power Cord Price: $3.33 |
| 4 | 534561000 | Wire Nut Price: $1.99 |
| 5 | 534193004 | Switch Price: $3.33 |
| 6 | 534336500 | P.C. Board Ass'y. Price: $3.33 |
| 8 | 534337000 | Harness Ass'y. Price: $34.99 |
| 9 | 534838000 | Upper Tube Price: $3.33 |
| 10 | 534838100 | Lower Tube Price: $3.33 |
| 11 | 534829600 | Screw Price: $3.33 |
| 12 | 534828300 | Locknut Price: $3.33 |
| 13 | 534222400 | Screw Price: $1.99 |
| 14 | 534184700 | Screw Price: $1.99 |
| 15 | 534121000 | Push Nut Price: $1.99 |
| 16 | 534236800 | Rear Wheel Price: $4.99 |
| 17 | 534137900 | Washer Price: $1.99 |
| 18 | 534137701 | Rear Axle Price: $3.33 |
| 19 | 534121300 | Spring Price: $0.99 |
| 20 | 534137552 | Rear Swivel Price: Call Us |
| 21 | 534700002 | Swivel Lock Shaft Price: $2.99 |
| 22 | 534710000 | Swivel Lock Spring Price: $1.99 |
| 23 | 534720001 | Knob Price: $1.99 |
| 24 | 534561000 | Terminal Cap Price: $1.99 |
| 25 | 534134500 | Resister Price: $2.99 |
| 26 | 534193800 | Screw Price: $3.33 |
| 27 | 534722032 | Motor Cover Price: $8.99 |
| 30 | 534134700 | Tie Wrap Price: $0.99 |
| 31 | 534225022 | Motor Ass'y. Price: $3.33 |
| 33 | 534136100 | Washer Price: $1.99 |
| 34 | 534780000 | Retaining Ring Price: $0.99 |
| 35 | 534130505 | Deck Frame Price: $3.33 |
| 36 | 534315300 | Locknut Price: $1.99 |
| 37 | 534830000 | Blade Guide Price: $3.99 |
| 38 | 534315200 | Screw Price: $0.44 |
| 39 | 534136401 | Screw Price: $1.99 |
| 41 | 534131515 | Side Guard Plate Price: $5.99 |
| 42 | 534240003 | Front Wheel Price: $3.99 |
| 43 | 534130702 | Front Swivel Ass'y. Price: $3.33 |
| 44 | 534779000 | Screw Price: $1.99 |
| 45 | 534778000 | Washer Price: $0.99 |
| 46 | 534120500 | Front Swivel Spring Price: $1.99 |
| 50 | 534135182 | Edger Frame Ass'y. Price: $3.33 |
| 51 | 534135901 | Screw Price: $1.99 |
| 52 | 534135605 | Insulating Sleeve Price: $3.33 |
| 53 | 534135400 | Clutch Plate Price: $3.33 |
| 54 | 534136300 | Washer Price: $1.99 |
| 55 | 534238900 | Spring Washer Price: $1.99 |
| 56 | 534135500 | Clutch Sleeve Price: $5.99 |
| 57 | 534135305 | Fan Price: $3.33 |
| 58 | 952710528 | Blade Price: Call Us |
| 59 | 534135700 | Lock Strap Price: $1.99 |
| 60 | 534136600 | Lockwasher Price: $1.99 |
| 61 | 534136200 | Locknut Price: $1.99 |
| 62 | 534520022 | Washer Price: $1.99 |
| 63 | 534337100 | Shield Price: $3.33 |
| 64 | 534134600 | Sleeve Price: $3.33 |
