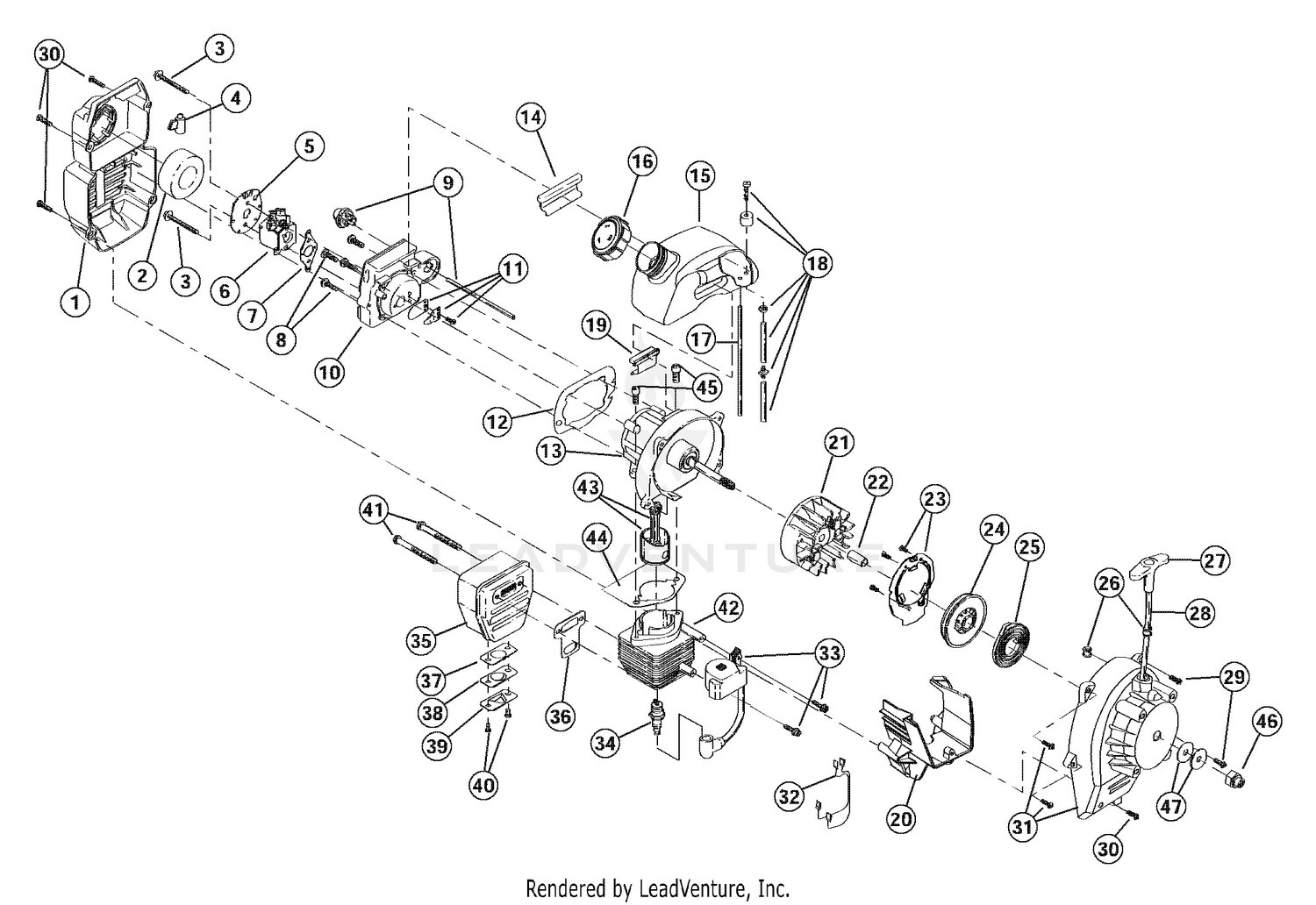

| Ref | Part Number | Description |
|---|
| 2 |
791-180350B |
Air Cleaner Filter Price: $9.24 |
| 3 |
791-180351 |
ASSEMBLY, CARBURETOR MO Not Available Price: |
| 4 |
753-04227 |
CHOKE LEVER Not Available Price: |
| 5 |
753-04419 |
PLATE ASSEMBLY:CHOKE:WV Not Available This part replaces 753-1194. Price: |
| 7 |
791P610675 |
CARBURETOR GASKET This part replaces 791-610675. Price: $3.83 |
| 8 |
791-181860 |
SCREW, 10-24X.75 T-2 Not Available Price: |
| 9 |
791-683974B |
Primer & Hose Assembly Price: $19.93 |
| 11 |
791-684451 |
REED VALVE ASSEMBLY Not Available Price: |
| 12 |
753-1208 |
Carburetor Mount Gasket Price: $15.73 |
| 14 |
791-612134 |
PAD, REAR MOUNT PAD Not Available Price: |
| 16 |
753-04084 |
Fuel Cap Not Available Price: |
| 17 |
791-181086 |
Fuel Return Line Price: $6.20 |
| 18 |
791-682039 |
Fuel Line Assembly Price: $14.59 |
| 19 |
791-145308 |
PAD, FRONT MOUNTING Not Available Price: |
| 21 |
753-05240 |
Flywheel Assembly This part replaces 791-182736. Price: $67.61 |
| 22 |
750-04260 |
Spacer This part replaces 753-04748. Price: $8.20 |
| 23 |
753-04705 |
RETAINER ASSEMBLY-PULLE Not Available Price: |
| 25 |
753-04286 |
Recoil Spring Price: $24.35 |
| 26 |
791-611061 |
Rope Guide Price: $9.62 |
| 27 |
631-04164B |
Pull Handle This part replaces 791-181079. Price: $3.38 |
| 28 |
791-613103 |
Rope Price: $8.97 |
| 29 |
1964 |
SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
| 30 |
791-181345 |
Cover Screw Price: $3.75 |
| 32 |
791-182402 |
LEAD, WIRE 10.5" B Not Available Price: |
| 33 |
753-04336 |
PULSE MDL ASSEMBLY:W/HD Not Available Price: |
| 34 |
791-610311B |
Spark Plug Price: $13.23 |
| 36 |
753-04619 |
Exhaust Gasket Price: $8.45 |
| 37 |
753-04689 |
SCREEN-SPA Not Available Price: |
| 38 |
753-04690 |
SEAL Not Available Price: |
| 39 |
753-04691 |
HOOD Not Available Price: |
| 40 |
791-145569 |
Screw Price: $9.02 |
| 41 |
710-04188A |
Muffler Screws This part replaces 753-04620. Price: $3.63 |
| 43 |
753-04367 |
PISTON ASSEMBLY:W/ROD/RIN Not Available Price: |
| 44 |
753-04182 |
Cylinder Gasket Price: $14.79 |
| 45 |
791-182723 |
Cylinder Bolt Price: $4.02 |
| 46 |
791-181524 |
NUT, DRIVE IMPELLE Not Available Price: |
| 47 |
9162-1 |
Washer This part replaces 791-182368. Price: $3.91 |
