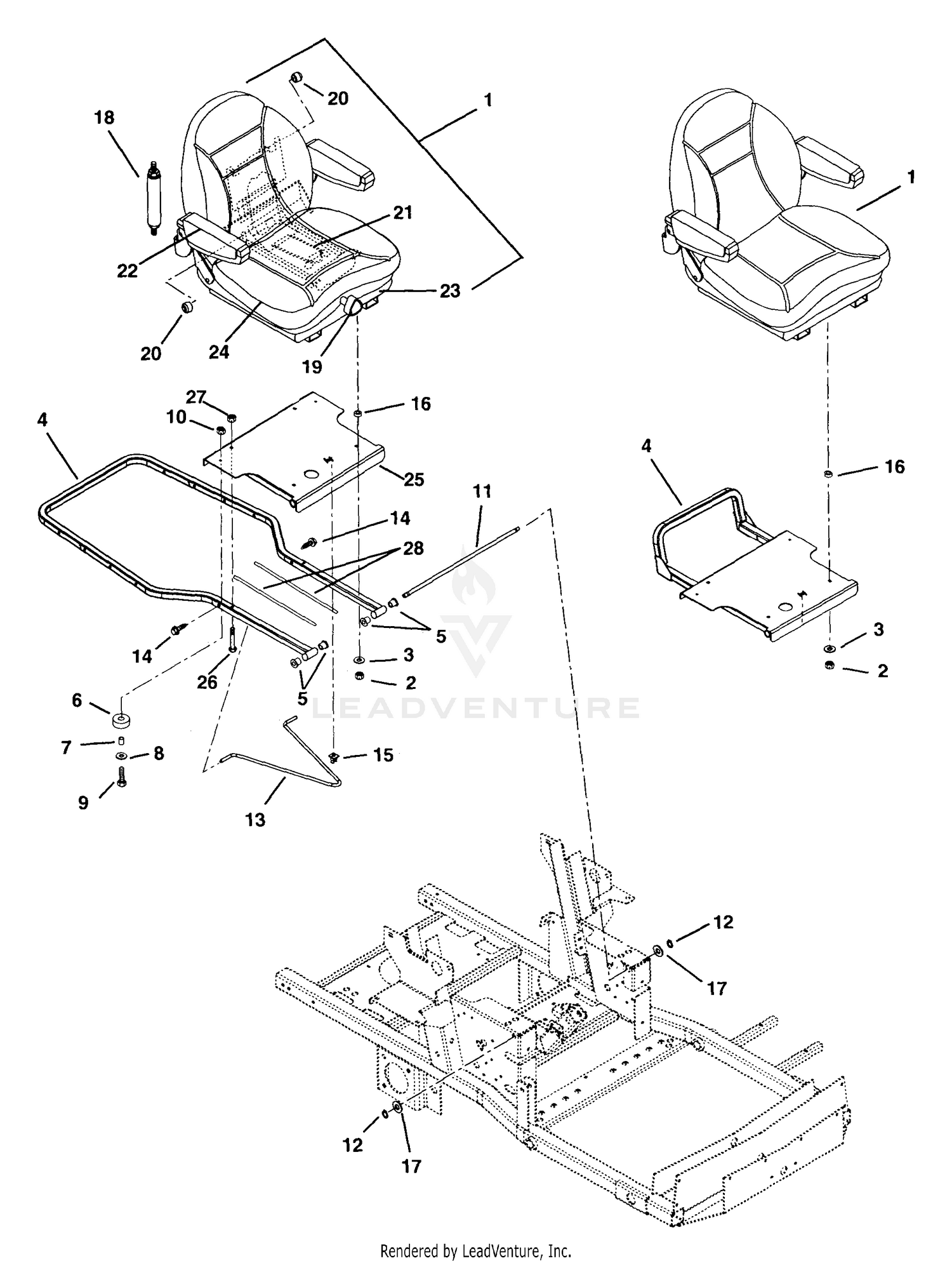

| Ref | Part Number | Description |
|---|
| 2 |
06500817 |
NUT,NYL M8-1.25 G8.8 ZCC This part replaces 06538500. Price: $1.45 |
| 3 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 5 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY This part replaces 034738. Price: $2.45 |
| 6 |
07521800 |
BMPR,SEAT This part replaces 024357. Price: $12.95 |
| 7 |
08708300 |
BSHG-SLV .265X.375X.250 ST This part replaces 034723. Price: $11.45 |
| 8 |
06401124 |
WSHR- FLT .312X.734X.065 ZCC This part replaces 06435800. Price: $0.95 |
| 9 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 10 |
06500812 |
NUT,LK-CTR .25-20 GA ZCC This part replaces 06529700. Price: $0.45 |
| 11 |
09245400 |
ROD - SEAT FRAME PIVOT Price: $101.95 |
| 12 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 16 |
05508900 |
BSHG-SLV .377X.624X.235 This part replaces 039145. Price: $8.45 |
| 17 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 25 |
03259951 |
PLATE, SEAT (200 VERT.) This part replaces 09249353. Price: $99.95 |
| 26 |
07056300 |
BLT, .38-16X1.50 RIB NECK YWZC Price: Call Us |
| 27 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
