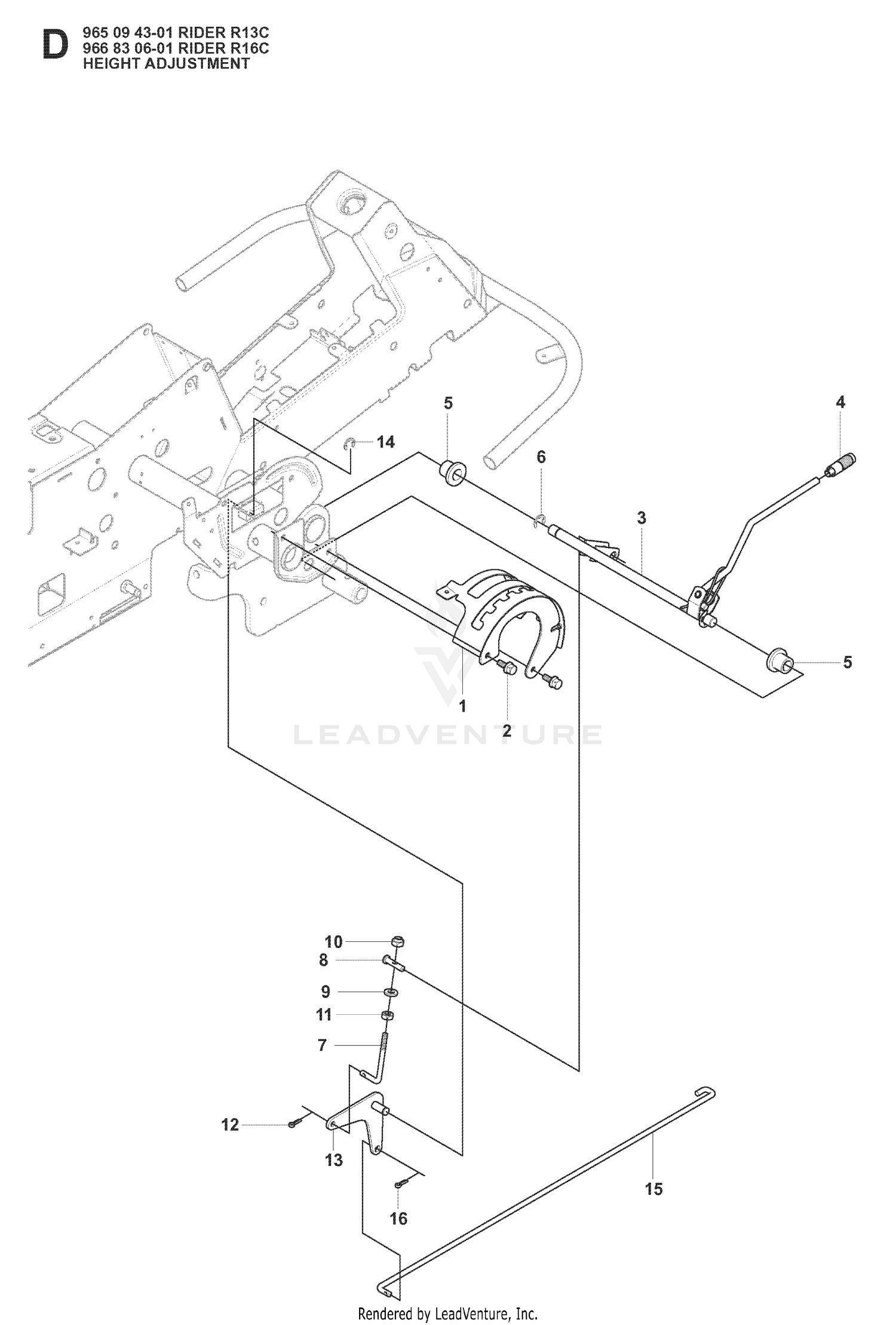

HEIGHT ADJUSTMENT
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535501401 | CONTROL PLATE Price: $25.99 |
| 2 | 506570103 | BOLT Price: $3.99 |
| 3 | 120-0404 | BRACKET-HIGH HOC (LH) Price: $71.73 |
| 3 | 504734501 | HEIGHT ADJUSTER Price: $74.99 |
| 4 | 120-0405 | BRACKET-HIGH HOC (RH) Price: $71.73 |
| 4 | 588164101 | Handles This part replaces 506542001. Price: $11.99 |
| 5 | 119-0626 | SHIM-ROLLER Price: $3.23 |
| 6 | 106-9758 | SCREW-CARR Price: $2.99 |
| 6 | 735312220 | CIRCLIP Price: $3.99 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 506908201 | LINKAGE Price: $11.99 |
| 8 | 112-7451 | SCREW-TAP Price: $2.17 |
| 8 | 506784601 | Pins Price: $4.99 |
| 9 | 48-9220 | WASHER-PLAIN Price: $0.87 |
| 9 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 10 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 11 | 322-16 | SCREW-HH Price: $3.39 |
| 11 | 731231801 | NUT Price: $3.99 |
| 12 | 721618301 | Split Pin Price: $1.99 |
| 13 | 544227701 | LINK HEIGHT ADJUSTMENT Price: $14.99 |
| 14 | 735311520 | RETAINING RING Price: $2.99 |
| 15 | 544227001 | CONNECTION ROD Price: $19.99 |
| 16 | 721618301 | Split Pin Price: $1.99 |
