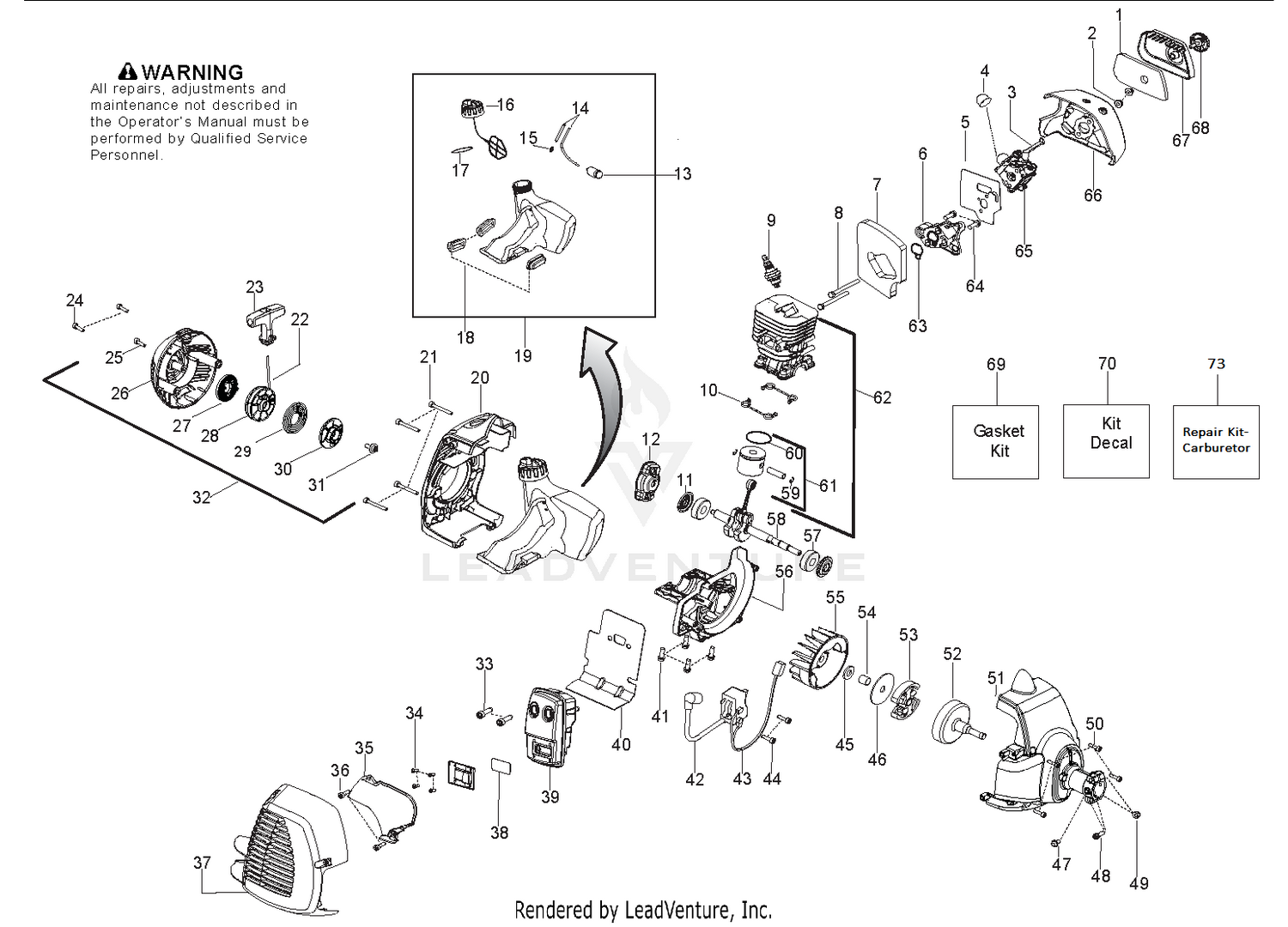

ENGINE
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530150253 | FILTER AIRBOX Price: $2.99 |
| 2 | 530016101 | NUT Price: $4.99 |
| 3 | 595015001 | CHOKE LEVER Price: $3.99 |
| 4 | 530058709 | PURGE BULB ZAMA Price: $6.99 |
| 5 | 545008084 | KIT GASKET 28CC Price: $17.99 |
| 6 | 530035596 | CARB ADAPTOR Price: $7.99 |
| 7 | 545008084 | KIT GASKET 28CC Price: $17.99 |
| 8 | 530016400 | BOLT CARB ADAPTOR Price: $3.99 |
| 9 | 503235112 | BPMR6A NGK SPARK PLUG Price: $8.99 |
| 10 | 545008084 | KIT GASKET 28CC Price: $17.99 |
| 11 | 545008084 | KIT GASKET 28CC Price: $17.99 |
| 12 | 503873305 | STARTER PAWL BRIDGE Price: $22.99 |
| 13 | 577167201 | ASSY FUEL PICKUP PRE FLUSHED Price: $6.99 |
| 14 | 530069599 | KIT-LINE(FUEL) Price: $5.99 |
| 15 | 530023877 | FUEL LINE FITTING Price: $4.99 |
| 16 | 578931503 | FUEL CAP ASSY Price: $6.99 |
| 17 | 545008084 | KIT GASKET 28CC Price: $17.99 |
| 18 | 530059780 | ISOLATOR FUEL TANK Price: $4.99 |
| 19 | 545180870 | KIT FUEL TANK HVA Price: $37.99 |
| 20 | 576153201 | REAR SHROUD ORANGE Price: $11.99 |
| 22 | 545008079 | KIT ROPE Price: $9.99 |
| 23 | 545043204 | STARTER HANDLE Price: $6.99 |
| 24 | 530016426 | SCREW M5-0.8X30MM Price: $4.99 |
| 25 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 26 | 525455501 | HOUSING STARTER Price: $11.99 |
| 27 | 545008087 | KIT STARTER SPRING Price: $7.99 |
| 28 | 585530301 | KIT PULLEY/SPRING Price: $9.99 |
| 29 | 578465101 | DRIVER SPRING Price: $4.99 |
| 30 | 579366201 | PULLEY STARTER DRIVE Price: $5.99 |
| 31 | 530016468 | SCREW Price: $2.99 |
| 32 | 579063101 | ASSY STARTER HSG HVA Price: $22.99 |
| 33 | 530058982 | BOLT MUFFLER Price: $2.99 |
| 34 | 545227101 | SCREW 6-19X.437 Price: $2.99 |
| 35 | 530150440 | SHIELD HEAT Price: $5.99 |
| 36 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 37 | 576215001 | KIT MUFFLER GUARD HVA Price: $12.99 |
| 38 | 545030501 | KIT SPARK ARRESTOR SCREEN Price: $6.99 |
| 39 | 574031502 | KIT MUFFLER W/CATALYST Price: $34.99 |
| 40 | 545008084 | KIT GASKET 28CC Price: $17.99 |
| 41 | 530015897 | SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 42 | 545046701 | IGNITION MODULE MBU-7 Price: $49.99 |
| 43 | 530039227 | ASSY MODULE LEAD WIRE Price: $6.99 |
| 44 | 530016456 | SCREW M4 X .70 TT 16MM Price: $2.99 |
| 45 | 530016463 | WASHER CLUTCH Price: $5.99 |
| 46 | 530094189 | WASHER-CLUTCH Price: $5.99 |
| 47 | 530015805 | SCREW-10-14 X 1/2 PLASTITE Price: $2.99 |
| 48 | 530015774 | SCREW-10-24 X 1" (UNC) Price: $3.99 |
| 49 | 530015768 | LOCKNUT-HEX 10-24 Price: $3.99 |
| 50 | 530016456 | SCREW M4 X .70 TT 16MM Price: $2.99 |
| 51 | 545205201 | ASSY FAN HOUSING HVA 1" Price: $24.99 |
| 52 | 580446601 | KIT DRUM CLUTCH ASSY Price: $24.99 |
| 53 | 530055122 | ASSEMBLY CLUTCH Price: $17.99 |
| 54 | 530057852 | SPACER FLYWHEEL Price: $8.99 |
| 55 | 530039242 | FLYWHEEL Price: $29.99 |
| 56 | 577929502 | CRANKCASE CAST 128 Price: $34.99 |
| 57 | 545013401 | BEARING RADIAL BALL (6201) Price: $5.99 |
| 58 | 585415401 | CRANKSHAFT Price: $44.99 |
| 59 | 530015162 | WRIST PIN RET. Price: $2.99 |
| 60 | 575227901 | RING PISTON Price: $5.99 |
| 61 | 545081814 | KIT - PISTON Price: $32.99 |
| 62 | 545008083 | KIT PISTON CYL Price: $99.99 |
| 63 | 545008084 | KIT GASKET 28CC Price: $17.99 |
| 64 | 530015897 | SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 65 | 545081848 | KIT CARB Price: $37.99 |
| 66 | 576459001 | AIRBOX HVA 128 HUSKY GRAY Price: $6.99 |
| 67 | 530057846 | COVER-AIR BOX Price: $7.99 |
| 68 | 530059796 | KNOB ASSY AIRBOX COVER Price: $4.99 |
| 70 | 545003352 | KIT DECAL Price: $5.99 |
| 73 | 599604201 | Gaskets Price: $2.99 |
