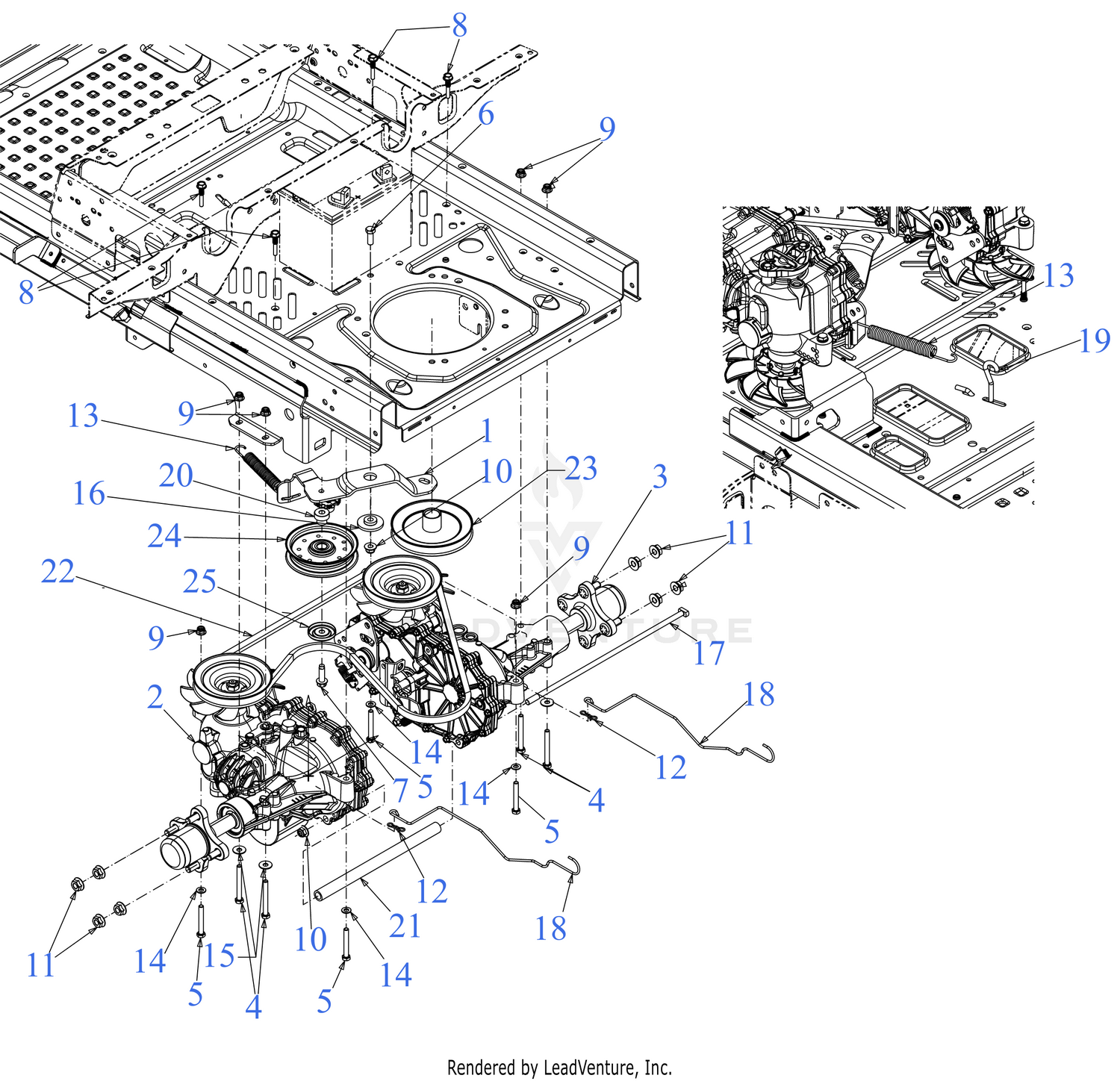

| Ref | Part Number | Description |
|---|
| 1 |
603Z05256 |
IDLER BRACKET ASSEMBLY This part replaces 903-05256. Price: $36.94 |
| 4 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 5 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 6 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 7 |
710-1315 |
SCREW 3/8-16 X1.250 Price: $3.90 |
| 8 |
711-06112 |
BELT KEEPER ROD .25 x 1.585 Price: $3.74 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-04065 |
NUT Price: $3.68 |
| 11 |
712-05160 |
HEX FLANGE NUT 7/16-14 Price: $4.59 |
| 12 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 13 |
732-05390 |
EXTENTION SRING .75 DIA. x 6.85 Price: $19.46 |
| 14 |
736-0264 |
FLAT WASHER Price: $5.99 |
| 15 |
736-0371 |
FLAT WASHER Price: $3.94 |
| 16 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 17 |
738-04251A |
SUPPORT TUBE ROD Price: $12.54 |
| 18 |
747-05657B |
HYDRO BYPASS ROD Price: $13.12 |
| 19 |
747-06074 |
IDLER SPRING HOOK Price: $20.19 |
| 20 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 21 |
750-06147A |
TRANSMISSION SPACER .75OD x 11.31 Price: $20.70 |
| 22 |
954-04317A |
TRANSMISSION DRIVE BELT A x 67 Price: $46.63 |
| 23 |
756-05001B |
TRANMISSION DRIVE PULLEY Price: $44.55 |
| 24 |
756-05042 |
IDLER PULLEY 4.25 DIA Price: $25.54 |
| 25 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
