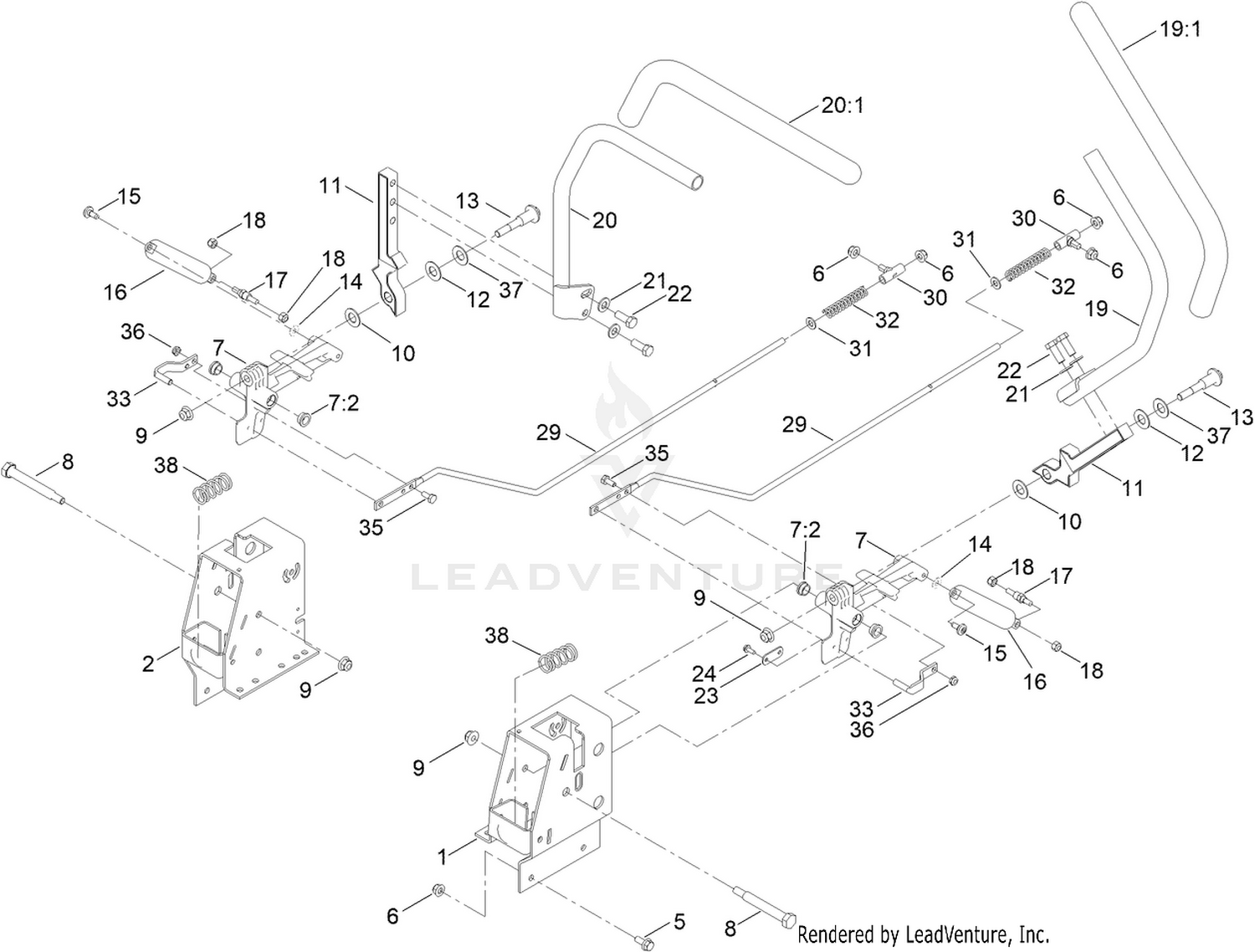

Motion Control Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5614-03 | BOX-CONTROL, LH Price: $27.15 |
| 2 | 136-5613-03 | BOX-CONTROL, RH Price: $27.15 |
| 5 | 139-2598 | SCREW-HHF Price: $0.56 |
| 6 | 119-4041 | NUT-HF Price: $0.48 |
| 7 | 119-3470 | ACTUATOR ARM ASM Price: $17.50 |
| 8 | 115-5099 | BOLT-PIVOT Price: $2.32 |
| 9 | 119-4042 | NUT-HF, NI Price: $0.69 |
| 10 | 120-2273 | WASHER-NYLON Price: $1.54 |
| 11 | 136-5570-05 | ARM-CONTROL Price: $22.86 |
| 12 | 117-1240 | WASHER Price: $1.27 |
| 13 | 139-2556 | BOLT-PIVOT Price: $2.83 |
| 14 | 119-8952 | WASHER Price: $0.77 |
| 15 | 120-7950 | SCREW-SHOULDER Price: $1.79 |
| 16 | 132-6853 | DAMPER-NON CAVITATING Price: $22.72 |
| 17 | 138-7215 | STUD-DAMPER Price: $1.46 |
| 18 | 137-3088 | NUT-HEX Price: $0.39 |
| 19 | 133-7055 | HANDLE-CONTROL, LH Price: $41.09 |
| 20 | 133-7057 | HANDLE-CONTROL, RH Price: $41.09 |
| 21 | 115-1166 | WASHER-FLAT Price: $3.08 |
| 22 | 139-2600 | SCREW-HH Price: $0.45 |
| 23 | 140-3458 | PLATE-STOP,HYDRO Price: $0.66 |
| 24 | 139-1713 | SCREW-TAPTITE Price: $0.21 |
| 29 | 138-7217 | ROD-HYDRO Price: $8.29 |
| 30 | 138-7218 | MOUNT-ROD, HYDRO Price: $7.95 |
| 31 | 120-9683 | WASHER-PLAIN Price: $0.25 |
| 32 | 138-7252 | SPRING-COMPRESSION Price: $1.12 |
| 33 | 121-1753 | PIN-ROD, HYDRO Price: $3.52 |
| 35 | 137-3041 | SCREW-HH Price: $0.39 |
| 36 | 137-3091 | NUT-HEX Price: $0.34 |
| 37 | 119-8925 | WASHER-BELLEVILLE Price: $0.80 |
