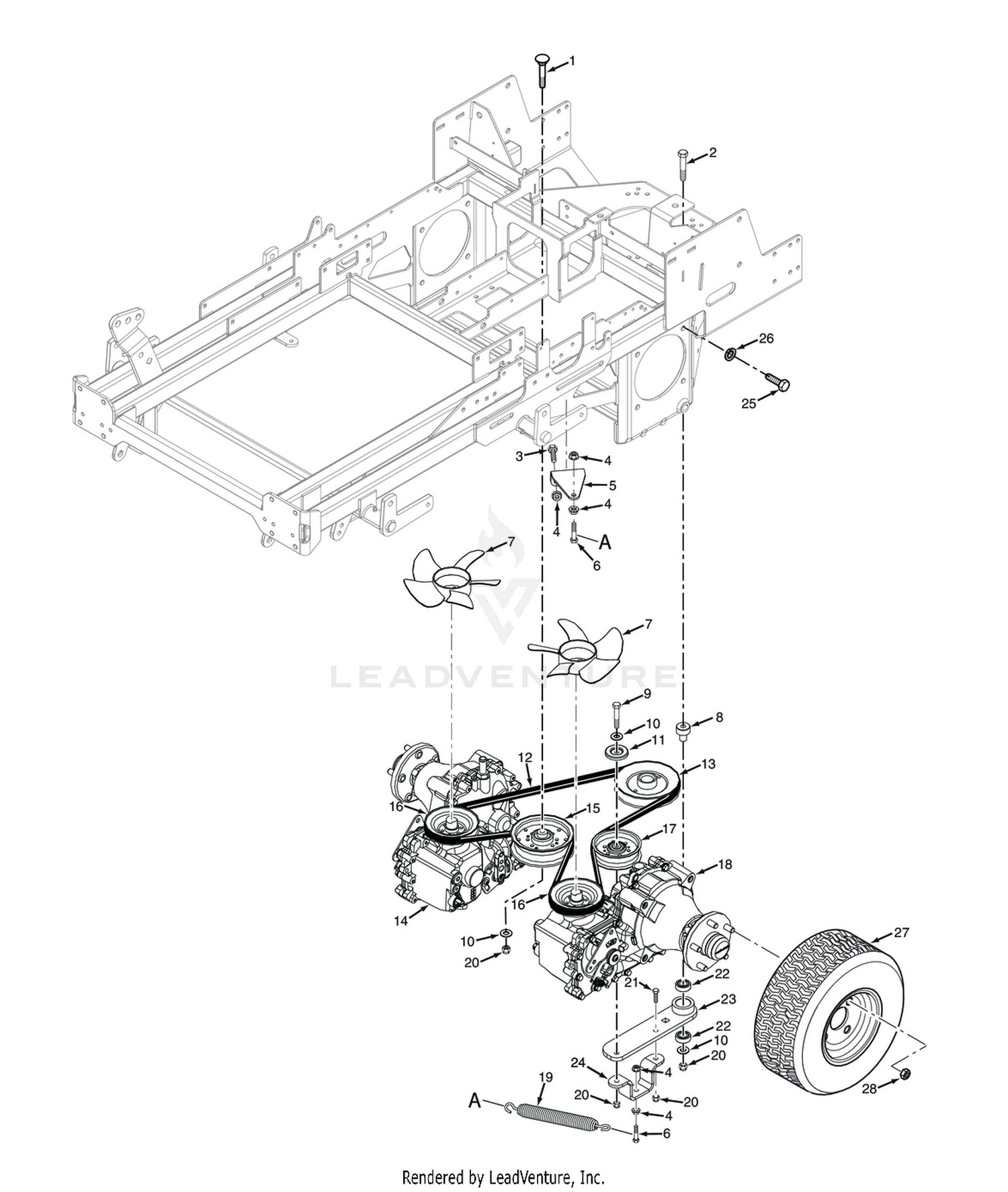

| Ref | Part Number | Description |
|---|
| 1 |
04003-21 |
Carriage Bolt, 3/8-16 x 2-1/2" Price: Call Us |
| 2 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 3 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 4 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 5 |
425385 |
Mounting Bracket, Spring - Idler Arm Price: Call Us |
| 6 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 7 |
HG71906 |
Kit, Fan / Pulley Price: Call Us |
| 8 |
43504 |
Pivot, Idler Long - 52" Price: Call Us |
| 9 |
04001-22 |
Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 10 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 11 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 12 |
483165 |
Belt, Pump Drive STT Price: Call Us |
| 13 |
484098 |
Pulley, 5.80" Dia. - 1.125 Bore Price: Call Us |
| 14 |
483798 |
Transaxle, RH Price: Call Us |
| 15 |
483215 |
Idler Pulley, Belt Clutch Price: Call Us |
| 16 |
HG71906 |
Kit, Fan / Pulley Price: Call Us |
| 17 |
484128 |
Pulley, 4" Dia. Idler Price: Call Us |
| 18 |
483797 |
Transaxle, LH Price: Call Us |
| 19 |
484202 |
Spring, Pump Drive Price: Call Us |
| 20 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 21 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 22 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 23 |
462259 |
Idler Arm Assembly Price: Call Us |
| 24 |
425386 |
Mounting Bracket, Idler Price: Call Us |
| 25 |
04001-70 |
Bolt, Hex Head 1/2-13 x 1-1/4" Price: Call Us |
| 26 |
04030-06 |
Lockwasher, 1/2" Spring Price: Call Us |
| 27 |
484024 |
Wheel Assembly, 24 x 12-12 4-Ply (5-Hole) Price: Call Us |
